Steering Control Module: Service and Repair
P/S Control Module Removal and InstallationRemoval
1) Disconnect negative (-) cable at battery.
2) Remove instrument panel undercover.
3) Remove side sill inner front scuff.
4) Remove dash side trim.
5) Remove center console box.
6) Turn over floor carpet on passenger's side.

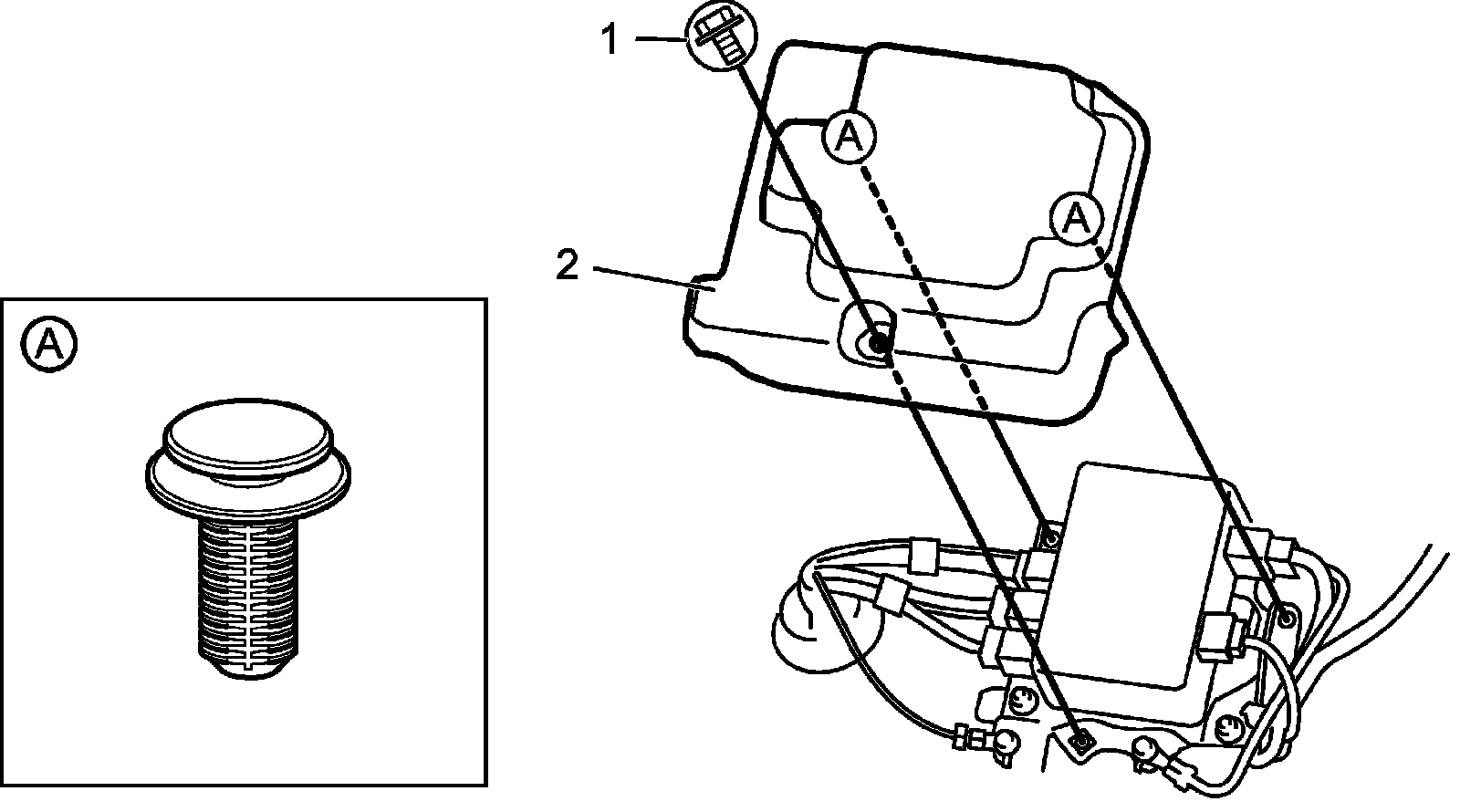

7) Remove bolt (1) and P/S control module cover (2).

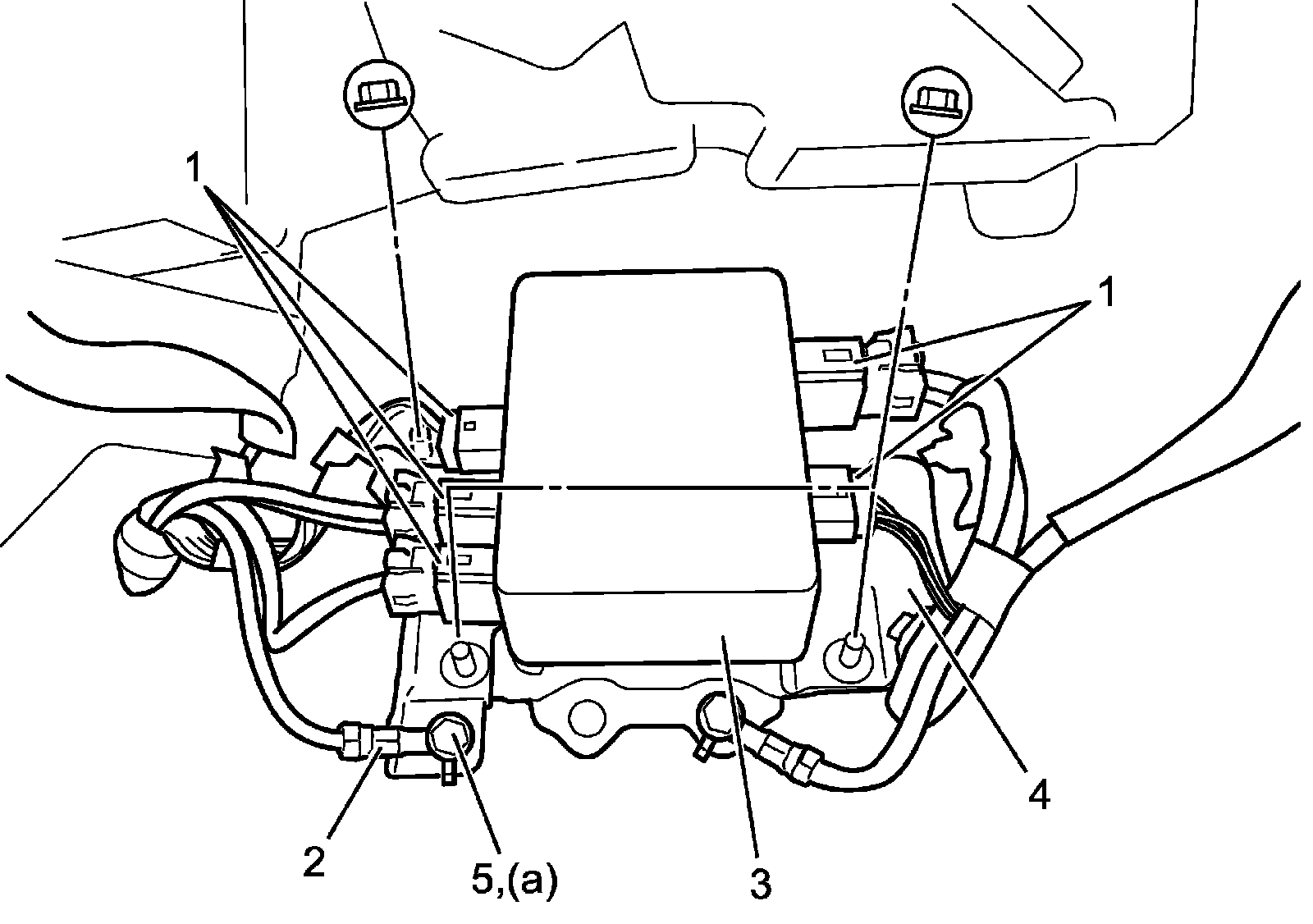

8) Disconnect connectors (1) and ground wire (2) from P/S control module (3).
9) Remove nuts and remove P/S control module with bracket (4) from floor panel.
Installation
Reverse removal procedure, noting the following point.
^ Tighten ground bolt to specified torque.
Tightening torque
Ground bolt: 5.0 Nm (0.50 kg-m, 4.0 lbf-ft)
