Differential Lock Hydraulic Fluid Temperature Sensor: Testing and Inspection

Coupling Air Temperature Sensor Inspection
Reference: Coupling Air Temperature Sensor Removal and Installation

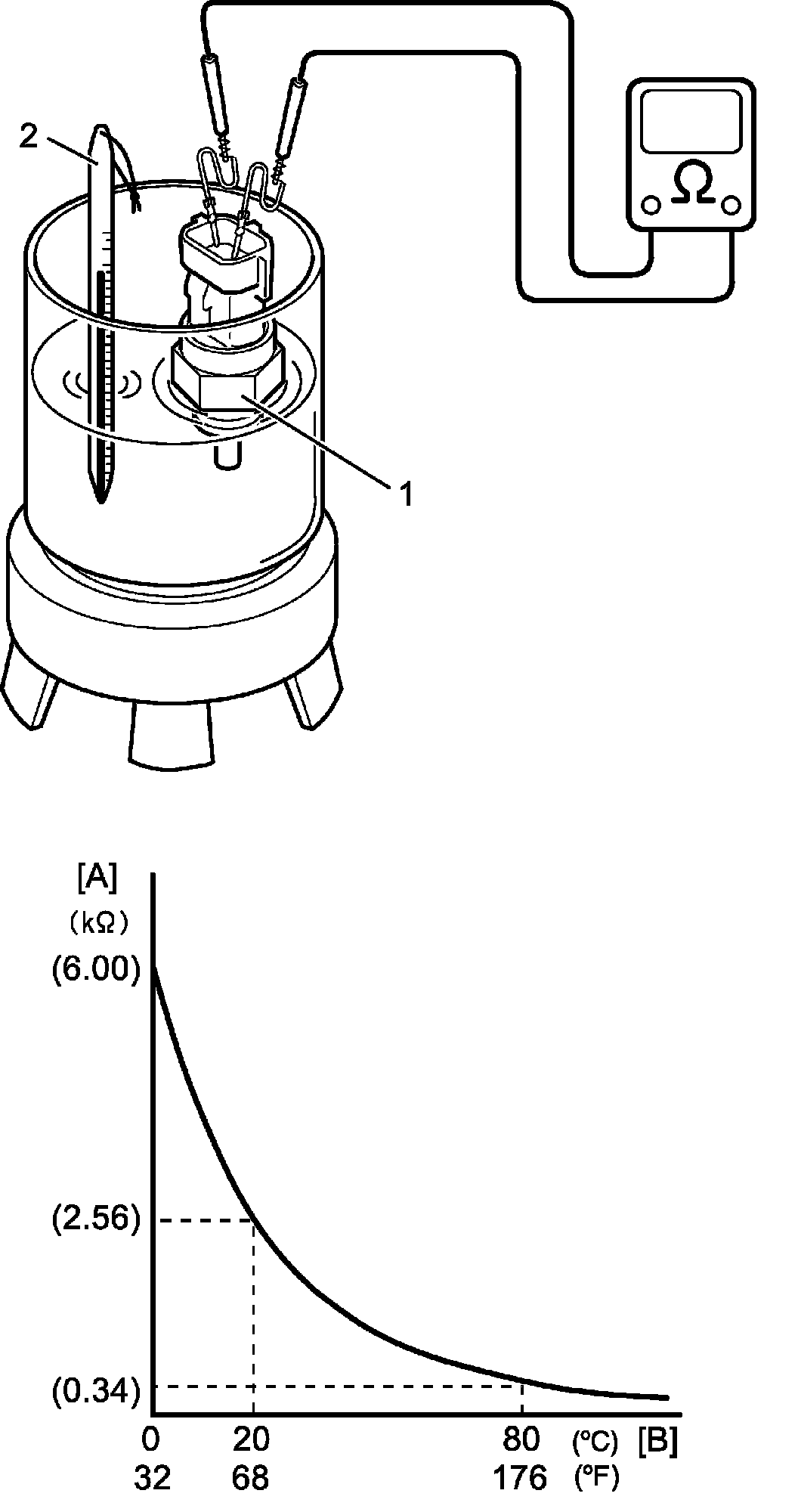

Warm coupling air temperature sensor (1), as shown in figure, and make sure resistance value decreases as temperature rises.
Replace air temperature sensor if measured resistance does not show such characteristic as shown.
