Temperature Sensor/Switch: Service and Repair
Transfer Oil Temperature Sensor Removal and InstallationRemoval
1) Hoist vehicle.
2) Drain transfer oil.

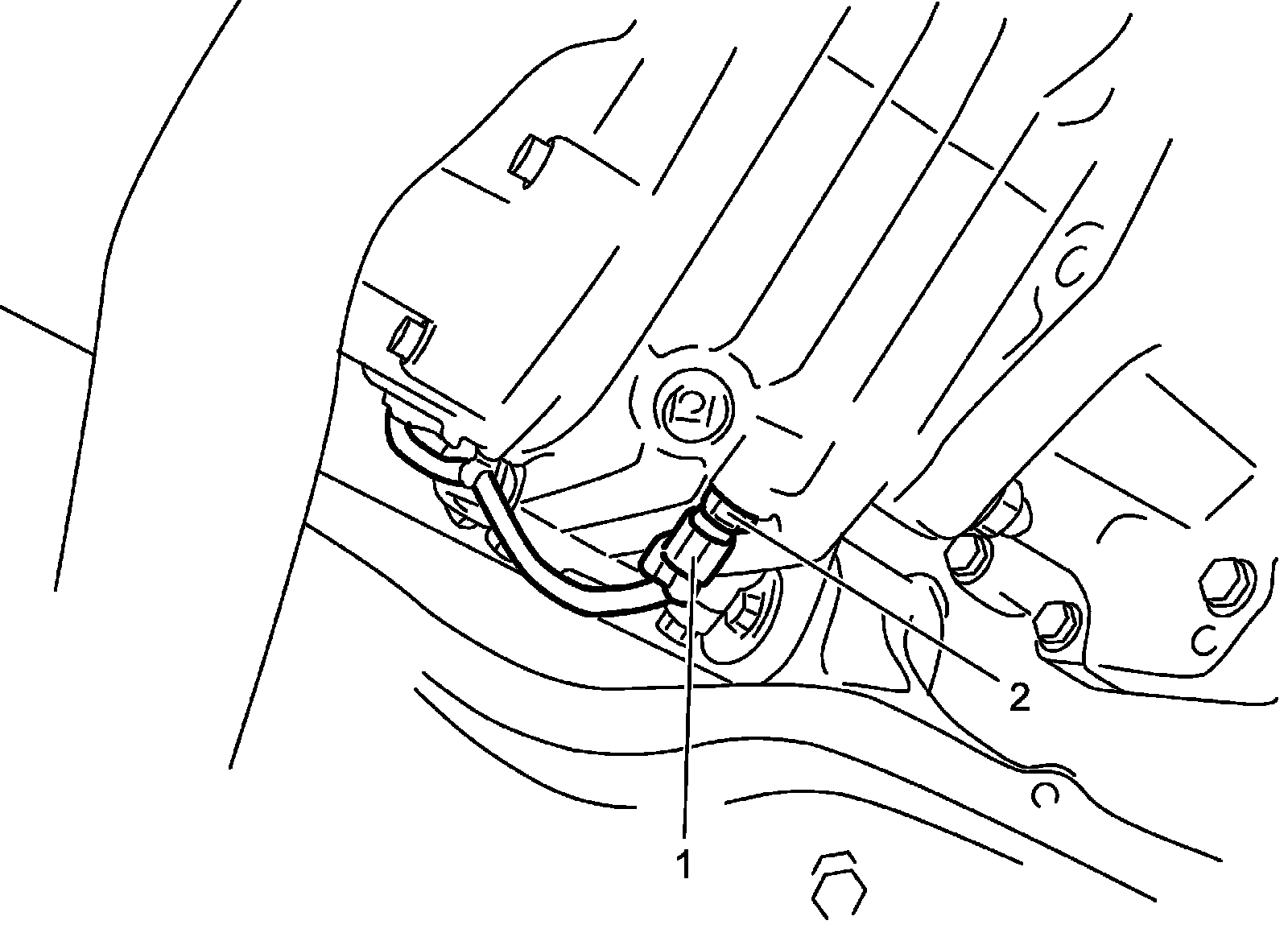

3) Disconnect transfer oil temperature sensor connector (1), and remove transfer oil temperature sensor (2).
Installation
Reverse removal procedure, noting the following points:
^ Use new oil seal.
^ Tighten transfer oil temperature sensor to specified torque.
Tightening torque
Transfer oil temperature sensor: 12 Nm (1.2 kg-m, 9.0 lbf-ft)
