Temperature Sensor/Switch: Testing and Inspection

Transfer Oil Temperature Sensor Inspection
Reference: Transfer Oil Temperature Sensor Removal and Installation

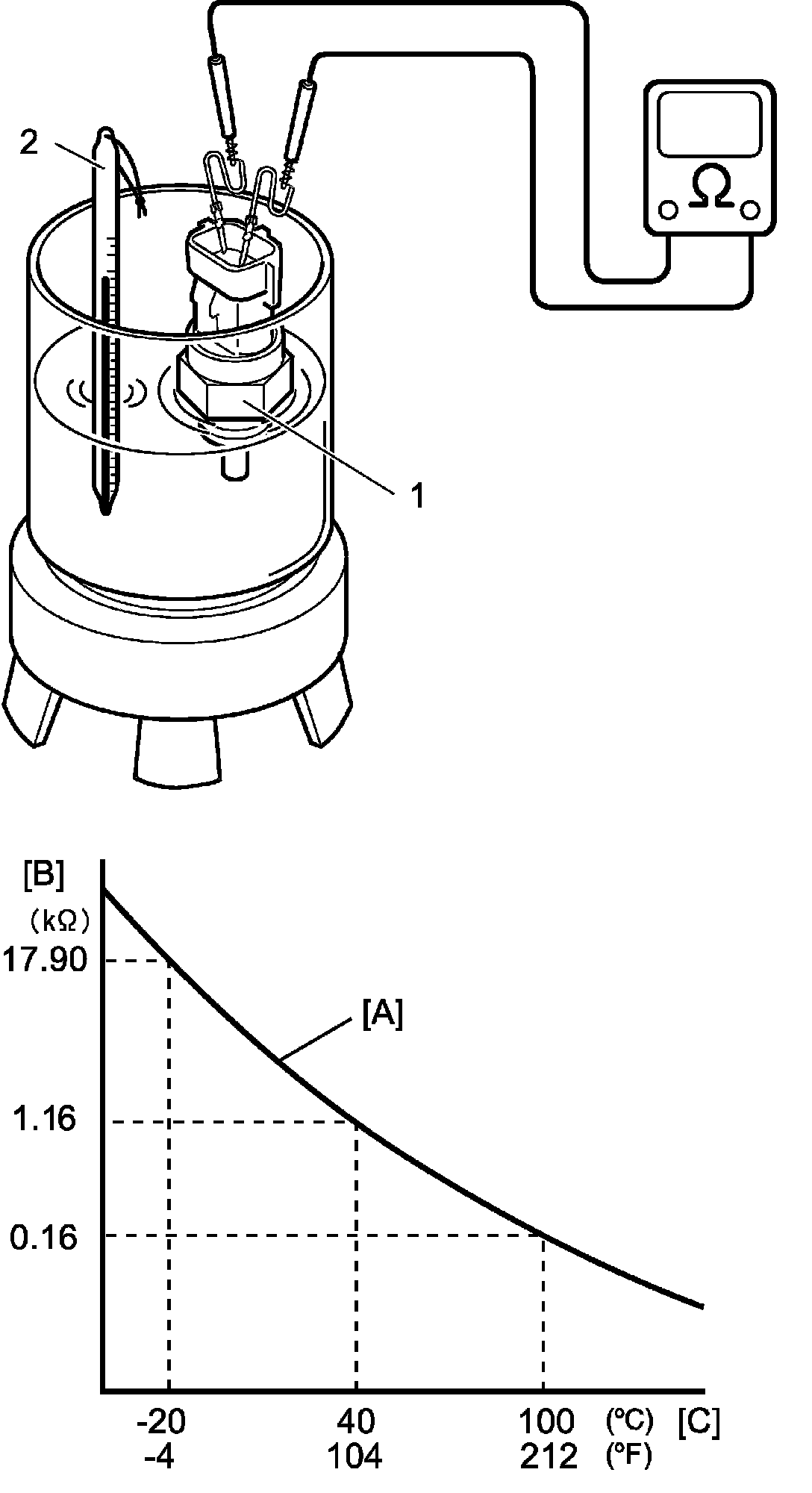

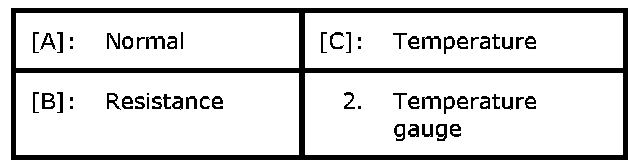

Warm coupling air temperature sensor (1), as shown in figure, and make sure resistance value decreases as temperature rises.

CAUTION:
Be careful not to subject transfer oil temperature sensor to excessive shock by dropping it. If it has been subjected to excessive shock, it should be replaced.
