Back Window Glass: Service and Repair

Back Window Glass Components

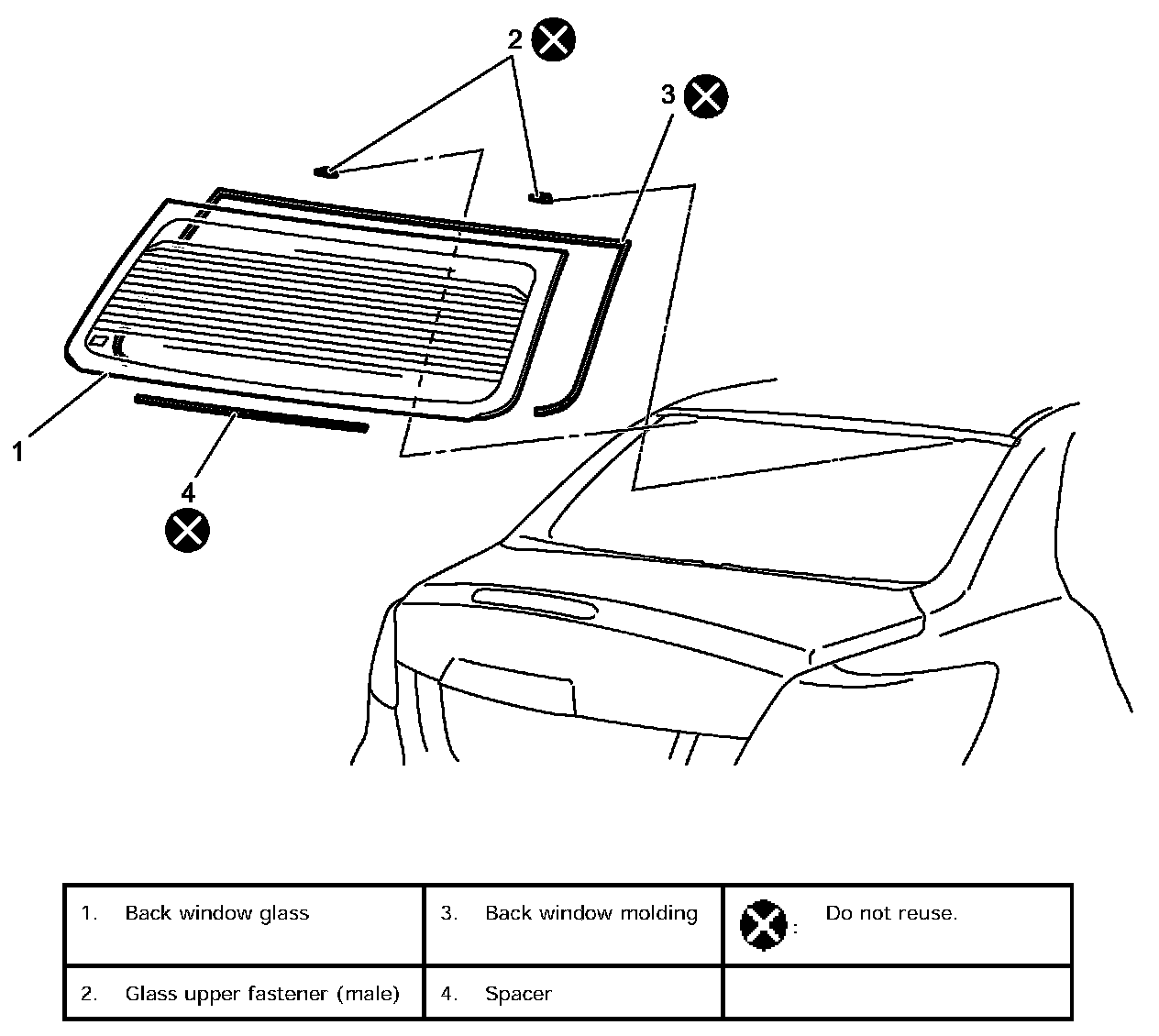

Back Window Glass Components:

Back Window Glass Removal And Installation

Preparation, removal and installation procedure are basically the same as Windshield Removal and Installation, however note the following points.
- Be careful not damage to connectors during removal and installation.
- Apply adhesive (1) as shown in figure.
- Locate two glass upper fasteners (female) (5) so that they will fit with male fasteners when attaching glass.

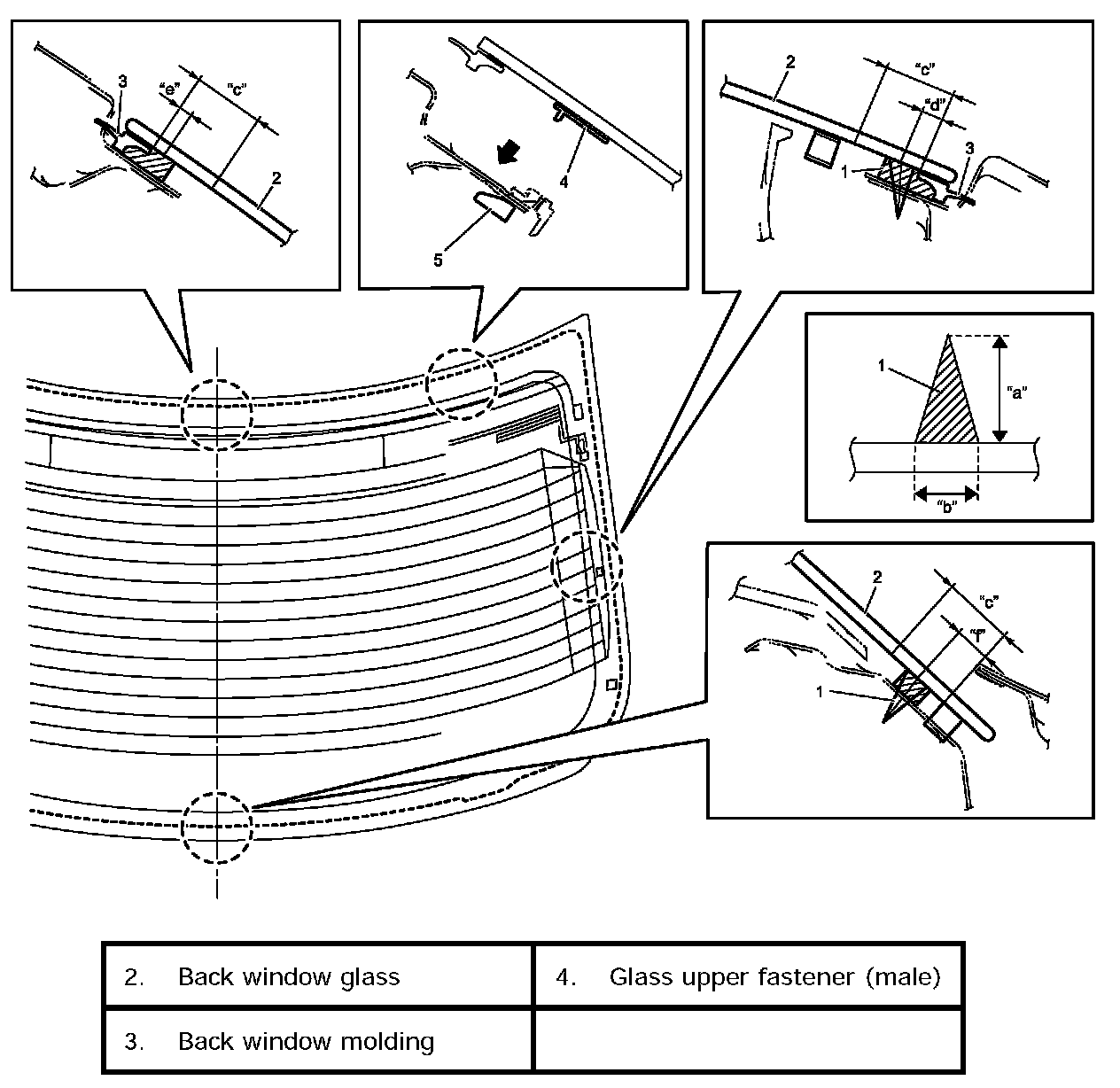

Adhesive amount and application area on back window
Height of adhesive "a": Approx. 13.0 mm (0.51 in.)
Width of adhesive "b": Approx. 6.0 mm (0.24 in.)
Width of primer "c": Approx. 17.0 mm (0.67 in.)
Application area "d": Approx. 4.9 mm (0.19 in.), "e": Approx. 3.3 mm (0.13 in.), "f": Approx. 8.5 mm (0.33 in.)
