Front Door Window Glass: Service and Repair

Front Door Components


Front Door Componenst:






Front Door Glass Removal and Installation

Removal

1. Lower window glass to about 30 mm (1.18 in) from the lower edge of window.
2. Disconnect negative (-) cable at battery.

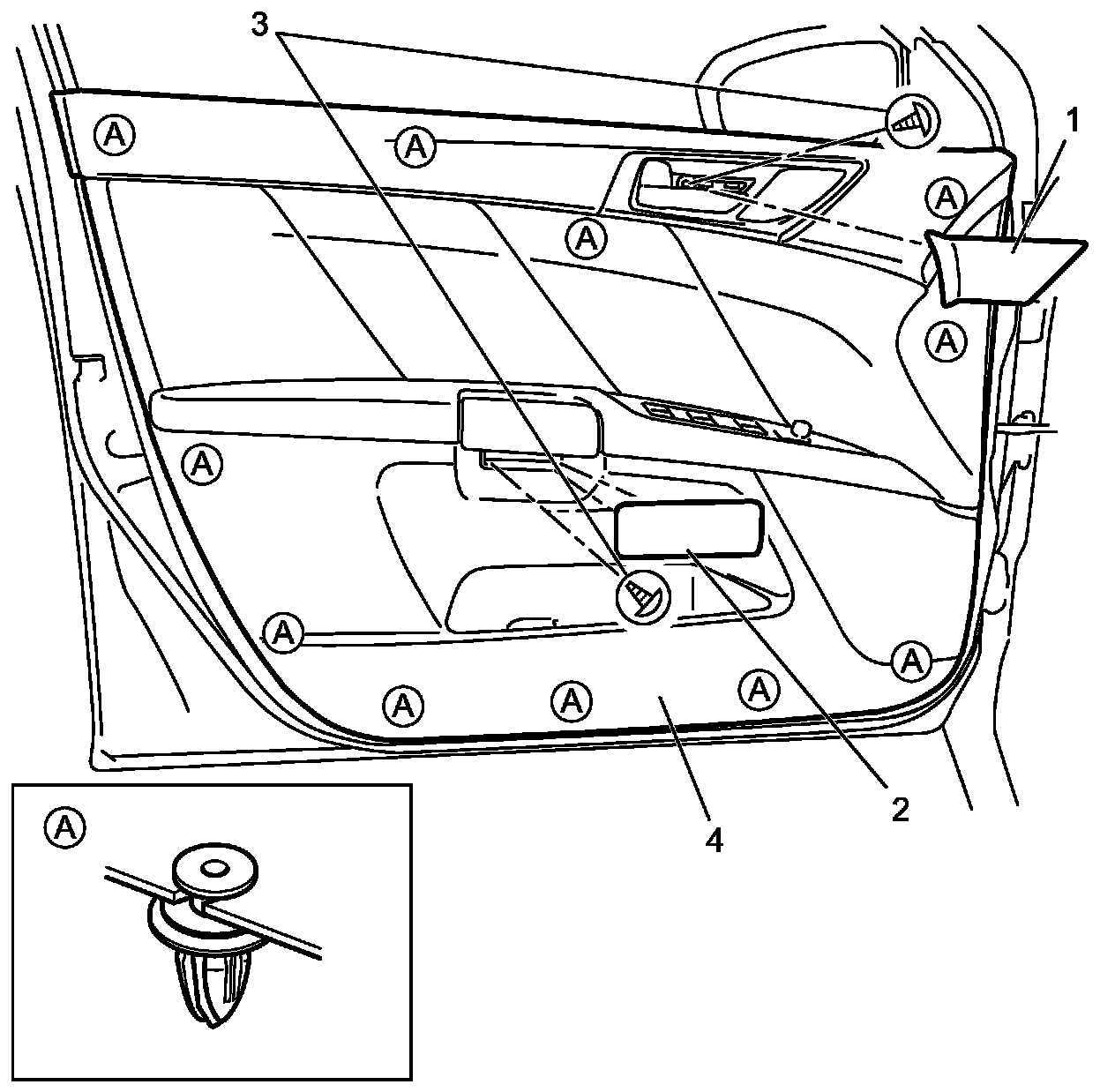

3. Remove inside handle cap (1) and trim cap (2).
4. Remove screws (3), clips, and remove door trim (4) by pulling it toward you.
5. Disconnect connectors of door harness.

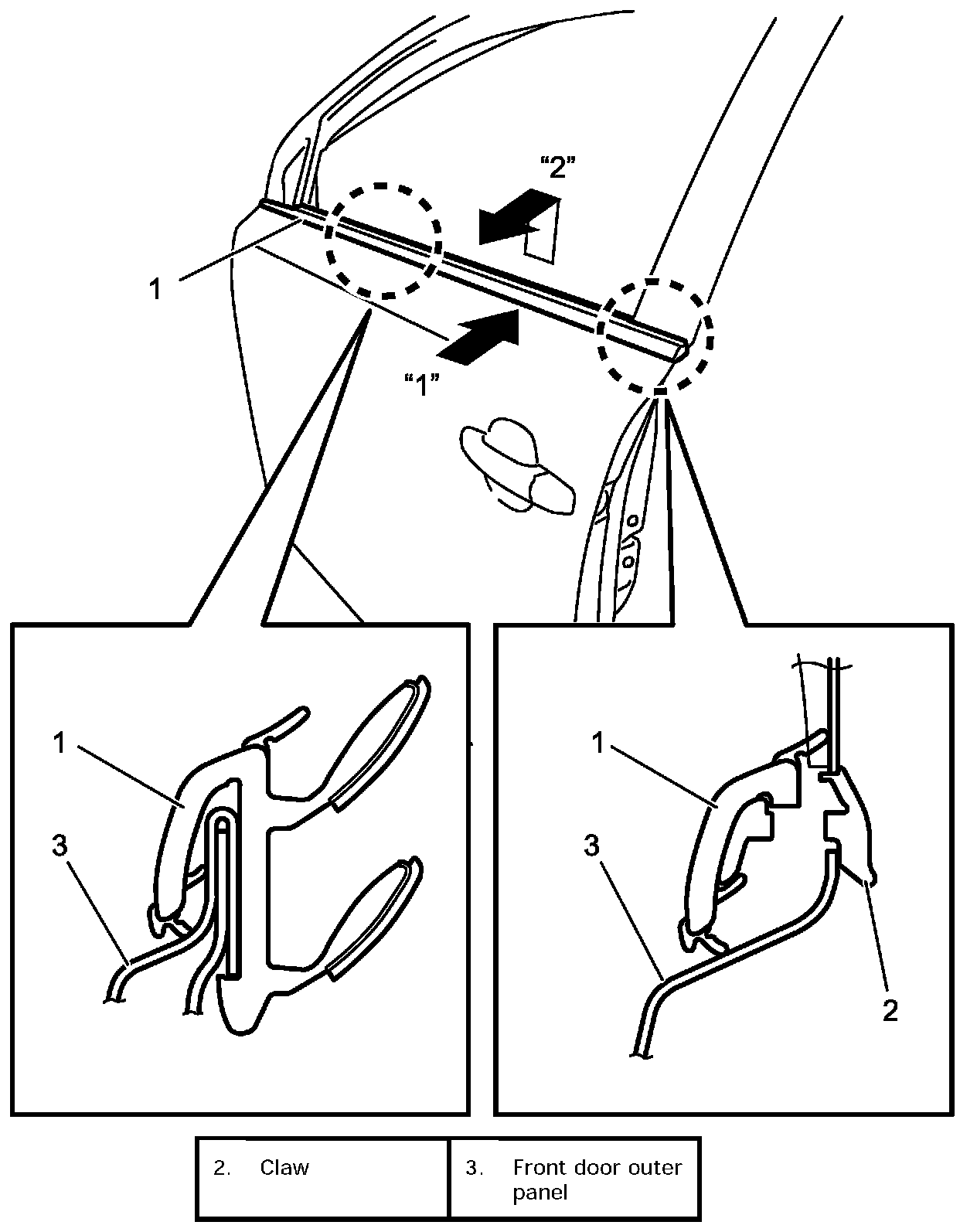

6. Remove front outer weather -strip (1) by moving it in arrow directions in order ("1" to "2") as shown in figure.

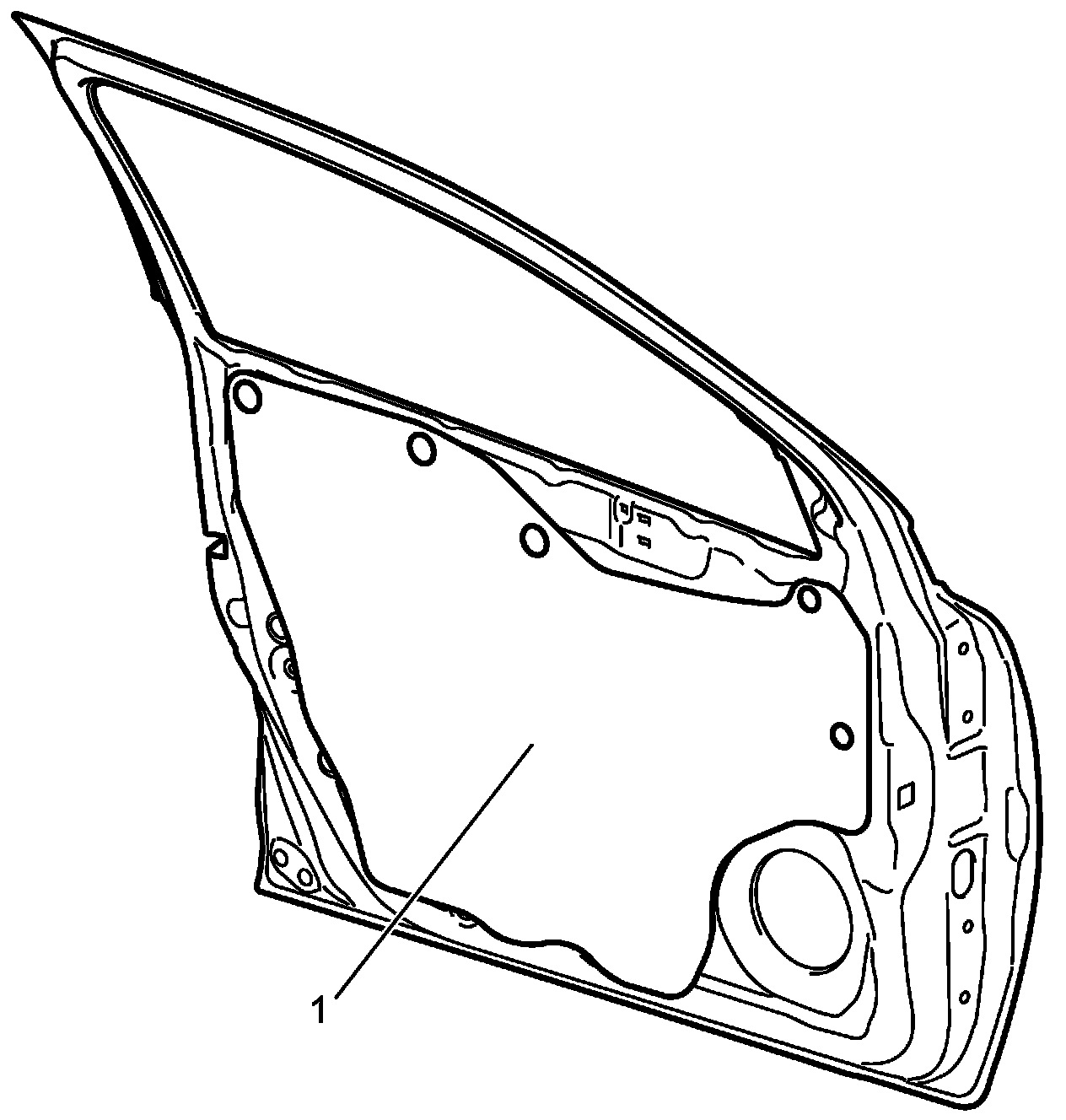

7. Remove door sealing cover (1).

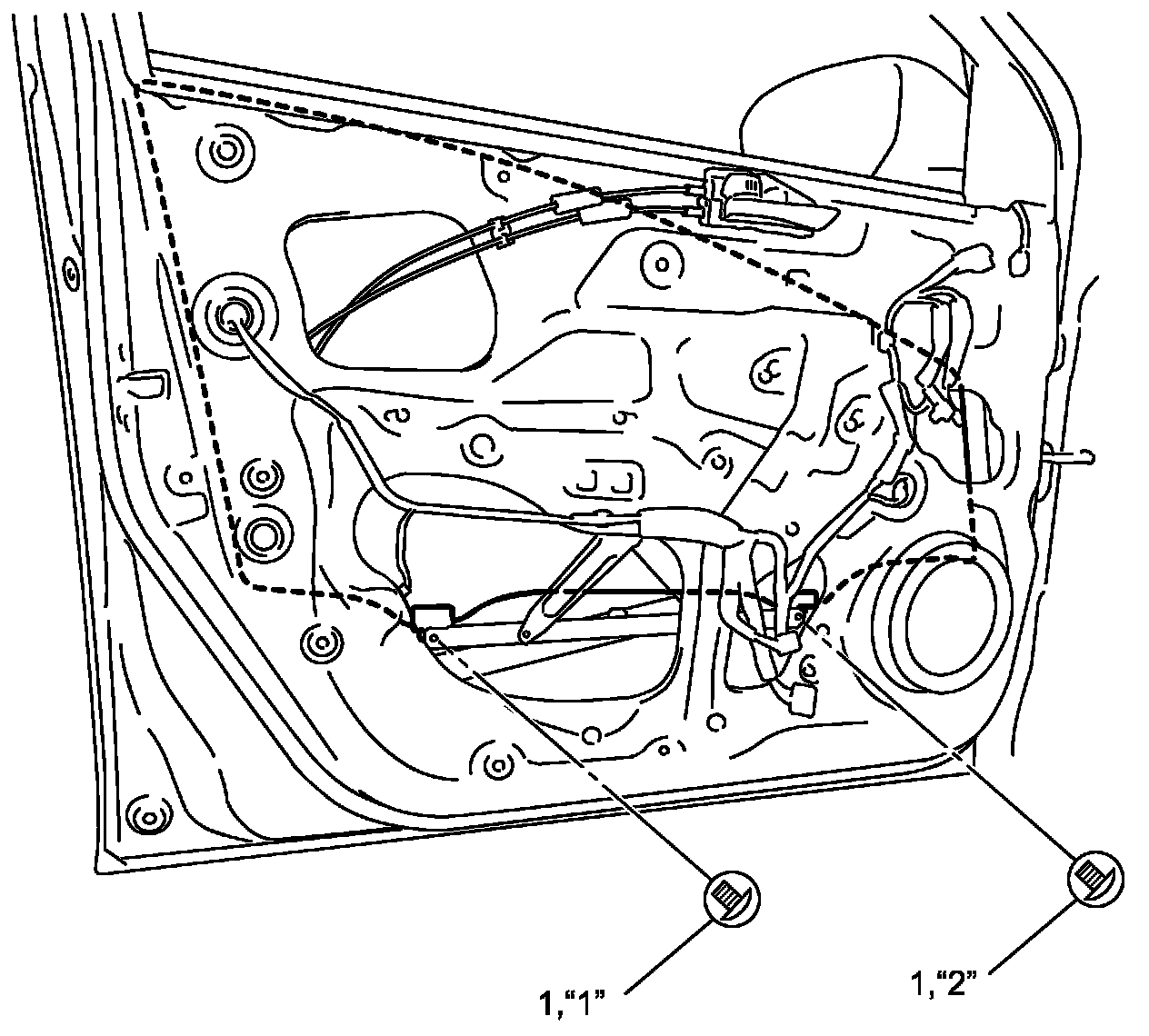

8. Remove screws (1) and remove front door glass (2) by moving it in arrow directions in order ("1" to "2") as shown in figure.







Installation

Reverse removal procedure noting the following points.
- Tighten each part to specified torque referring to Front Door Components.

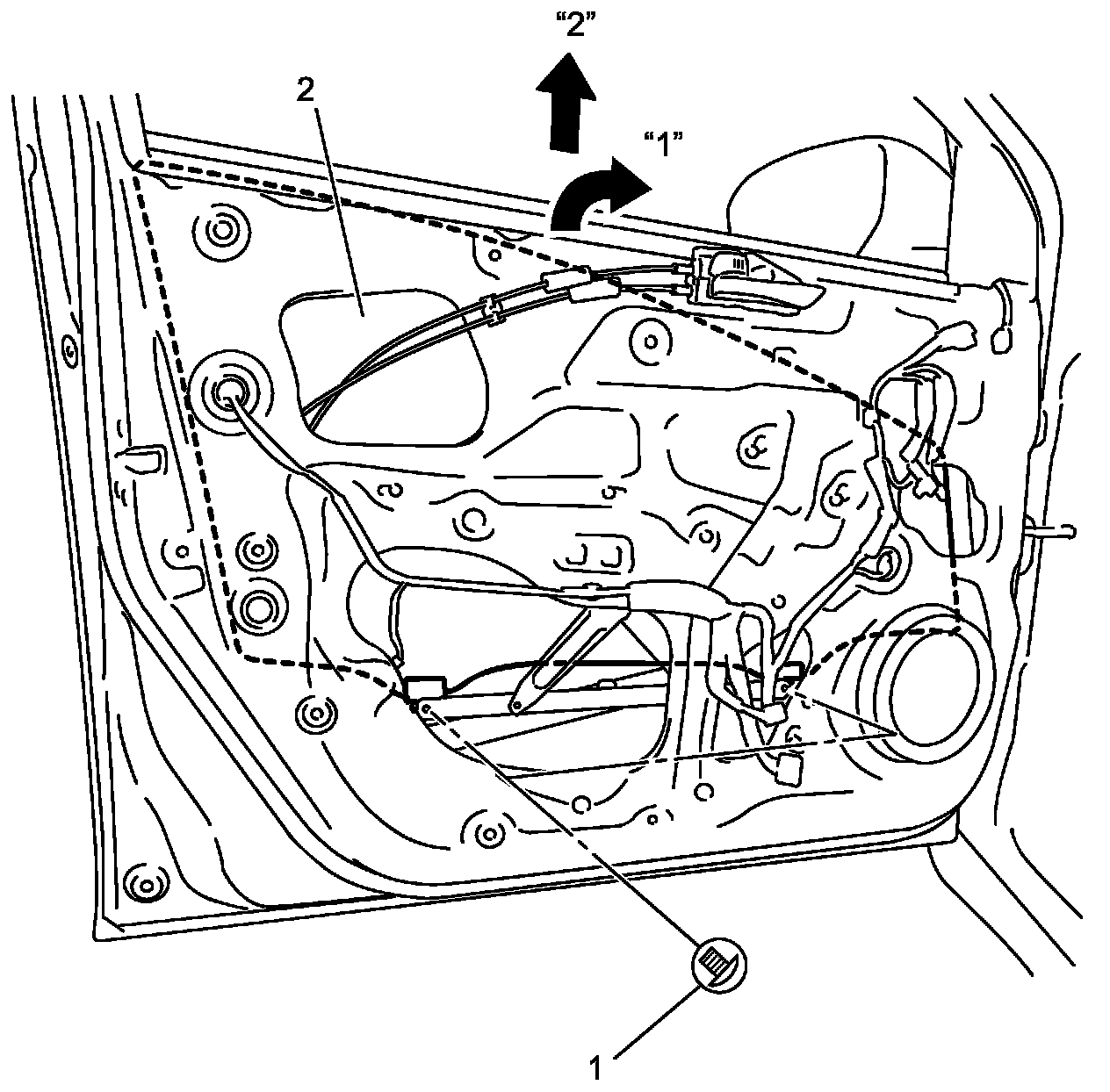

- Tighten front door glass screws (1) in order ("1" to "2") as shown in figure.







- If glass run is deformed, replace it with new one.

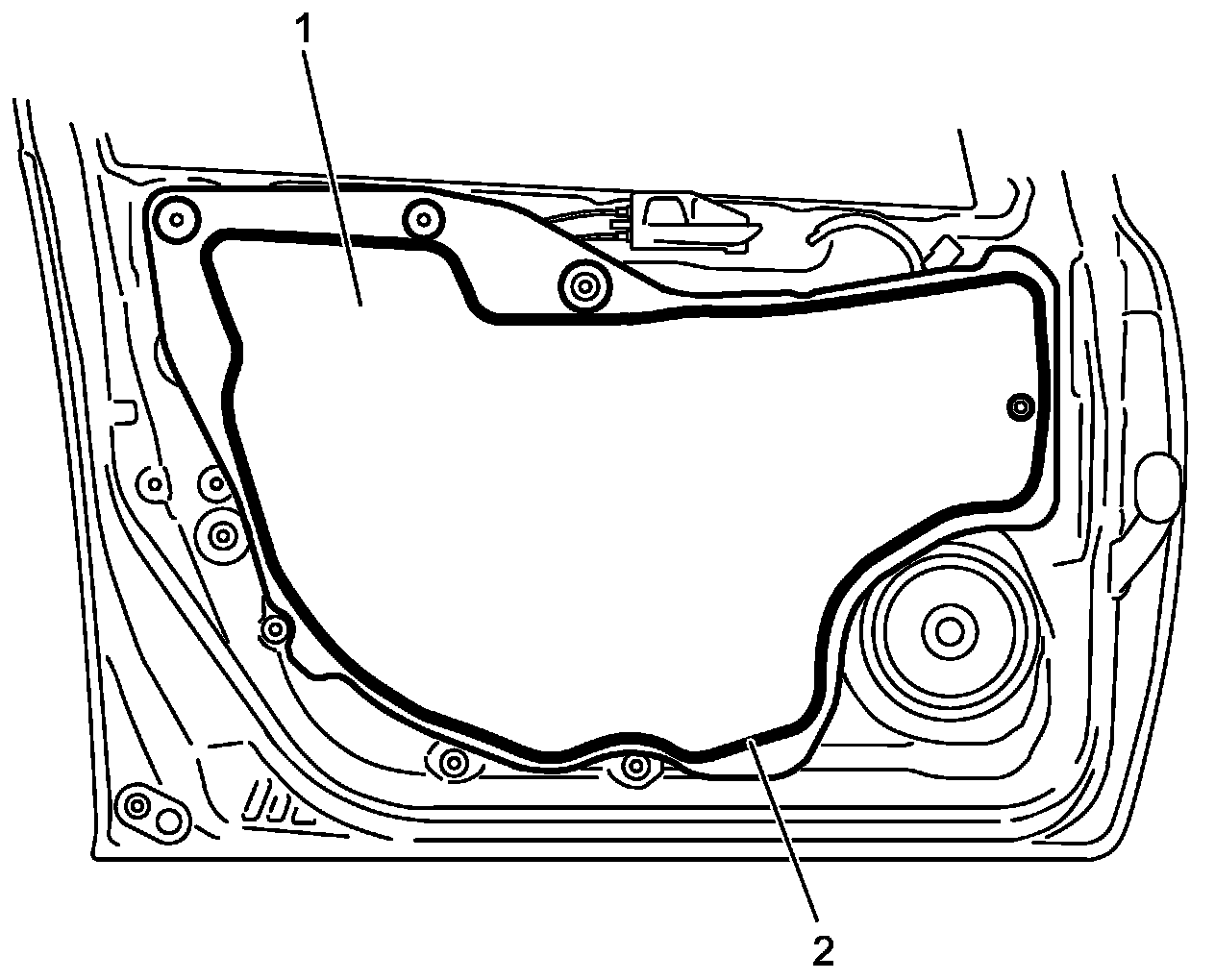

- Fix door sealing cover (1) with butyl tape (2).
