Flex Plate: Service and Repair
Flywheel / Drive Plate Removal and InstallationRemoval
1) Remove transaxle assembly.
^ M/T model:
^ CVT model:

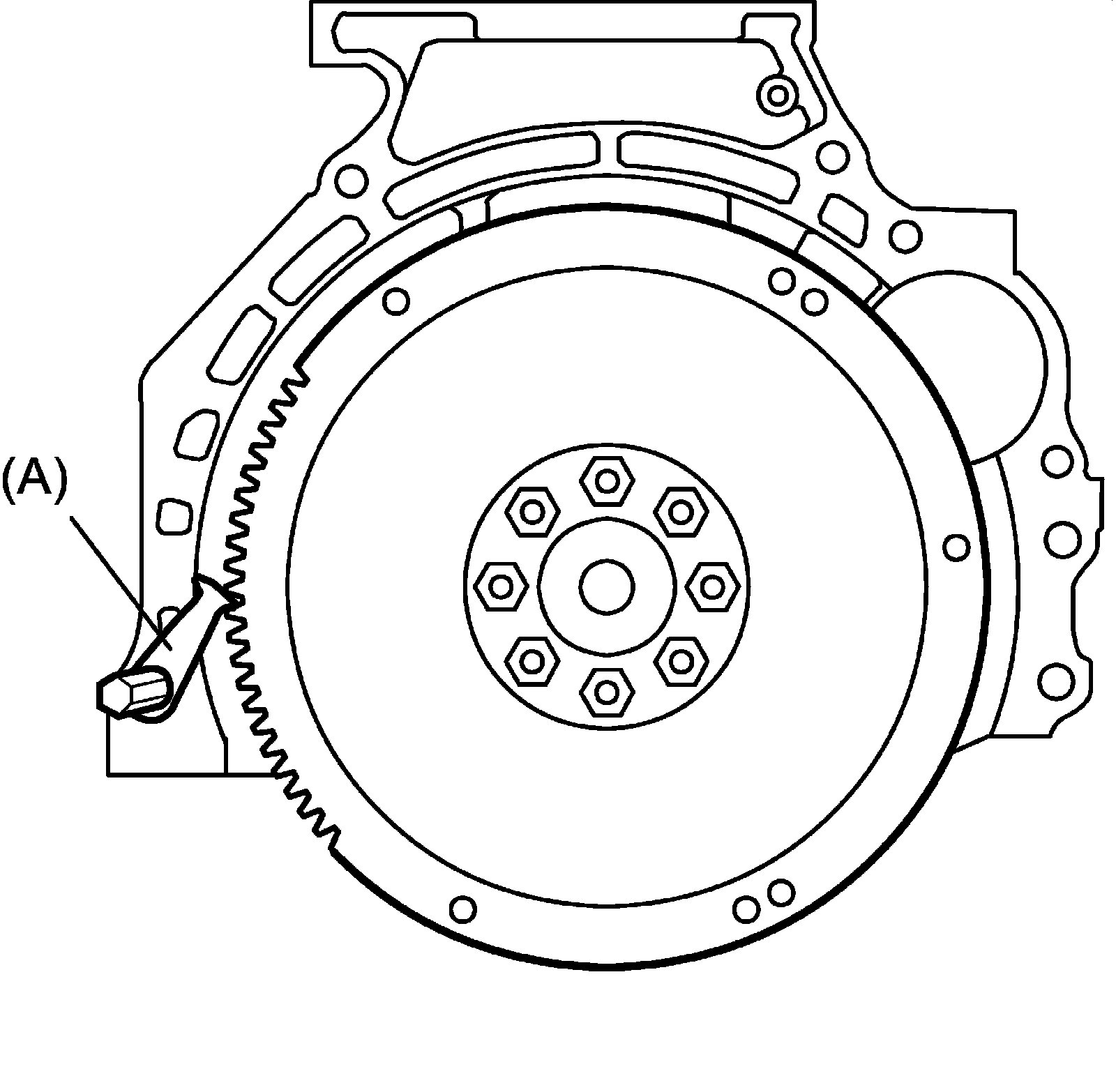

2) Wedge a special tool in ring gear teeth to lock flywheel or drive plate as shown in figure.
Special Tool
(A): 09924-17811
3) Remove flywheel or drive plate from engine assembly.
Installation
Reverse removal procedure noting the following.
^ Install new drive plate bolts or flywheel bolts.

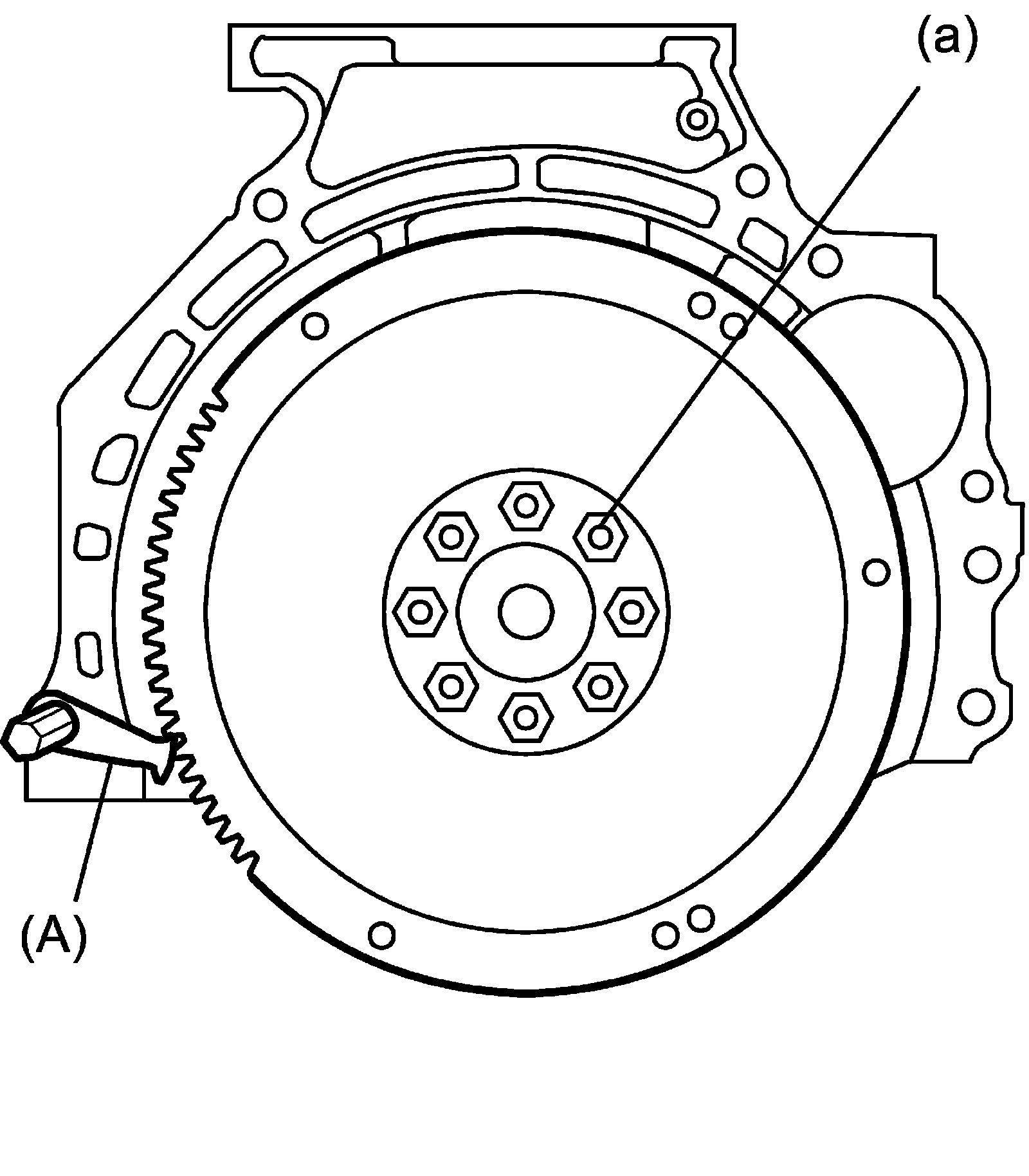

^ Wedge a special tool in ring gear teeth to lock flywheel or drive plate as shown in figure.
Special Tool
(A): 09924-17811
^ Tighten flywheel bolts or drive plate bolts to specified torque.
Tightening torque
Flywheel bolt (a): 70 Nm (7.1 kg-m, 52.0 lbf-ft)
Drive plate bolt (a): 70 Nm (7.1 kg-m, 52.0 lbf-ft)
