OBD System Description - Camshaft Position Control (VVT: Variable Valve Timing) Monitor (EVAP Leak Check Model)

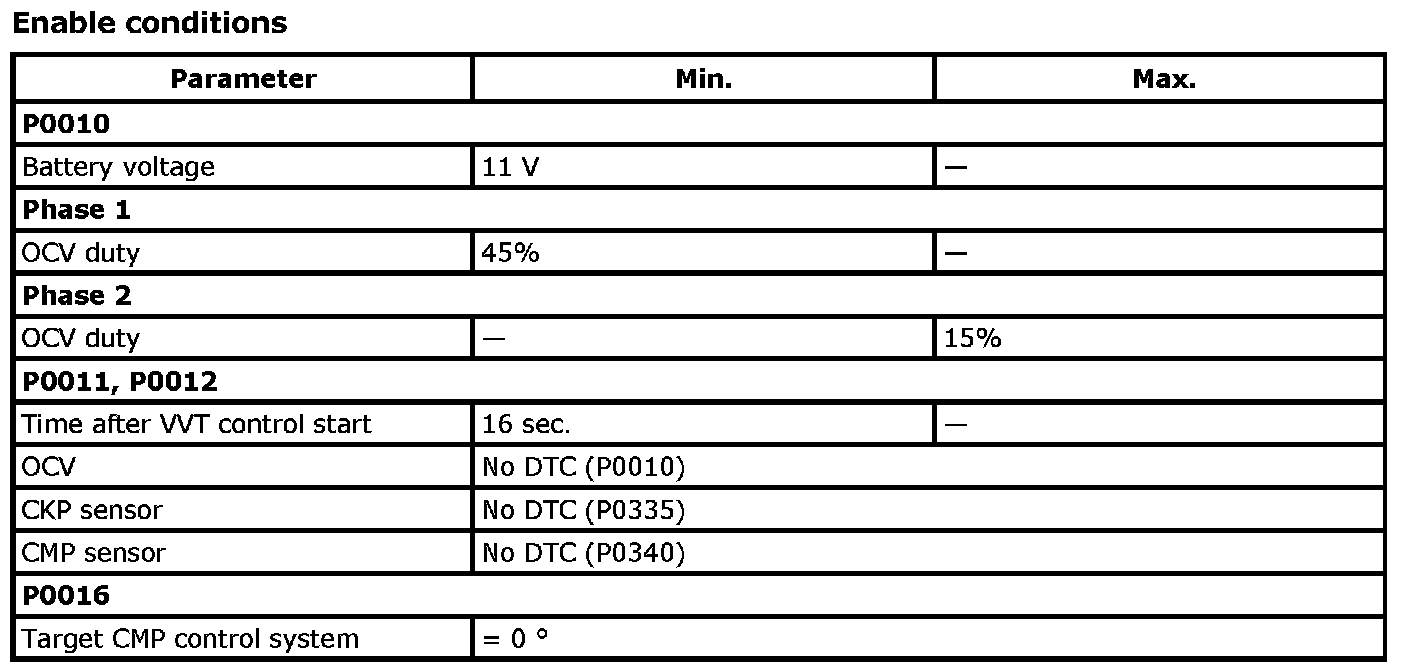

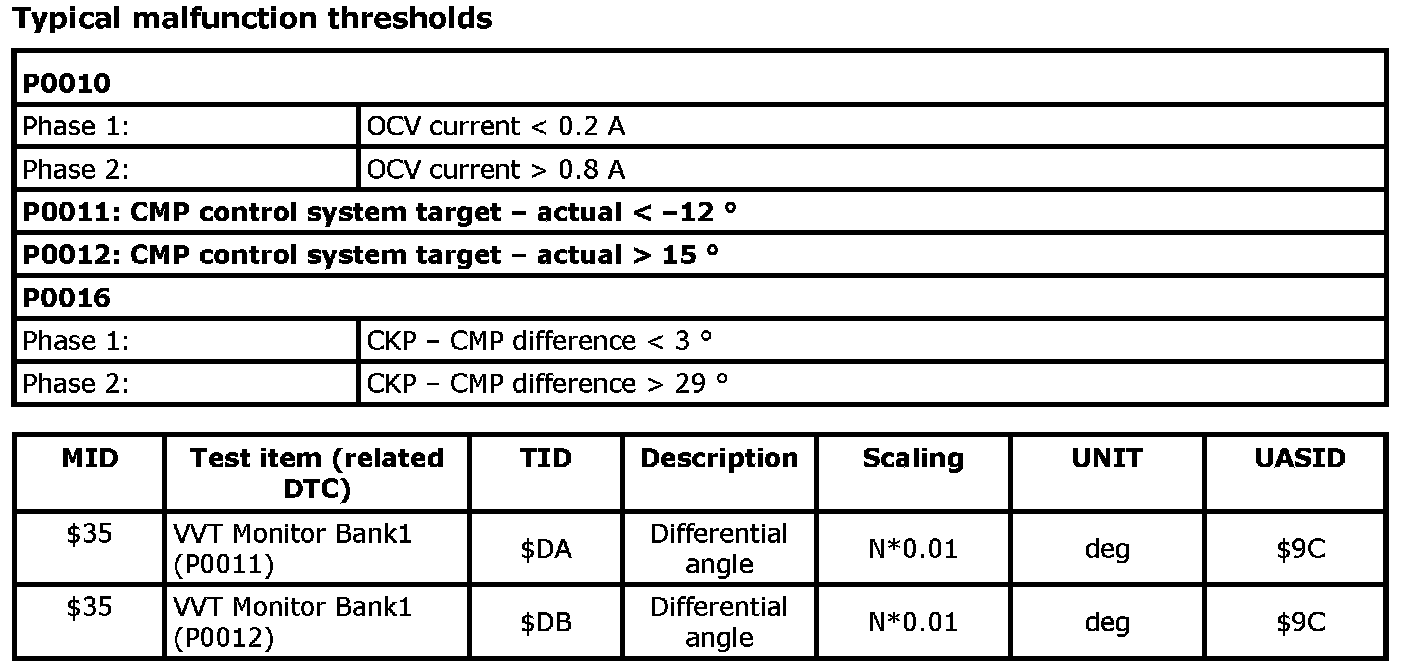

OBD System Description - Camshaft Position Control (VVT: Variable Valve Timing) Monitor (EVAP Leak Check Model)DTC Description / Detecting / Confirmation ProcedureP0010Refer to DTC P0010.
P0010P0011, P0012Refer to DTC P0011 / P0012.
P0011P0016Refer to DTC P0016.
P0016CMP Control System Monitor
