FS6R31A




M/T Oil: Changing

Draining

1) Start the engine and let it run to warm up the transmission.
2) Stop the engine. Remove the transmission drain plug and drain the oil.
3) Set a gasket on the drain plug and install it to the transmission. Tighten the drain plug to the specified torque. Refer to [Transmission Assembly: Disassembly and Assembly] Transmission Disassembly and Assembly.

CAUTION:
Do not reuse gasket.

Filling

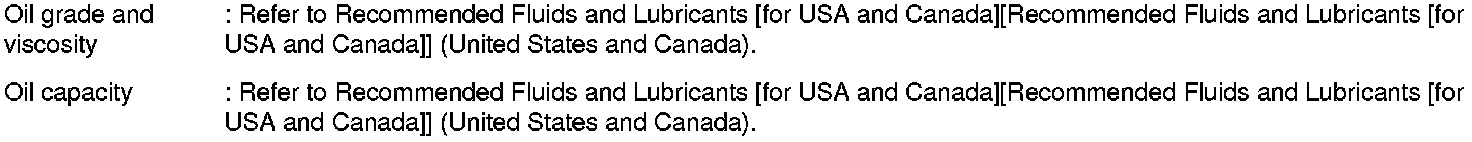

1) Remove the filler plug. Fill with new oil until oil level reaches the specified limit near the filler plug hole as shown.











2) After refilling the oil, check oil level. Set a gasket to the filler plug, then install it to the transmission. Tighten the filler plug to the specified torque. Refer to [Transmission Assembly: Disassembly and Assembly] Transmission Disassembly and Assembly.

CAUTION:
Do not reuse gasket.
