Electronic Stability Program

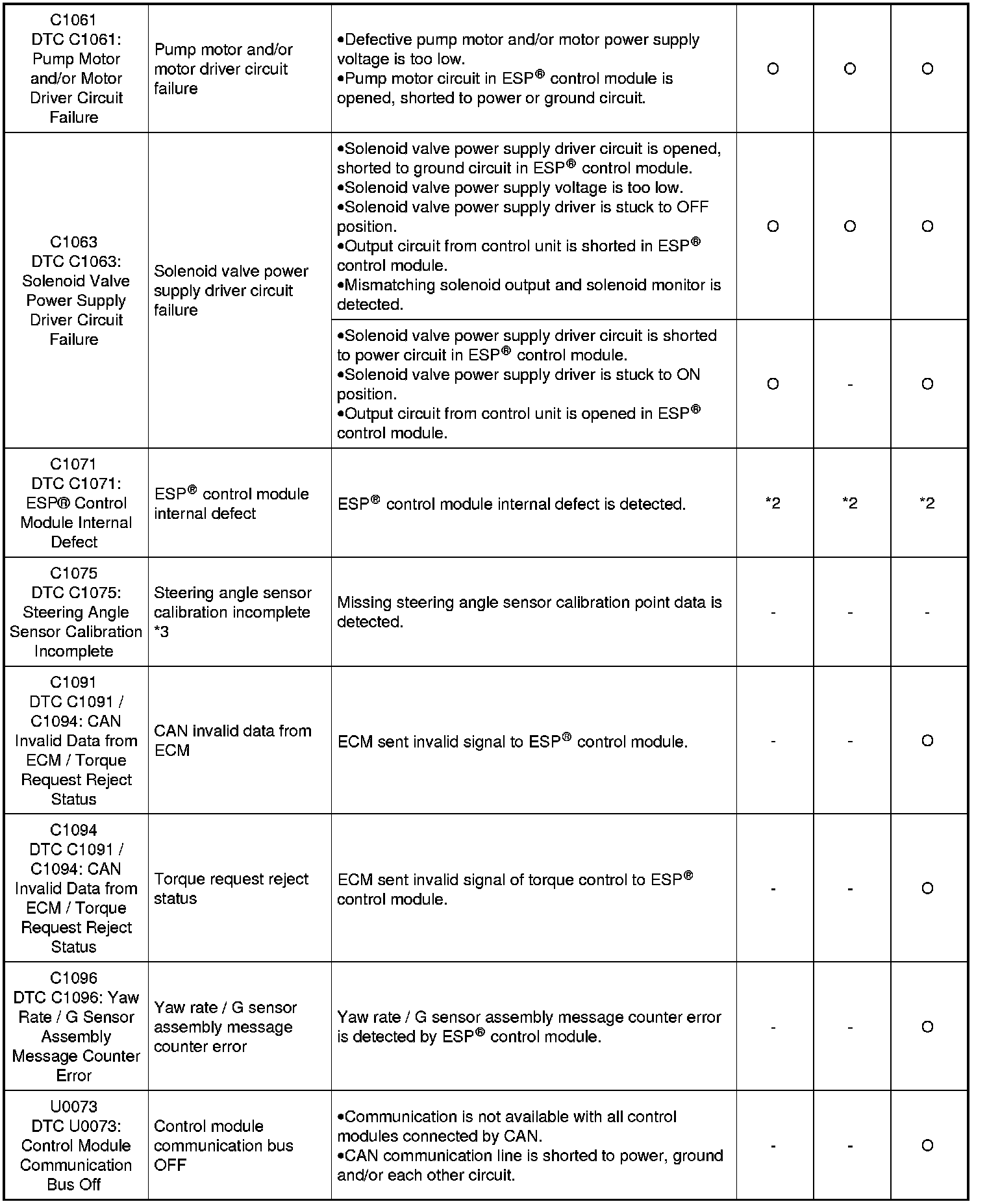

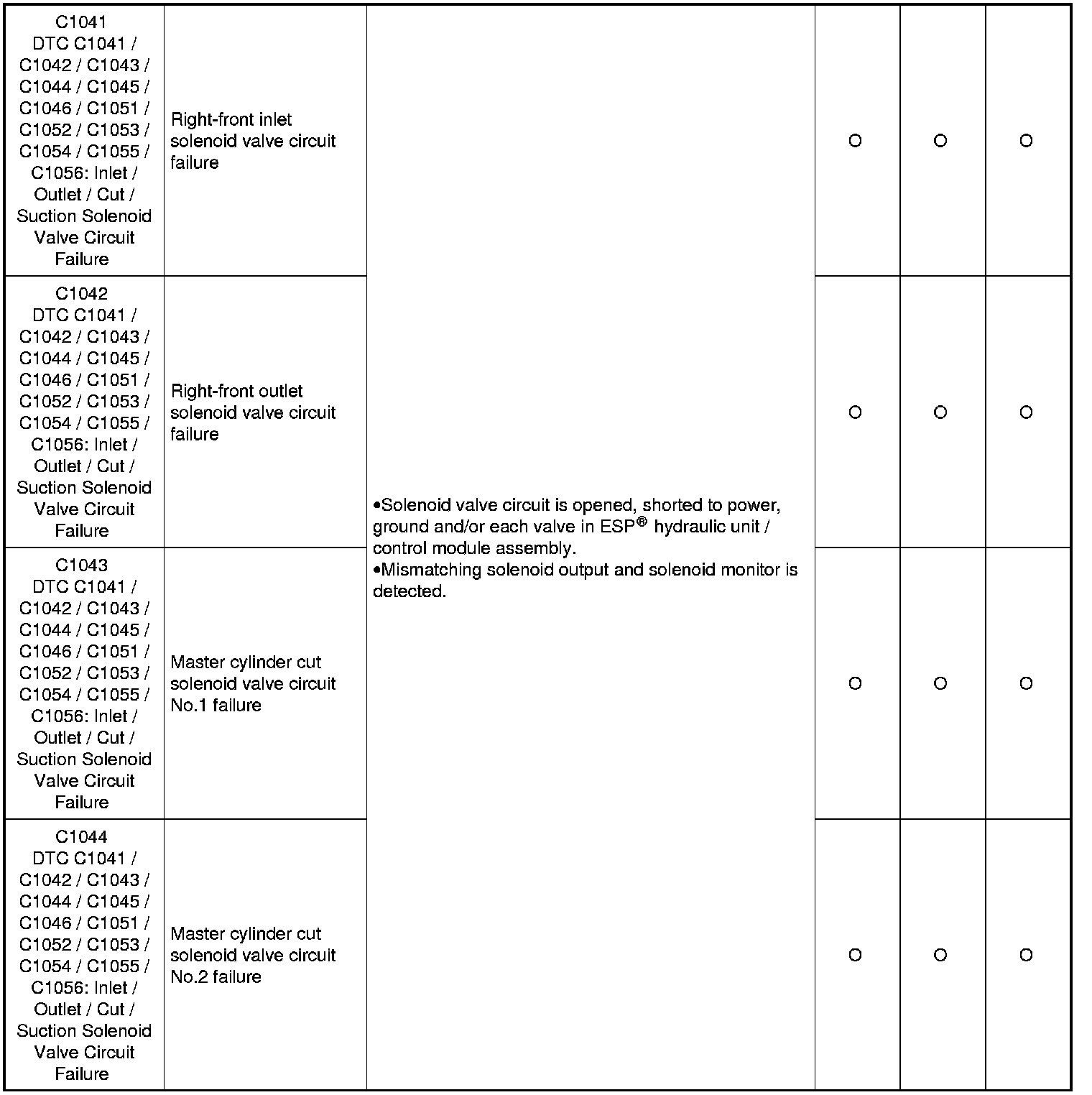

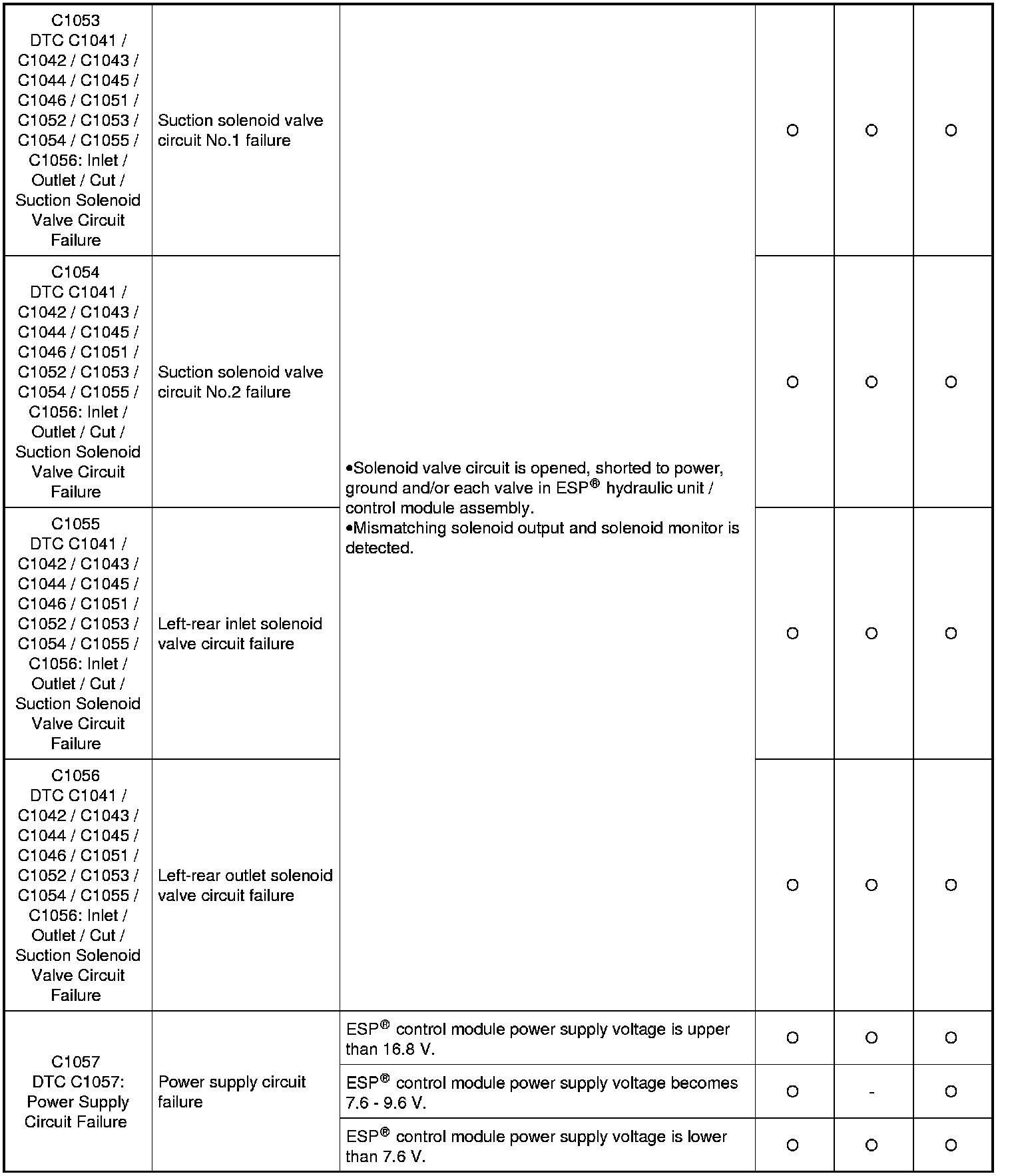

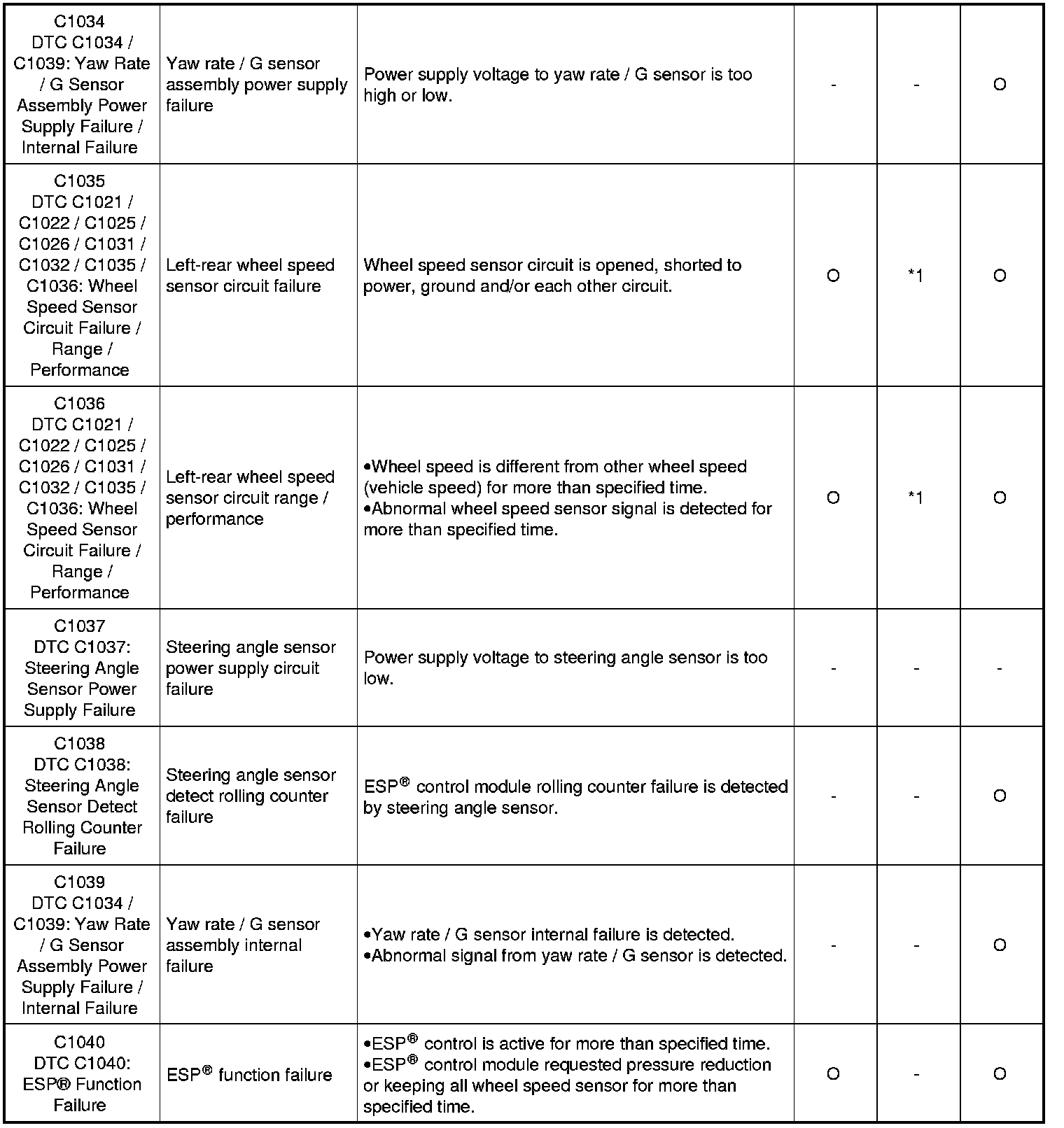

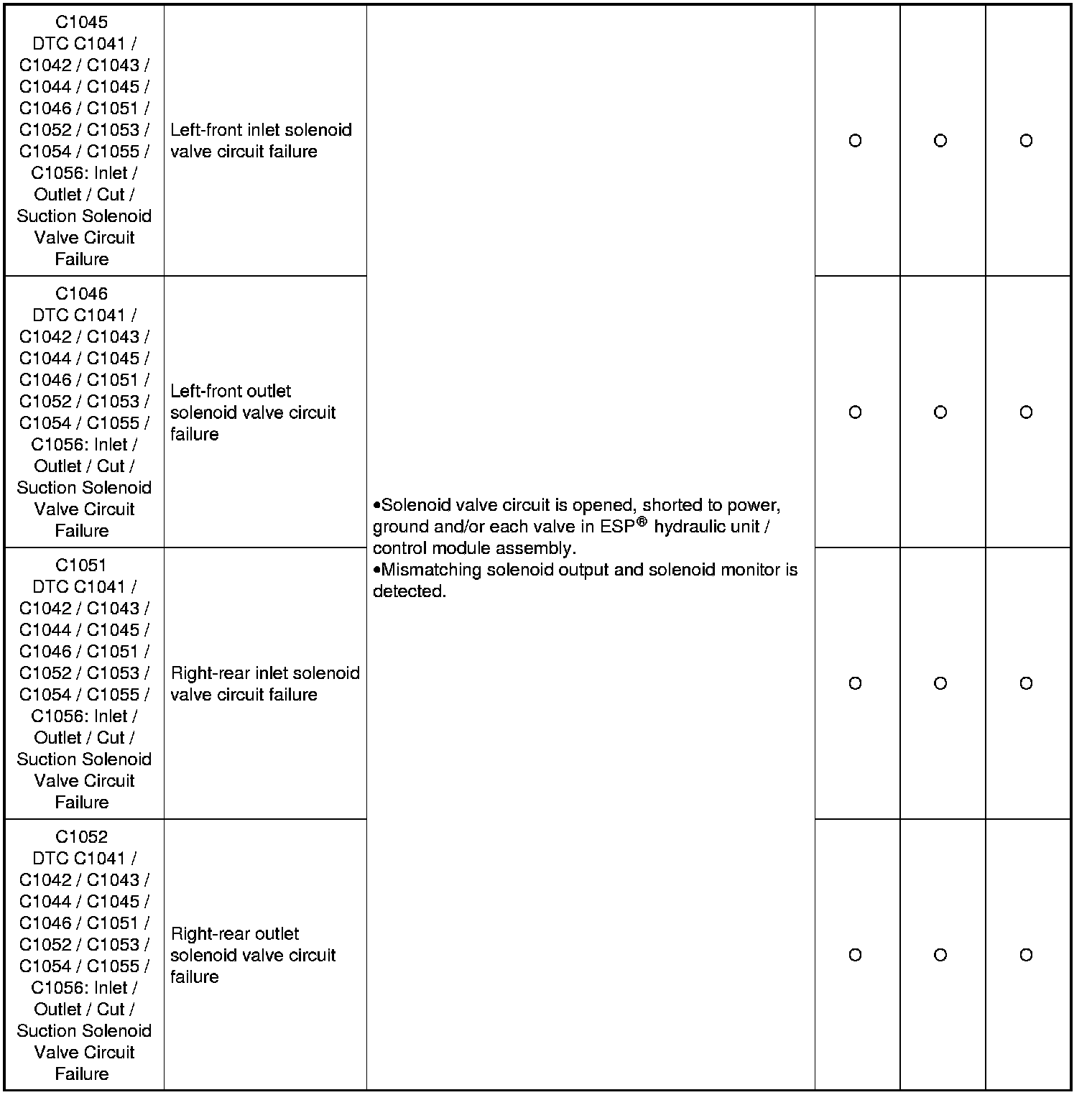

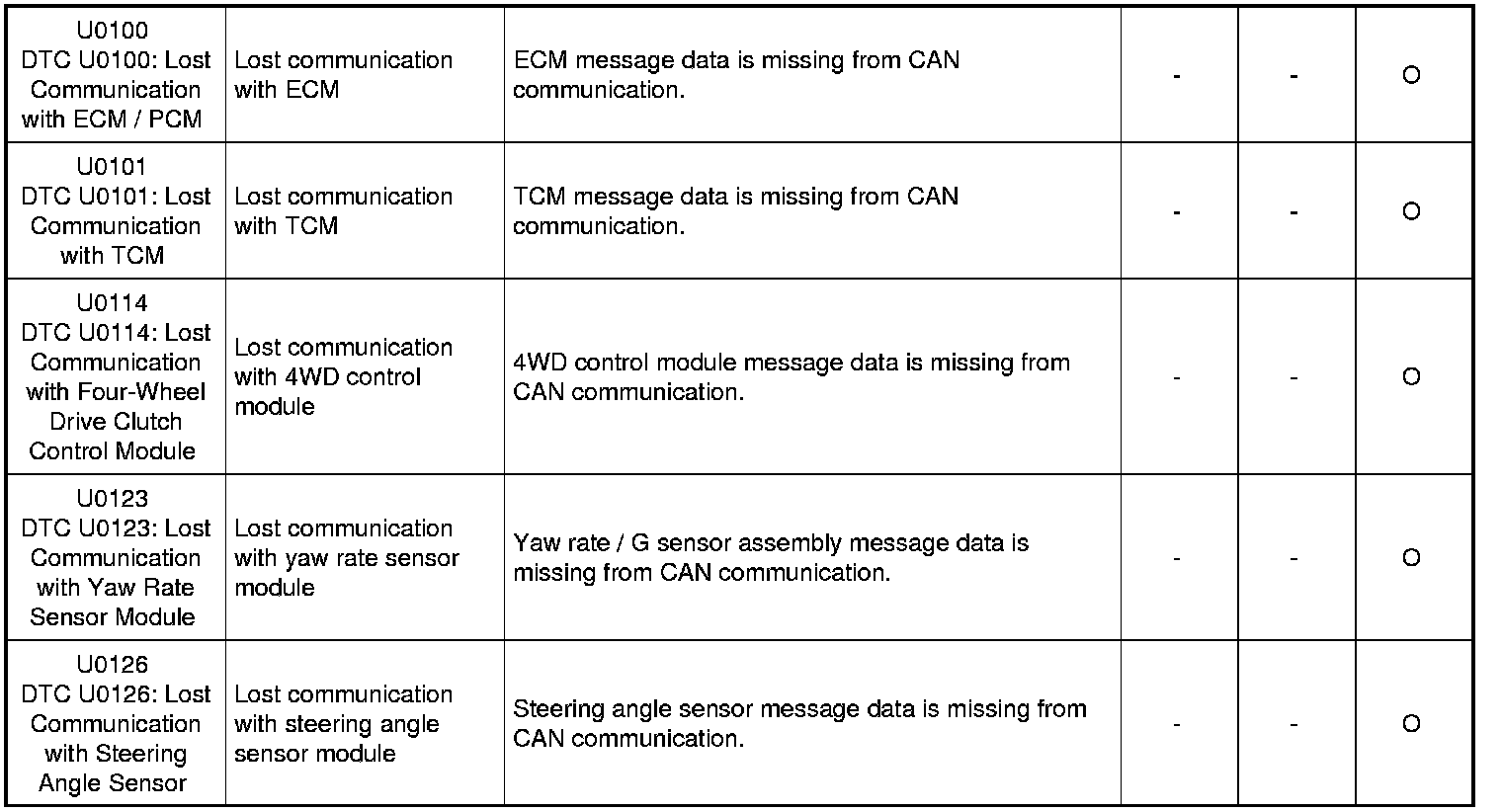

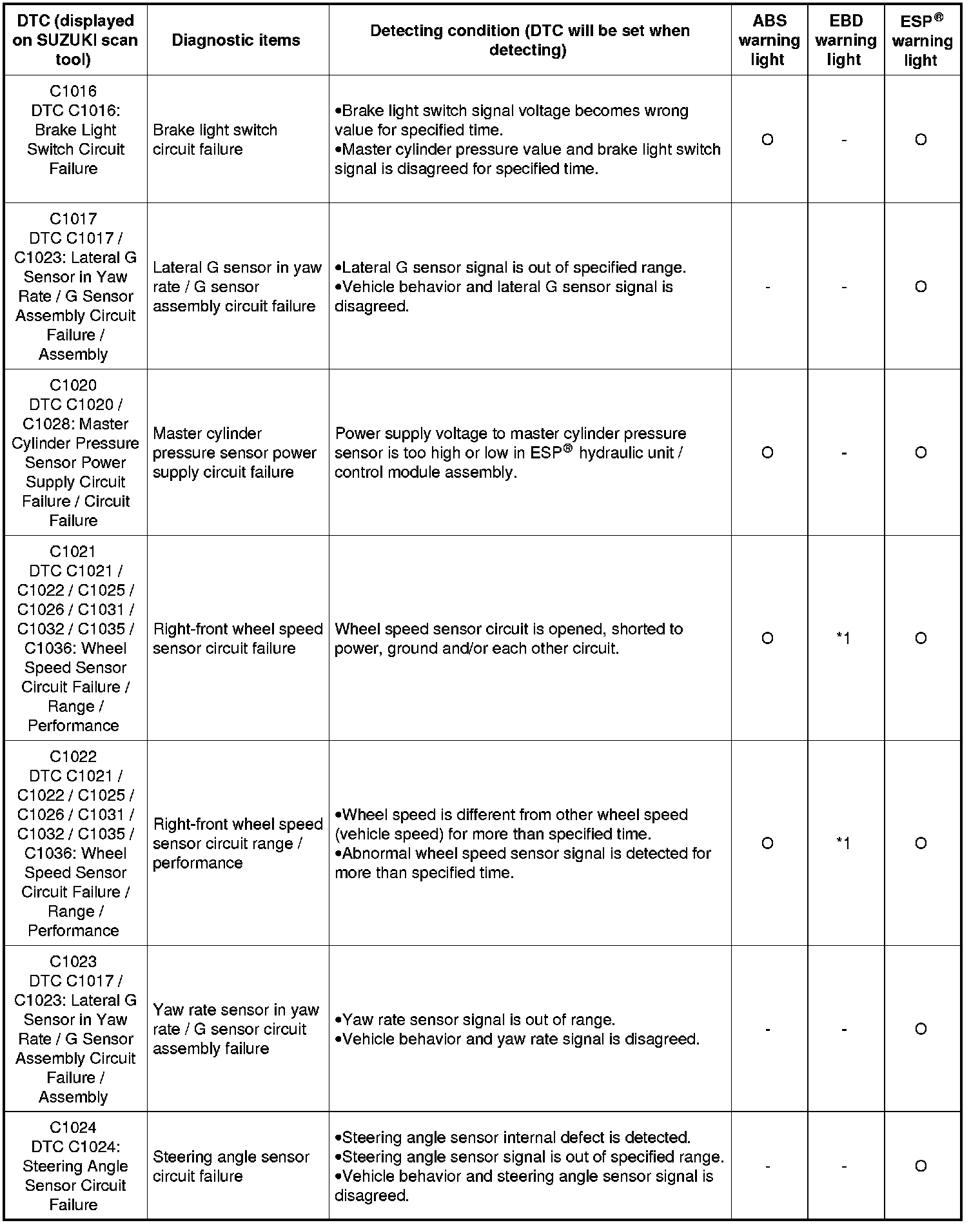

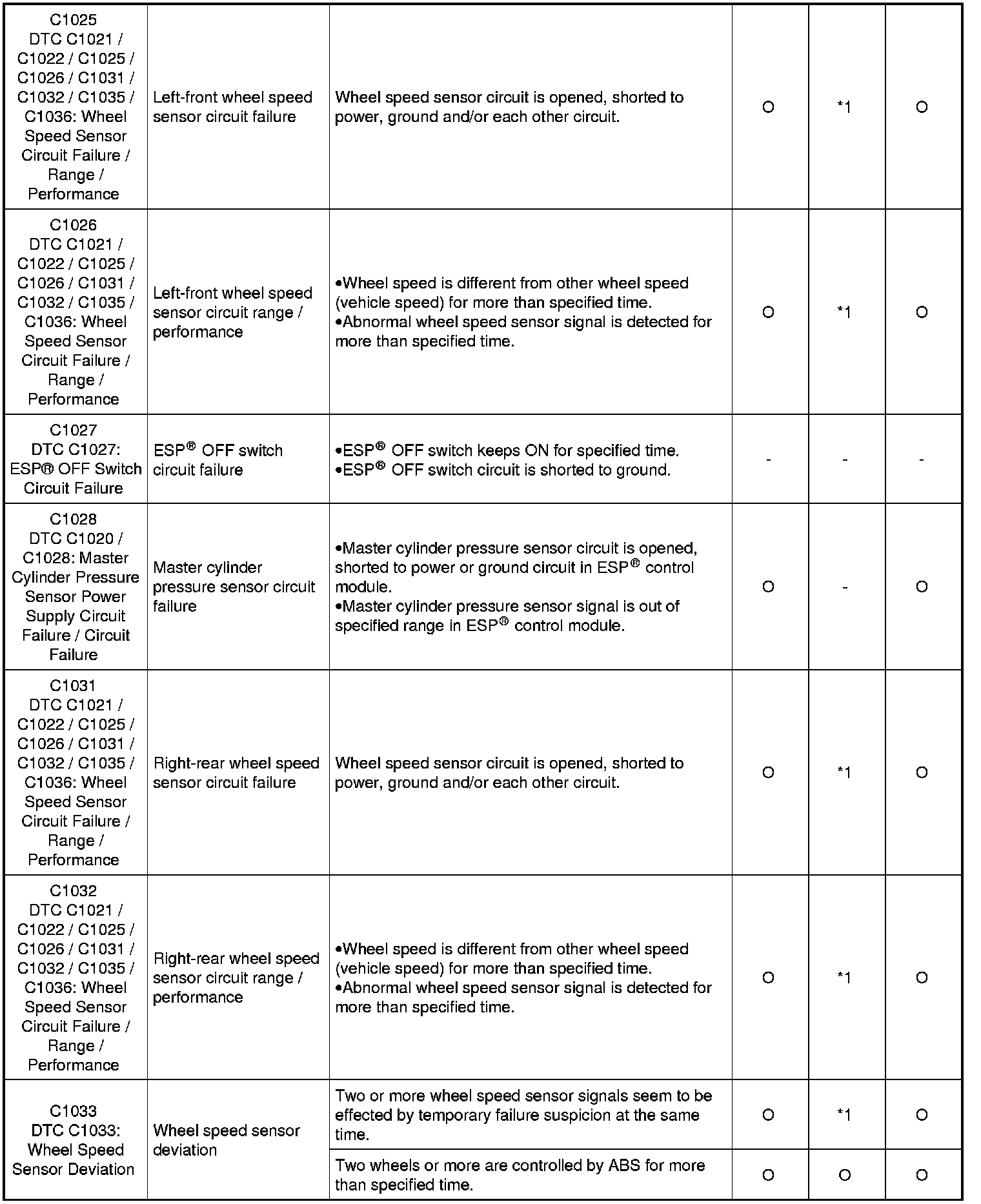

DTC Table
NOTE:
If you do not perform the Electronic Stability Program Electronic Stability Program Check
before starting the diagnosis, the diagnosis will show a false result.
Be sure to perform the Electronic Stability Program Electronic Stability Program Check
before starting the diagnosis.
NOTE:
- "O" in ABS warning light, EBD warning light and ESP(R) warning light column of the above table means warning light is lit when DTC is detected.
- *1: If three or more wheel speed sensor are defective, EBD warning light are lit.
- *2: It is irregular whether warning lights can be lit by ESP(R) control module.
- *3: SLIP indicator light flashes continuously at intervals of 1 Hz.
