Warning Light, Indicator Light Description




Warning Light, Indicator Light Description

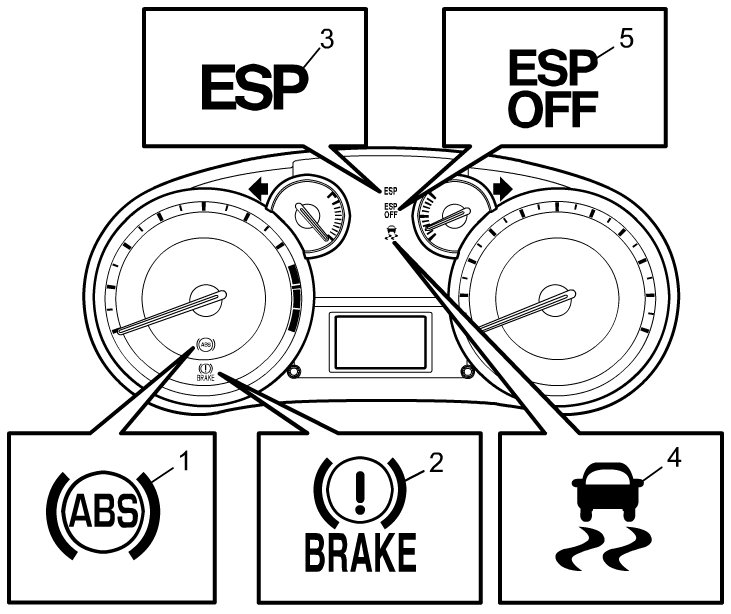

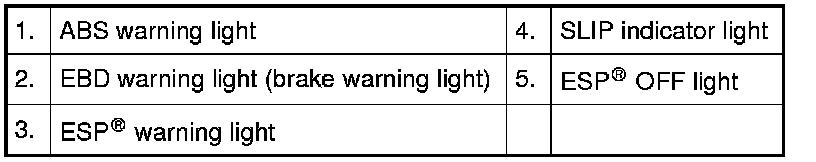

There are five types of warning light and indicator light in instrument cluster, which are controlled by ESP(R) control module. They give warning / indication to driver by changing the modes light ON / blinking / light OFF.










The followings are the condition and operation of warning lights and indicator lights.
