M/T - Revised L/H Transmission Case Assembly Procedure

TSB No. TS 10 03232

Section Title: Transmission

Category: Technical

Division: Automotive

SUBJECT:
SERVICE MANUAL UPDATE: LEFT CASE REASSEMBLY OF MANUAL TRANSMISSION PROCEDURE.

MODEL(S): SX-4 (RW420)

YEAR: 2010-2011

CONDITION:

This bulletin is to inform you that there has been an update made to the following service manuals for selection of the countershaft left side bearing shim the manual transaxle and "Available shim thinkness" table

CORRECTION:

For users of the Online Service Manuals, please refer to the corrections illustrated in this bulletin that have been made to the service manual sections applying to Left Case Disassembly and Reassembly. The following table describes the Service Manuals and the corresponding items that were corrected. The Online Service Manuals have been revised prior to the release of this bulletin.





AFFECTED SERVICE MANUALS

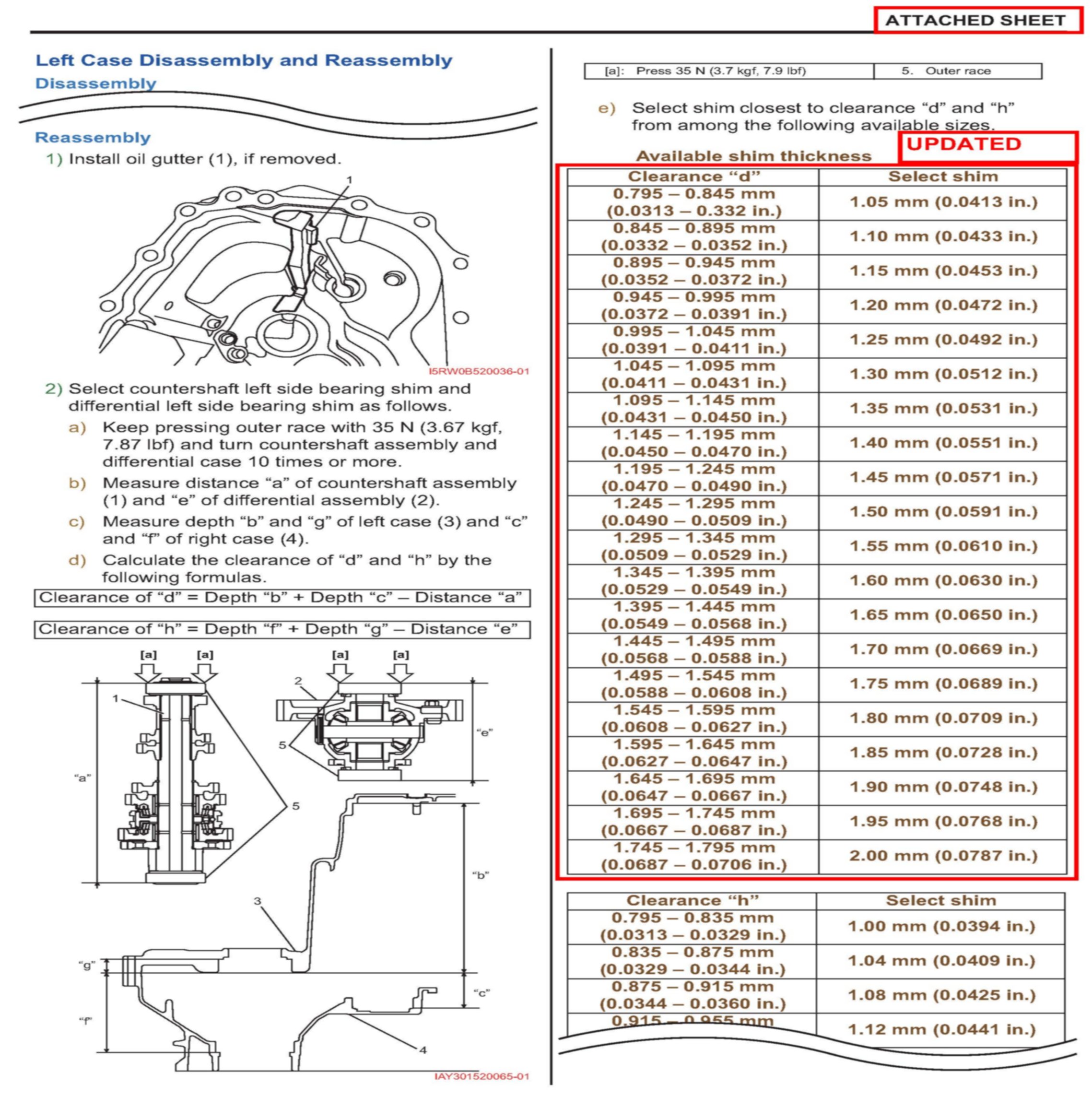

ATTACHMENT - Service Manual Revision
