Fluid - Differential: Testing and Inspection

Differential Oil Inspection

1) Check differential for evidence of oil leakage.

Repair leaky point if any.
2) Make sure that vehicle is placed level for oil level check.

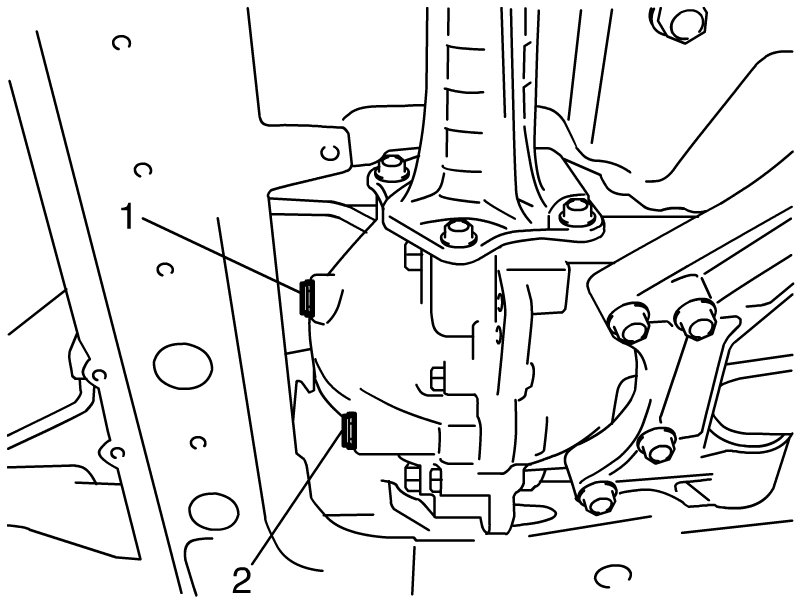

3) Remove level / filler plug of differentials (front and/or rear) and check oil level.

Oil level can be checked roughly by means of level plug hole. That is, if oil flows out of level plug hole or oil level is found up to hole when level / filler plug is removed, oil level is suitable.

If oil is found insufficient, pour specified amount of specified oil.











4) Tighten level plug to specified torque.

For front differential, refer to Front Differential Oil Change:Front.

For rear differential, refer to Service and Repair Rear Differential Oil Change:Rear.
