Brake Rotor/Disc

Front Brake Disc

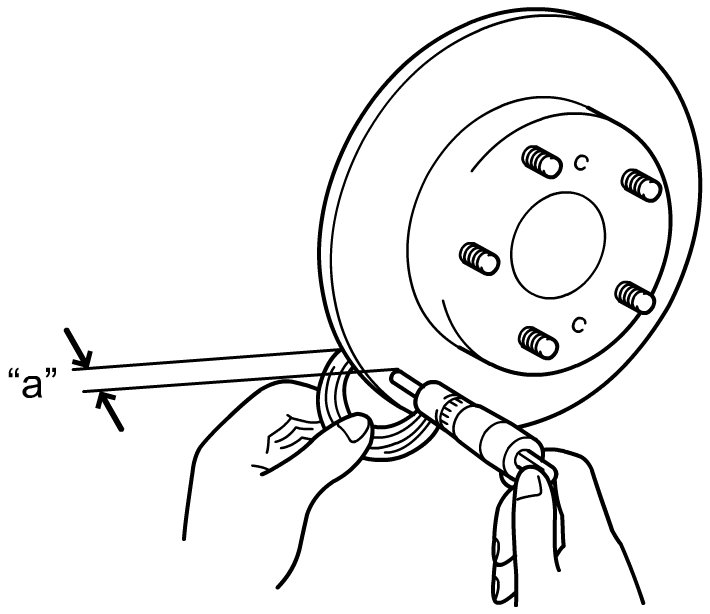

Front brake disc thickness
"a"
Standard: 25 mm (0.984 in.)
Limit: 23 mm (0.905 in.)

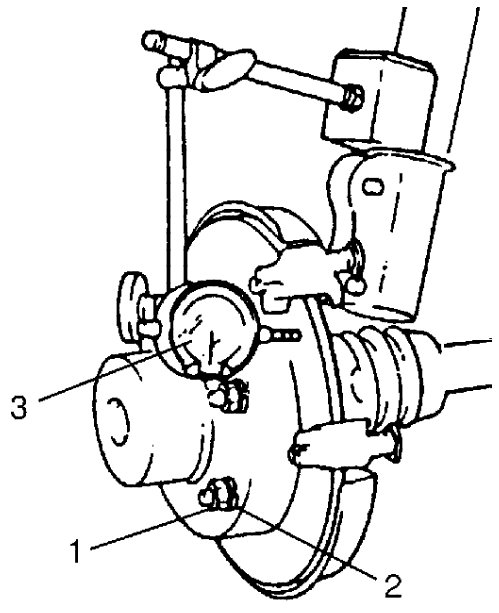

Front brake disc deflection
Limit: 0.1 mm (0.004 in.)








Rear Brake Disc

Rear brake disc thickness
"a"
Standard: 16 mm (0.63 in.)
Limit: 14 mm (0.55 in.)

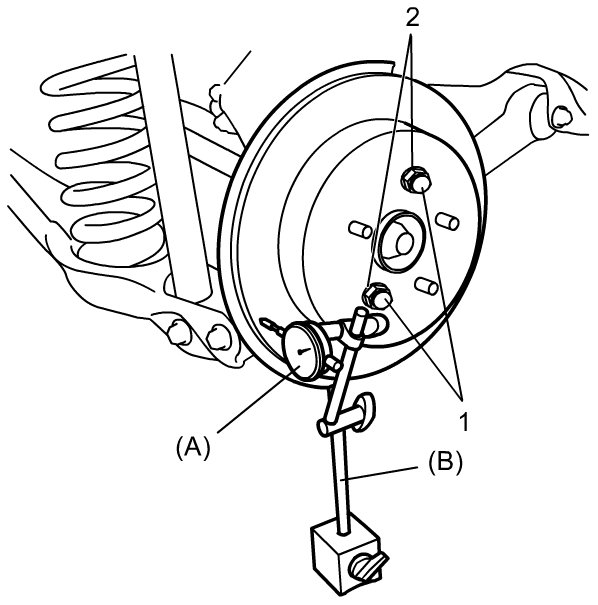

Rear brake disc deflection
Limit: 0.1 mm (0.004 in.) max

Special Tool
Dial gauge(A): 09900-20607

Magnetic stand(B): 09900-20701
