Front Wheel Speed Sensor Removal and Installation

Front Wheel Speed Sensor Removal and Installation

Front and Rear Wheel Speed Sensor On-Vehicle Inspection

NOTE:

Failure to take proper precautions when removing and installing the wheel speed sensor may lead to damaged to the wheel speed sensor harness.

Do not pull on or twist the wire harness when removing and installing the sensor.

Removal

1) Disconnect negative (-) cable at battery.
2) Hoist vehicle a little and remove wheel.

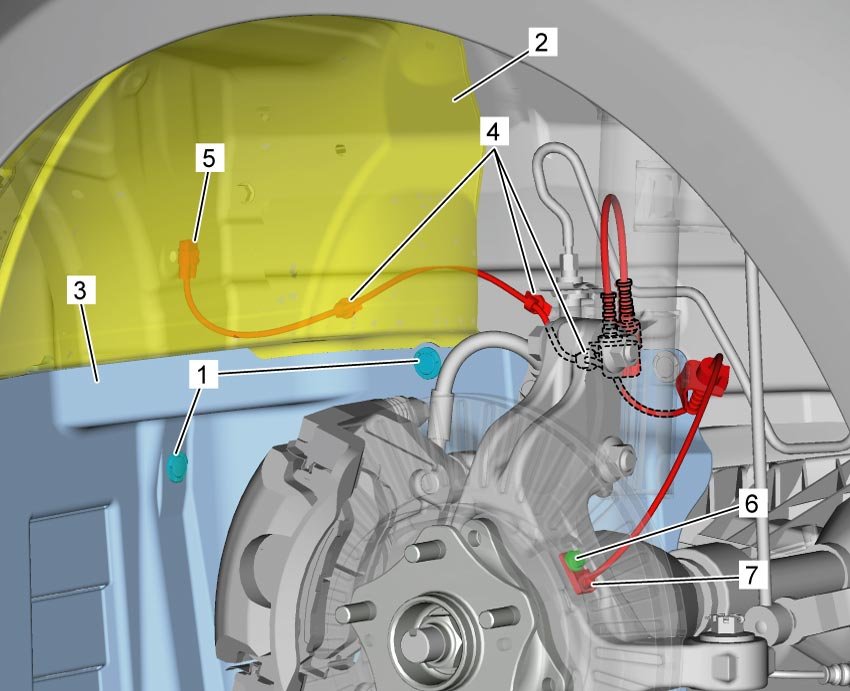

3) Remove clips (1) and separate front fender lower lining (3) from front fender lining (2).
4) Remove clips (4) and disconnect front wheel speed sensor connector (5).
5) Remove front wheel speed sensor bolt (6).
6) Remove front wheel speed sensor (7) from steering knuckle.






Installation

Front and Rear Wheel Speed Sensor Inspection

Reverse removal procedure, noting the following points.

- Check detective area of wheel speed sensor (1) is not covered with iron powder.
- Tighten wheel sensor bolt (2) to specified torque.

Tightening torque
Front wheel speed sensor bolt (a): 11 Nm (110 kgf-m, 8.5 lbf-ft)

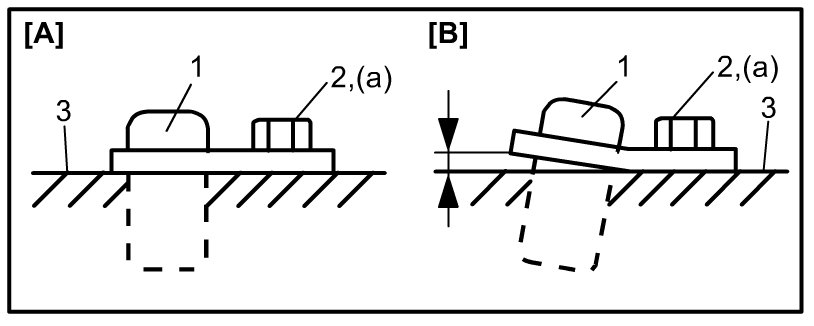

- Confirm that there is no space between front wheel speed sensor and steering knuckle (3).











- Install wheel. Removal and Replacement
