Blower Motor Controller Removal and Installation
Blower Motor Controller Removal and InstallationRemoval 1)
Remove passenger side instrument panel undercover.
Removal and Replacement 2)
Remove a screw (1). Then remove passenger side foot duct (2) from HVAC unit.
3)

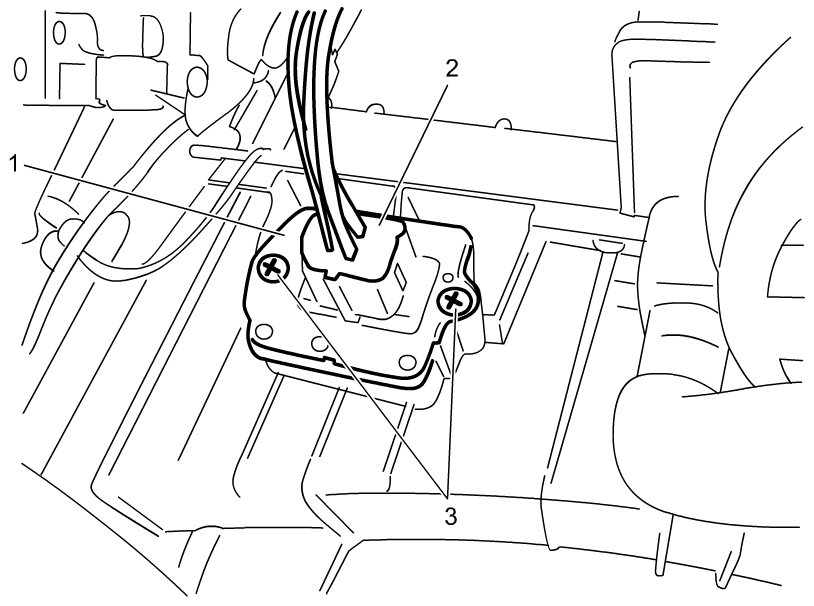

Disconnect connector (2) and remove screws (3).
Then remove blower motor controller (1) from HVAC unit.
InstallationReverse removal procedure.
