Mechanical Diagrams

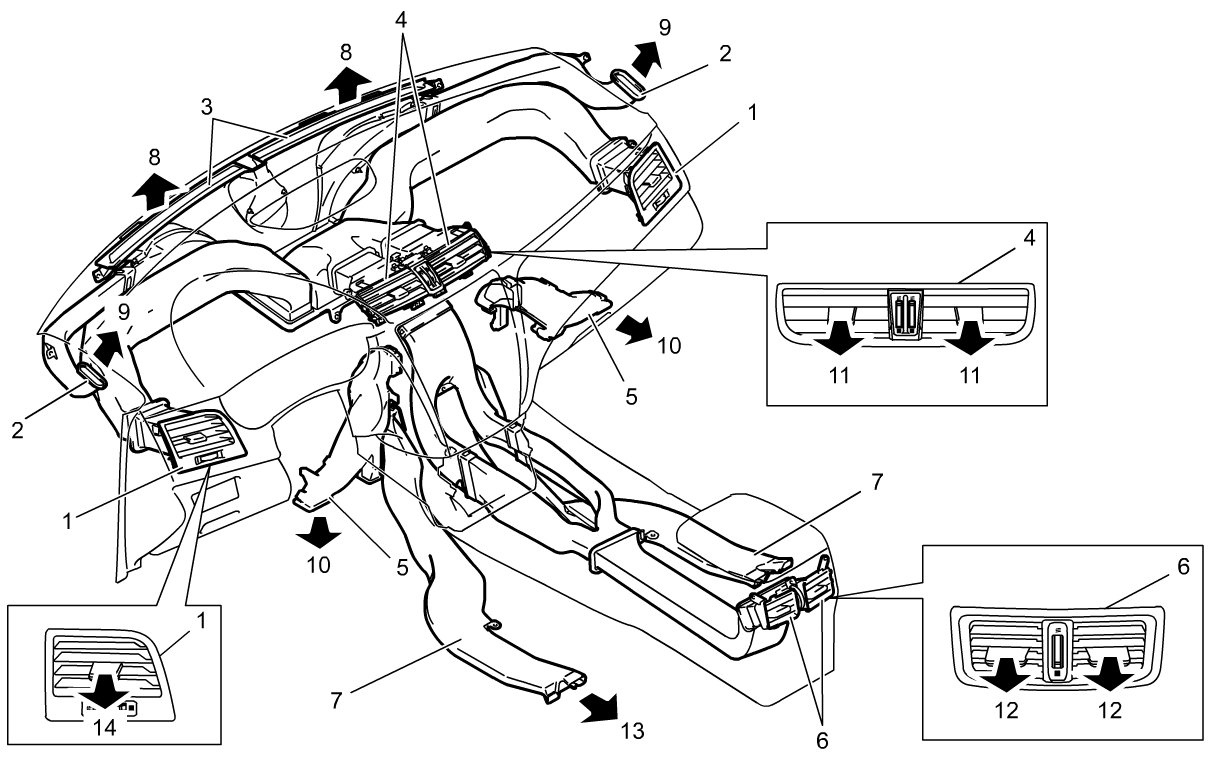

Ventilation Air Flow Diagram

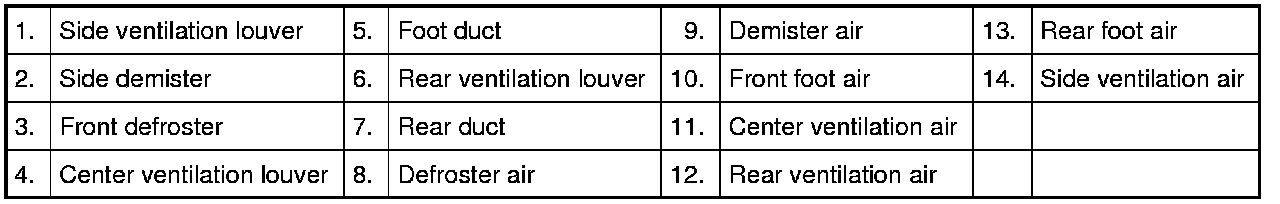

Mode Position and Air Distribution

Front side air distribution

NOTE:

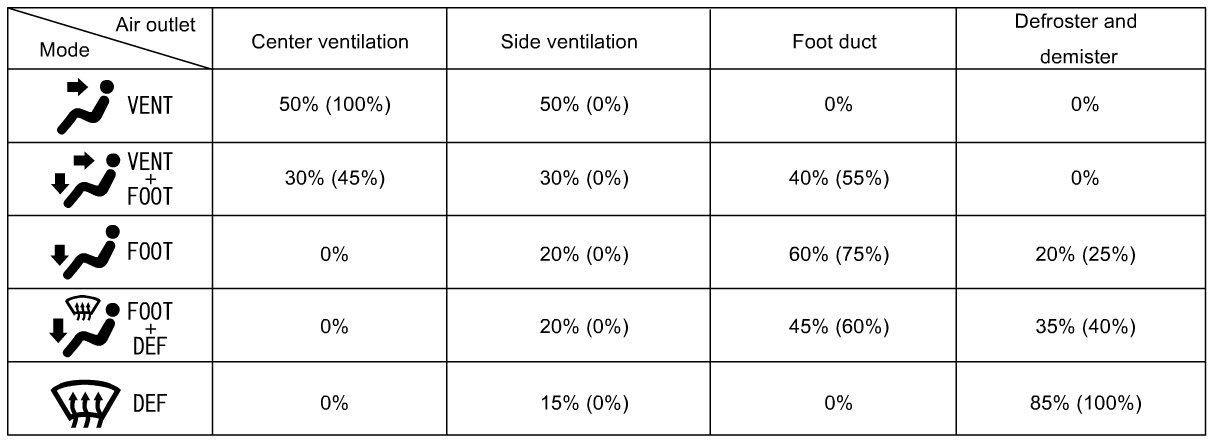

Figure in parentheses shows air flow percentage when both side ventilations are closed.

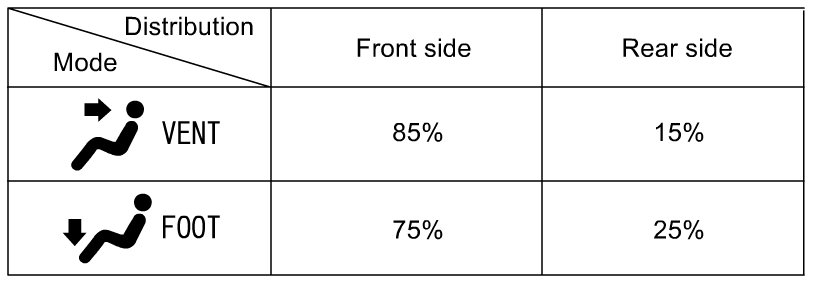

Distribution from front side to rear side
