Marker Lamp: Service and Repair




Front Side Marker Light Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove front bumper. Service and Repair

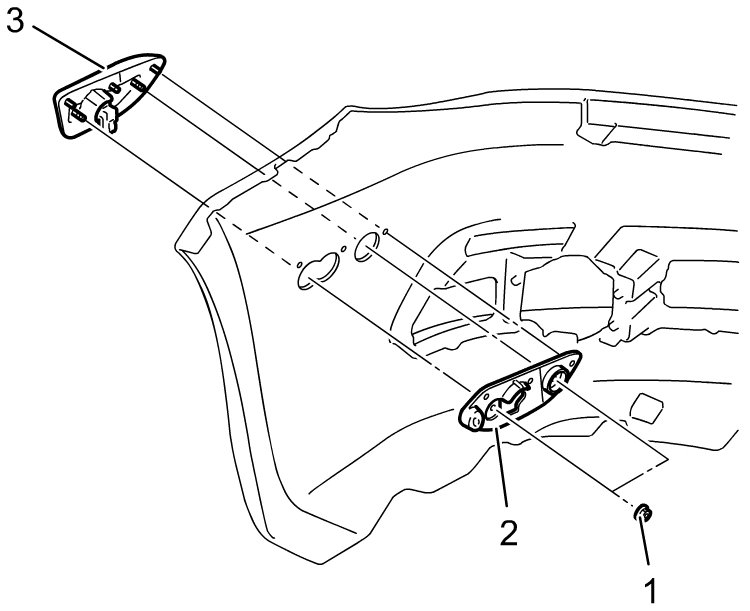

3) Remove front side marker light nuts (1)
4) Remove front side marker light holder (2) and front turn signal light (3).





5) Remove bulb.

Installation

Reverse removal procedure, noting the following point.

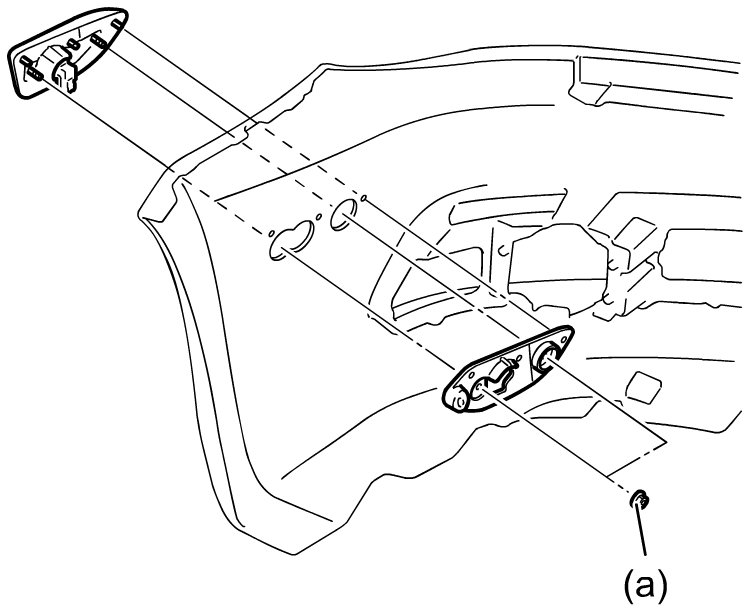

- Tighten front side marker light nuts to specified torque.

Tightening torque
Front side marker light nut (a): 3.4 Nm (0.34 kgf-m, 2.5 lbf-ft)
