Torque & Sequence For the Pressure Plate




Clutch Cover and Clutch Disc

Tightening torque
Clutch cover bolt* (a): 5.0 Nm -> 23 Nm (0.51 kgf-m -> 2.3 kgf-m, 4.0 lbf-ft -> 17.0 lbf-ft)
Clutch cover bolt* (b): 23 Nm (2.3 kgf-m, 17.0 lbf-ft)

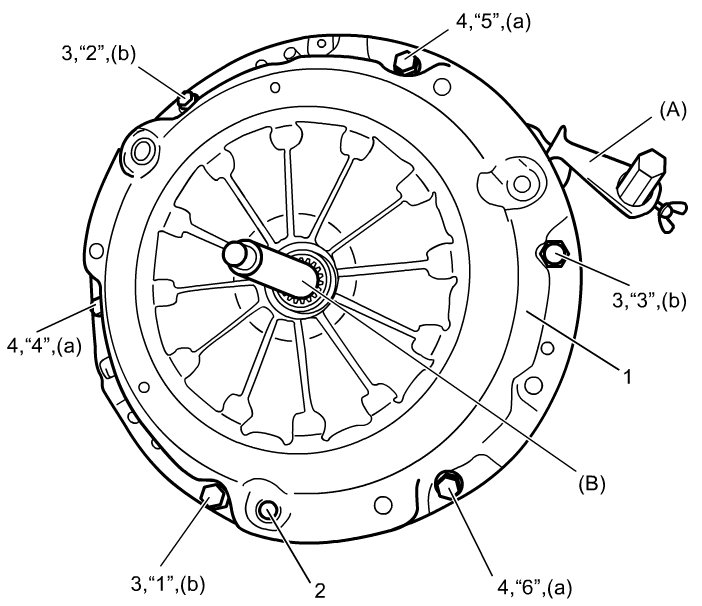

Tightening Sequence
Install and tighten clutch cover bolts using the following procedures:
a) Tighten 3 bolts (3) by hand.
b) Tighten other 3 bolts (4) evenly and gradually to 5.0 Nm (0.51 kgf-m, 4.0 lbf-ft).
c) Fully tighten all bolts (3), (4) evenly and gradually to specified torque in numerical order ("1" - "6") starting from bolt nearby strut plate rivet (2).

NOTE:
Tighten the clutch cover bolts while checking that the special tool can slide smoothly.

Special Tool

(A): 09924-17811

(B): 09923-37910
