Primary Pulley Speed Sensor Removal and Installation

Primary Pulley Speed Sensor Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove air cleaner inlet hose. Air Cleaner Assembly Removal and Installation

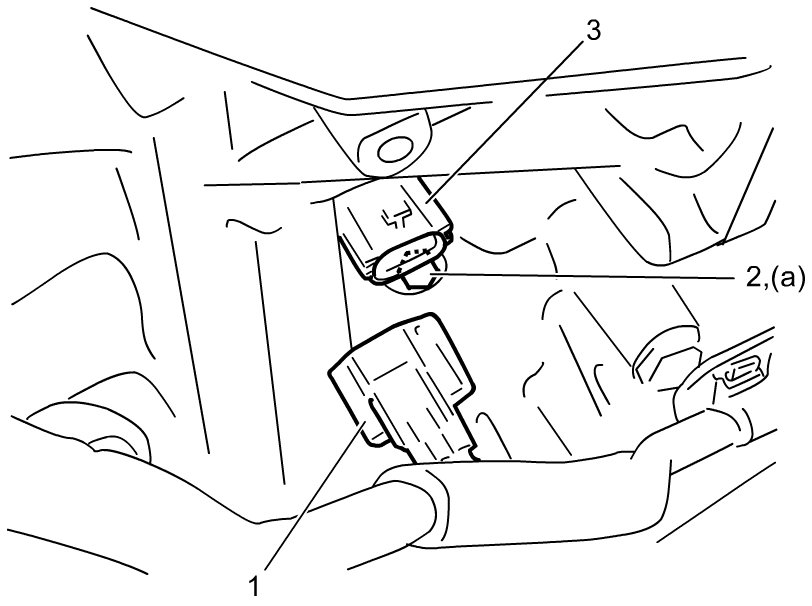

3) Disconnect connector (1) from primary pulley speed sensor.
4) Remove primary pulley speed sensor (3) from transaxle by removing primary pulley speed sensor bolt (2).

Installation

Primary Pulley Speed Sensor and Secondary Pulley Speed Sensor Inspection

Reverse removal procedure noting the following points.

- Apply CVT fluid to new O-ring of sensor.
- Tighten primary pulley speed sensor bolt to specified torque.

Tightening torque
Primary pulley speed sensor bolt (a): 5.9 Nm (0.60 kgf-m, 4.5 lbf-ft)

- Connect connector and fix wire harness with clamp securely.
