OBD System Description - Catalyst Monitor

OBD System Description - Catalyst Monitor

System Description / Monitoring Procedure

Exhaust oxygen concentration at the upstream and the downstream of WU-TWC is detected from A/F sensor and HO2S respectively and accordingly ECM controls the closed-loop which then controls the fuel injection volume. If the WU-TWC is in good condition while the above controls are in operation, the output voltage of HO2S is maintained at the specified level. If the WU-TWC becomes deteriorated, the exhaust gas which passed WU-TWC passes HO2S at the exhaust oxygen concentration similar to that of the upstream of WU-TWC without being oxygenated or converted, even when the above controls are in operation. In this way, waveforms of the A/F sensor and HO2S output voltage become alike and the ECM judges the deterioration of WU-TWC by comparing waveforms of A/F sensor and HO2S.

Catalyst System Layout

The system has A/F sensor and HO2S located upstream and downstream of WU-TWC as shown in figure.

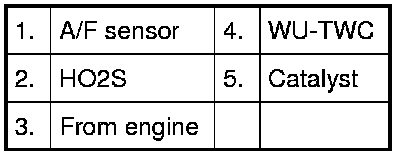

WU-TWC, A/F sensor and HO2S layout










DTC Description / Detecting Condition / Confirmation Procedure

P0420

Refer to P0420 DTC P0420.

Catalyst Monitor

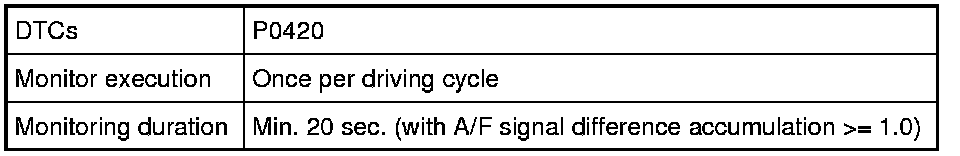

Operation

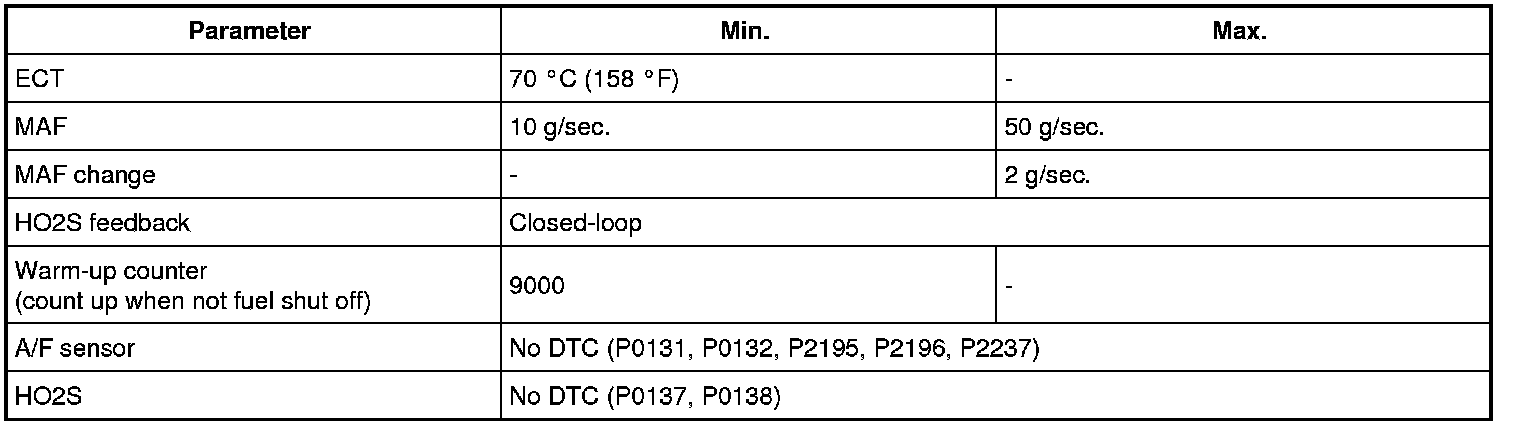

Enabled conditions





Typical malfunction thresholds






MODE $06 Data
