Mechanical Specifications

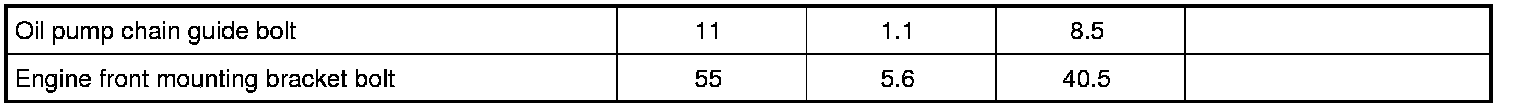

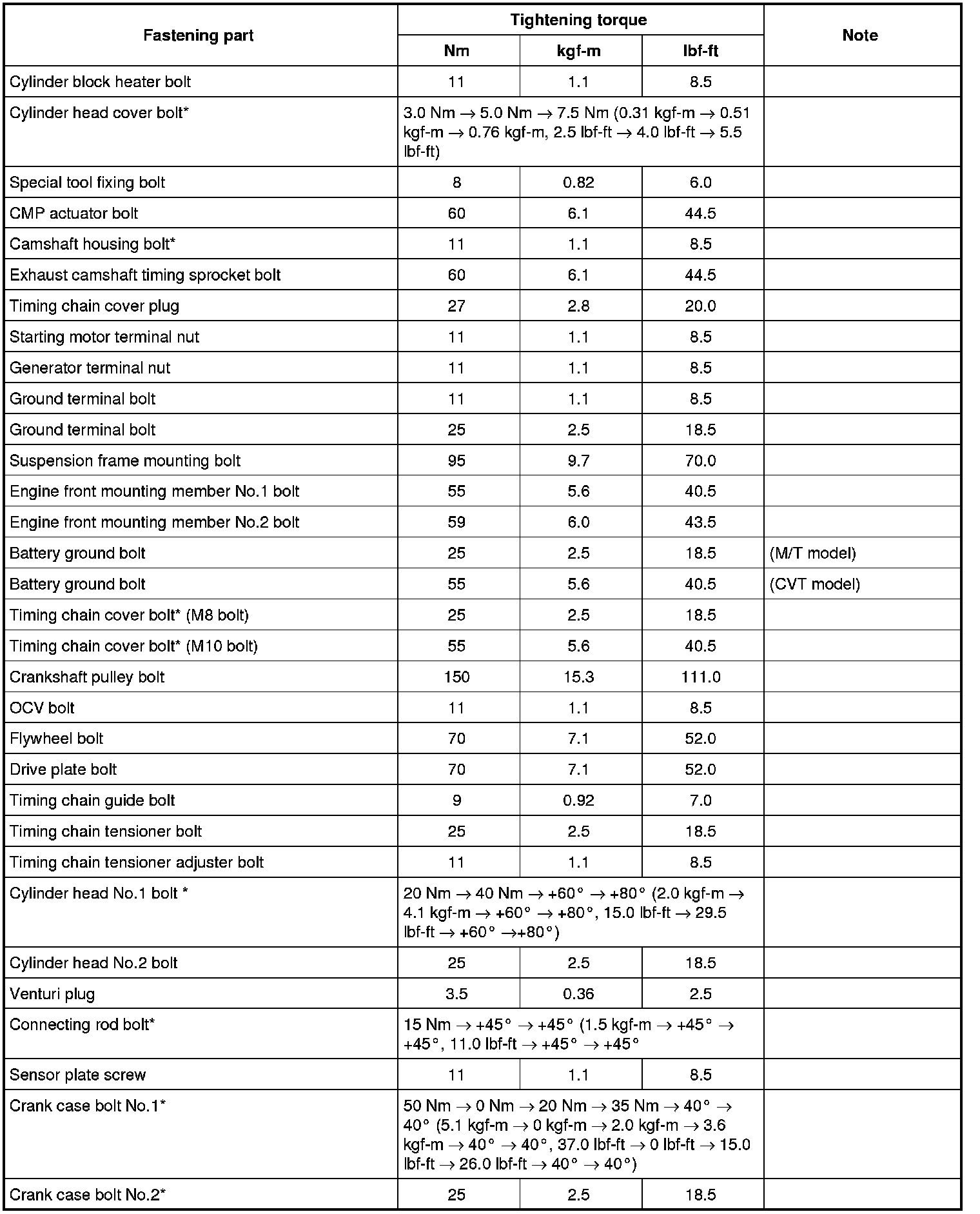

Tightening Torque Specifications

NOTE:

For fastener(s) with * (asterisk) below, refer to the specified procedure in "Repair Instructions".











NOTE:

The tightening torque(s) also specified in:

Air Cleaner Components Air Cleaner Components

Cylinder Head Cover Components Cylinder Head Cover Components

Camshaft and Tappet Components Camshaft and Tappet Components

[1][2]Diagrams Engine Mounting Components

Timing Chain Cover Components Timing Chain Cover Components

Timing Chain and Chain Tensioner Components Timing Chain and Chain Tensioner Components

Valve and Cylinder Head Components Valve and Cylinder Head Components

Components Piston, Piston Ring and Connecting Rod Components

Components Main Bearing, Crankshaft and Cylinder Block Components

Reference:

For the tightening torques of fasteners not specified in this section, refer to Fastener Information Fasteners Information.
