Removal and Replacement

Front Fog Light Removal and Installation (If Equipped)

CAUTION:

Touching a hot bulb may cause a burn.

Do not touch any bulb when it is hot.

NOTE:

If you touch the glass surface of a bulb with your bare hand, the oils from your skin can cause the bulb to overheat and burst when the lights are on.

Do not touch any bulb when removing the front fog light.

Removal

1) Disconnect negative (-) cable at battery.
2) Remove front bumper. Refer to [1][2]Diagrams Front Bumper and Rear Bumper Components.

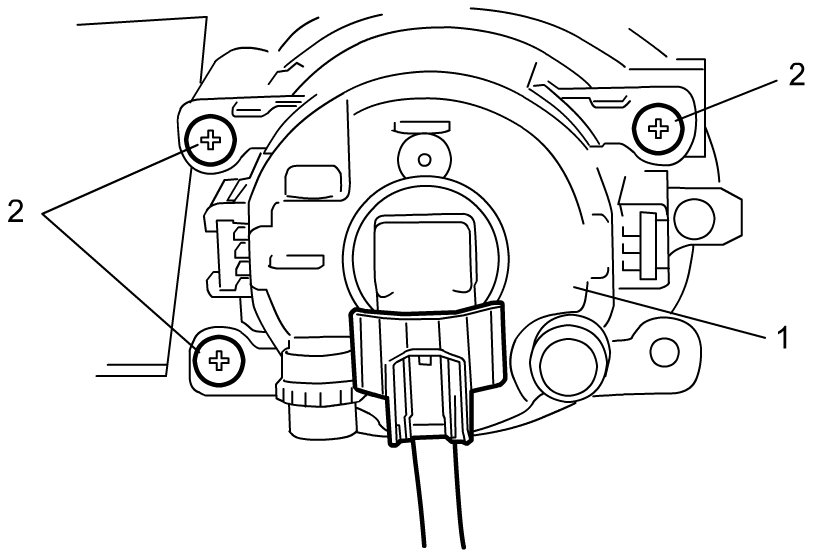

3) Disconnect coupler from fog light assembly (1).
4) Remove front fog light as follows.
Hatchback

- Detach fog light pushing clips to arrow direction, and remove front fog light.





Sedan

- Remove fog light screws (2), and remove front fog light.






Installation

Reverse removal procedure for installation nothing the following:

- After installing, adjust aiming referring to Procedures Front Fog Light Aiming Adjustment with Screen (If Equipped).
