Advanced Air Bag

DTC Check

1) Turn ignition switch to OFF position.

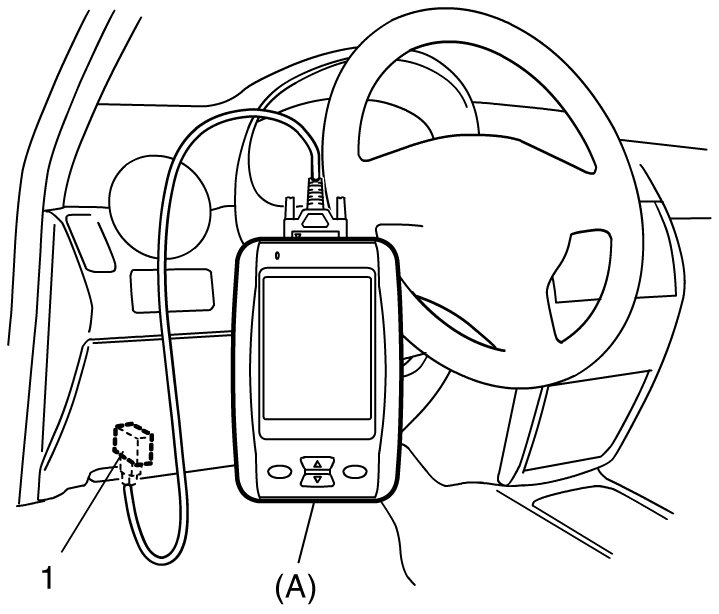

2) Connect SUZUKI scan tool to data link connector (DLC) located on underside of instrument panel at driver's seat side.
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)

3) Turn ignition switch to ON position.
4) Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down. Refer to SUZUKI scan tool operator's manual for further details.

If communication between scan tool and SDM is not possible, check if scan tool is communicable by connecting it to SDM in another vehicle. If communication is possible in this case, scan tool is in good condition. Then check data link connector and serial data line (circuit) in the vehicle with which communication was not possible.

If connector and circuit are OK, check that power supply and ground circuits of SDM and DLC are in good condition referring to Testing and Inspection SDM Power Supply and Ground Circuit Check:Advanced Air Bag.
5) After completing the check, turn ignition switch to OFF position and disconnect SUZUKI scan tool from data link connector (DLC) (1).
