System Specifications

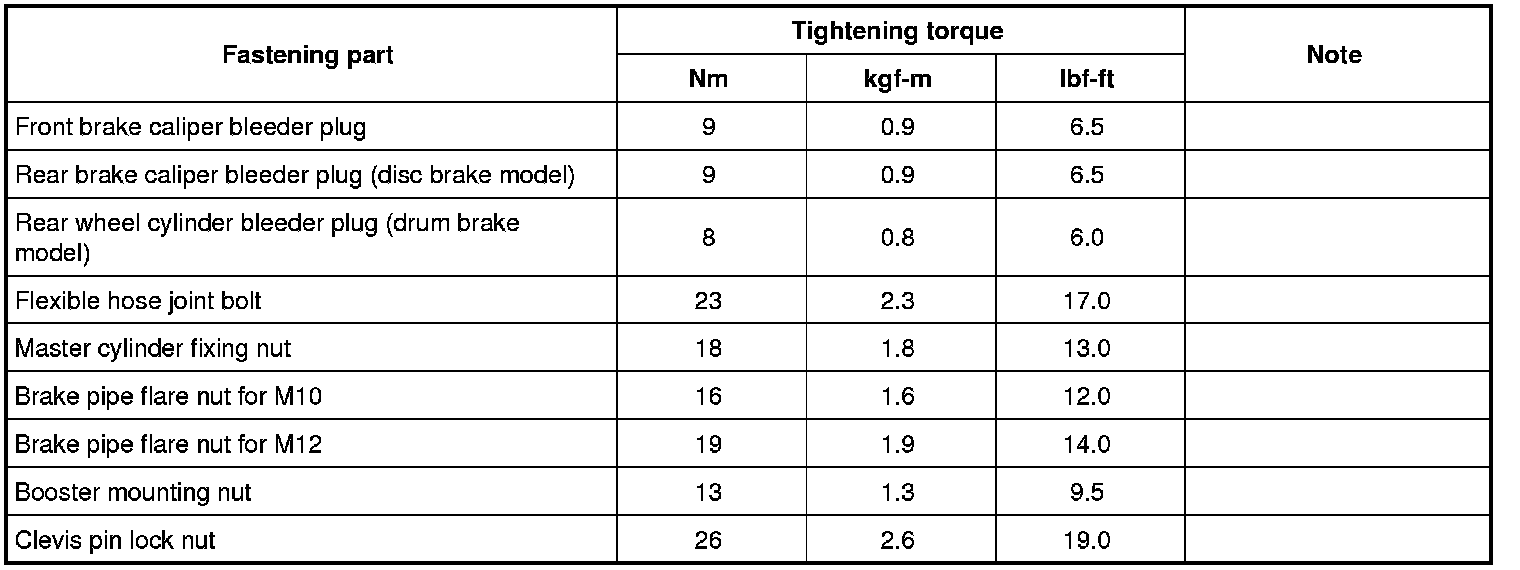

Tightening Torque Specifications







NOTE:

The tightening torque(s) also specified in:

Front Brake Hose and Pipe Components Front Brake Hose and Pipe Components

Rear Brake Hose and Pipe Components Rear Brake Hose and Pipe Components

Master Cylinder and Brake Booster Components Master Cylinder and Brake Booster Components

Reference:

For the tightening torques of fasteners not specified in this section, refer to Fastener Information Fasteners Information.
