Alignment - Camber Adjusting Mechanism Discontinued

9225toyota01

REFERENCE
SUSPENSION
NUMBER
005
DATE
01-19-90
MODEL
ST62/65/66/67


TITLE

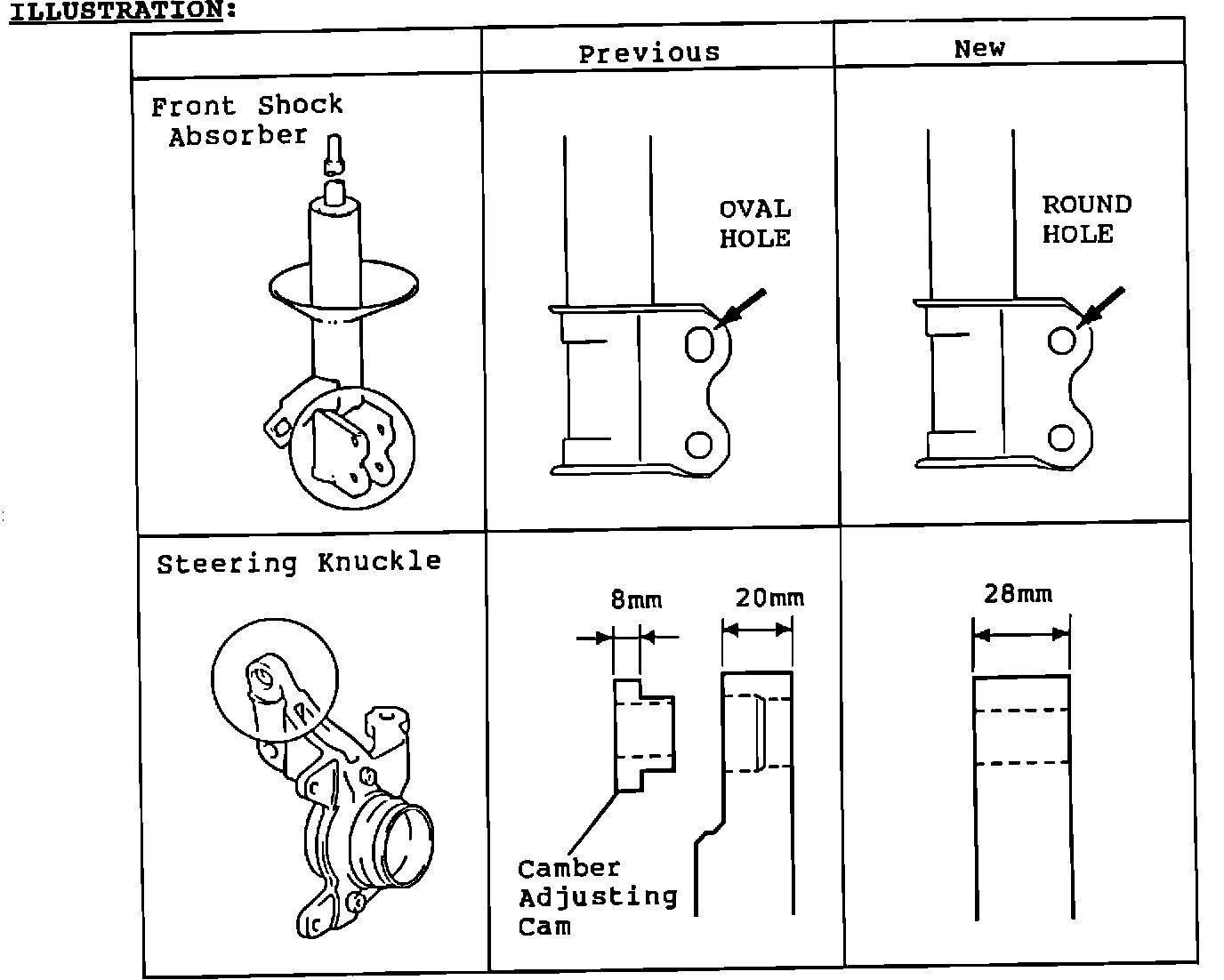

FRONT SHOCK ABSORBER AND STEERING KNUCKLE





^ The front camber adjusting mechanism was discontinued for this model beginning in November 1987 production.
^ Replacement parts for vehicles produced before the production change have been standardized with the newer design.


PRODUCTION EFFECTIVE:

From VIN: Production Date:

JT2ST6#*J#7220892 November 1987

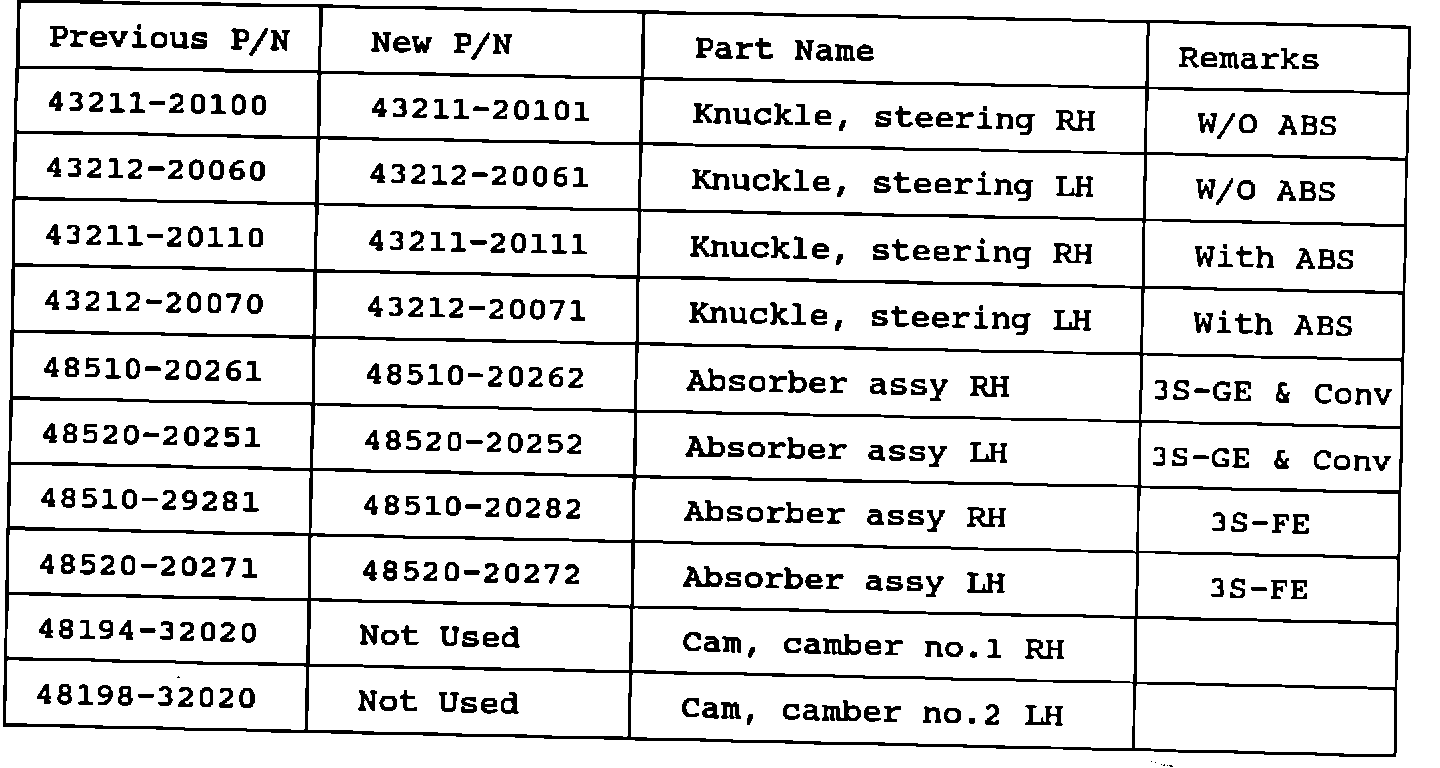

PART NUMBER INFORMATION:


Note:

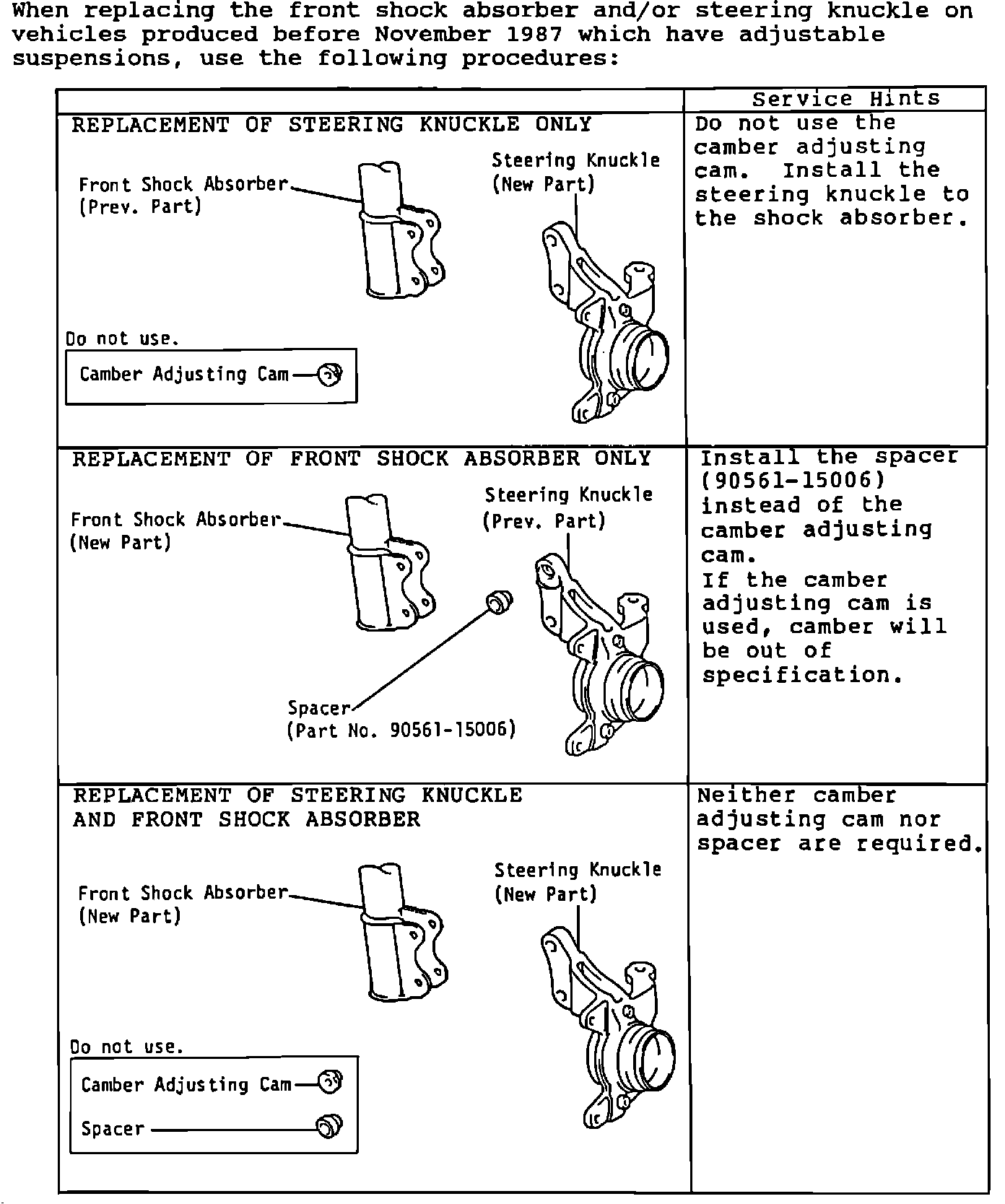

When repairing a vehicle produced before November 1987, see the instructions on the INTERCHANGEABILITY CHART. Use new part numbers on all vehicles produced after November 1987.





INTERCHANGEABILITY
