Oil Pump, Engine

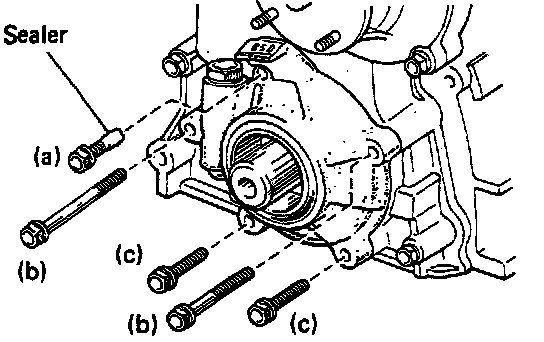

Torque:

(a) 18 ft-lb (25 N-m)
(b) 14 ft-lb (19 N-m)
(c) 9 ft-lb (13 N-m)

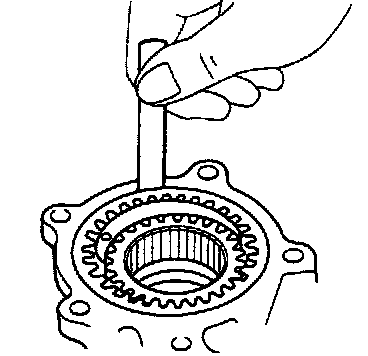

Body Clearance

Maximum clearance: 0.2 mm (0.008 in.)

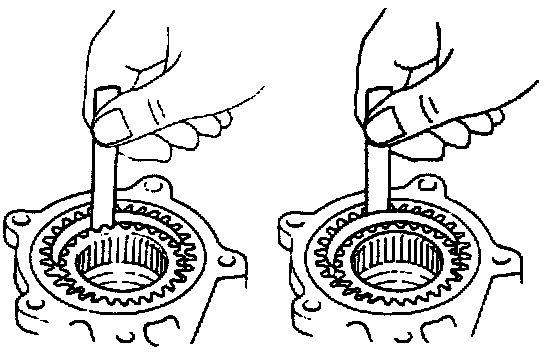

Tip Clearance

Maximum clearance: 0.3 mm (0.012 in.)

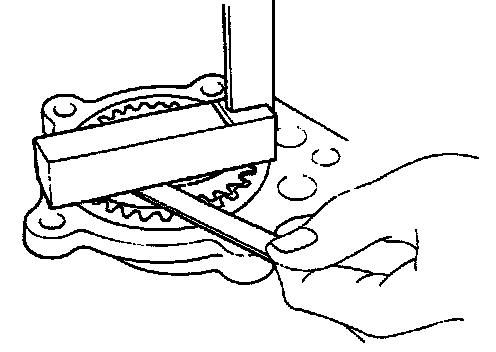

Side Clearance

Maximum clearance: 0.15 mm (0.006 in.)
