M/T Technical Data

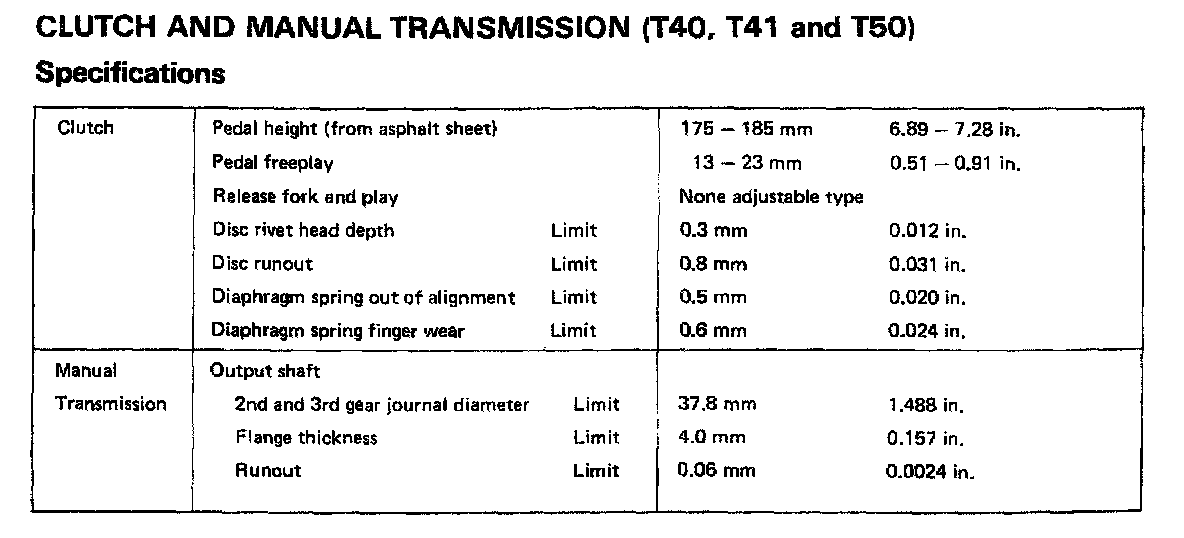

T40,T41 & T50 4/5 -spd M/T, Clutch/Transmission Clearances:

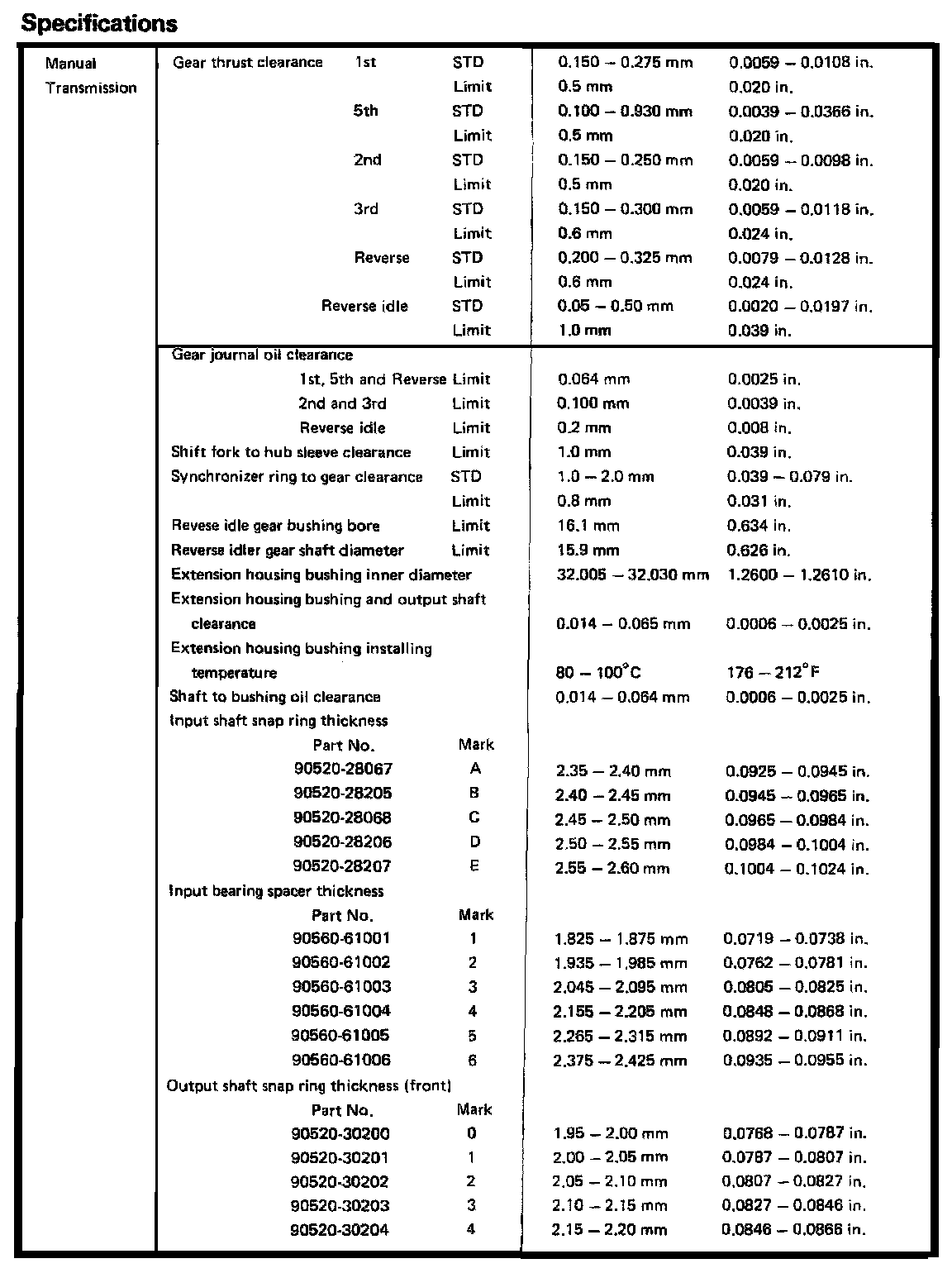

T40/T41 4-spd, & T50 5-spd M/T, Transmission Clearances:

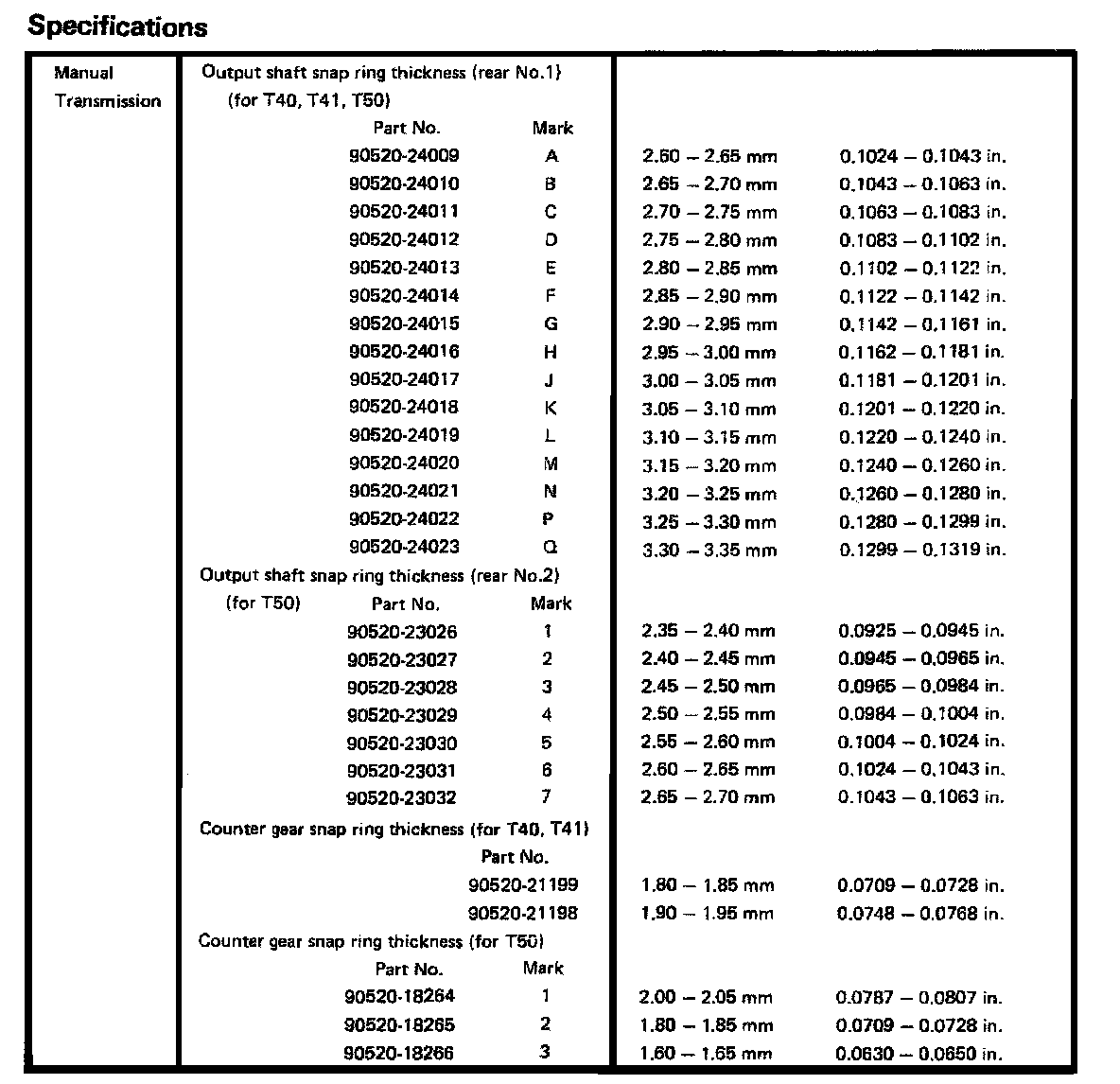

T40/T41 4-spd & T50 5-spd M/T, Output Shaft Clearances:
