Blower Motor Switch: Service and Repair

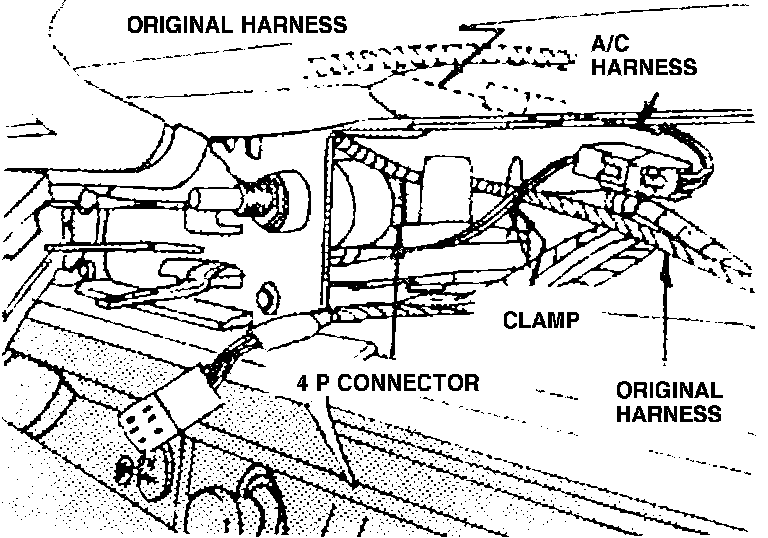

Fig. 1 Blower Motor Switch Connector Identification.:
1.
Disconnect battery ground cable and remove control lever knobs.
2.
Remove ashtray and control panels.
3.
Disconnect four-pole connector and remove control switch,
Fig. 1. 4.
Reverse procedure to install.
