Condenser Fan: Testing and Inspection

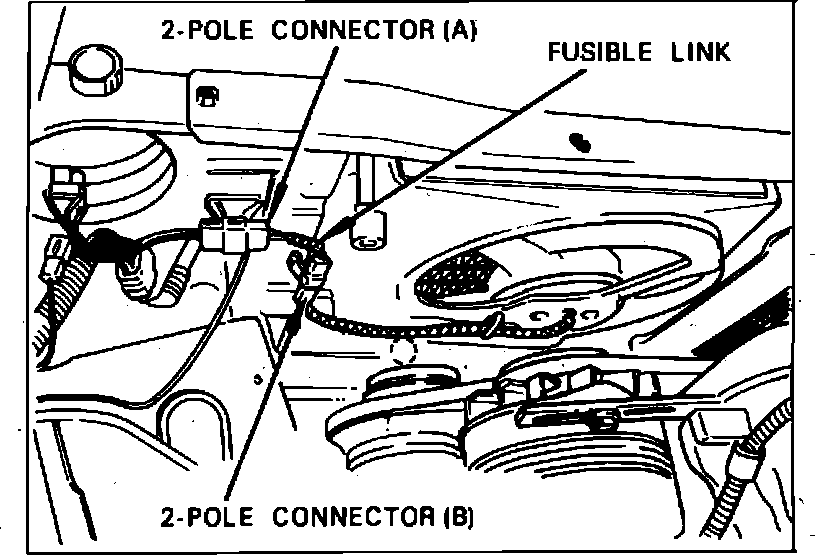

Fig. 6 Checking Continuity Of Condenser Fan Fusible Link.:
1.
Check continuity of fusible link (A),
Fig. 6. If defective, replace.
2.
Check for smooth rotation of fan motor by applying 12V battery voltage to fan motor connector (B). Motor should operate smoothly at 6.7 amps. standard current. If motor is defective, replace.
