Refrigerant Pressure Sensor / Switch: Service and Repair

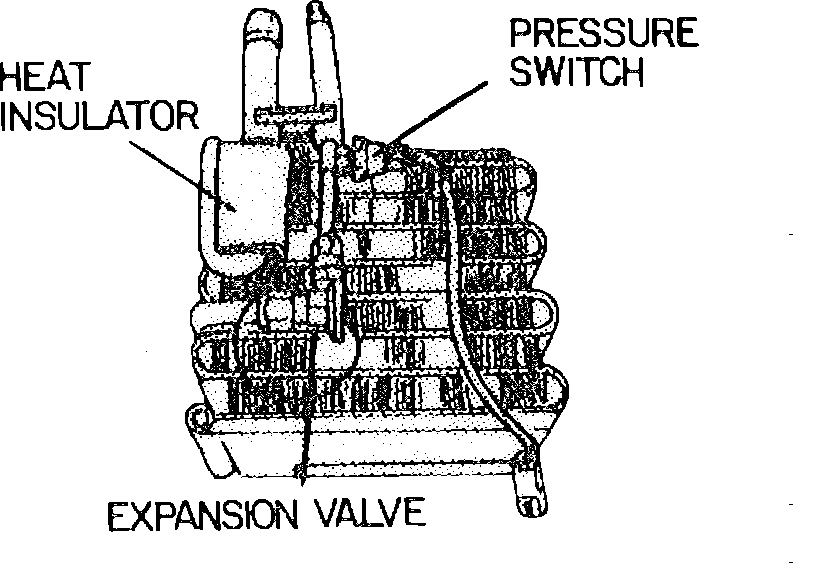

Fig. 4 Removing Heat Insulator And Clamp.:
1.
Remove evaporator core from evaporator case, refer to "EVAPORATOR."
2.
Remove
pressure switch wire lead from pressure switch,
Fig. 4. 3.
Remove pressure switch from evaporator liquid line.
4.
Reverse procedure to install.
