Bolts - Standard Torque Specifications
REF.: PRODUCT GENERAL INFORMATION
NO.: PG95-006
DATE: JULY 21, 1995
MODEL: ALL MODELS
STANDARD BOLT TORQUE SPECIFICATIONS
The bolt mark and class identification information is currently not included in the Standard Bolt Torque Specifications found in the Introduction section of each Toyota Repair Manual.

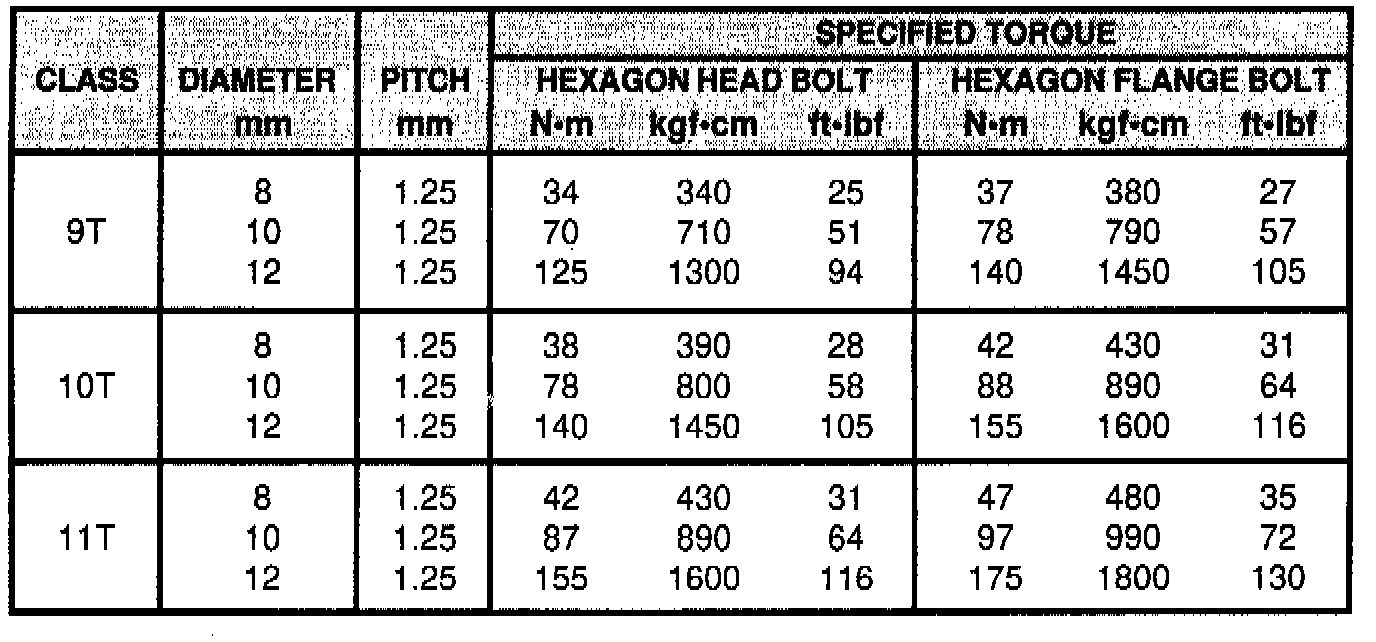

SPECIFIED TORQUE FOR STANDARD BOLTS
