Transmission Control Systems: Diagrams

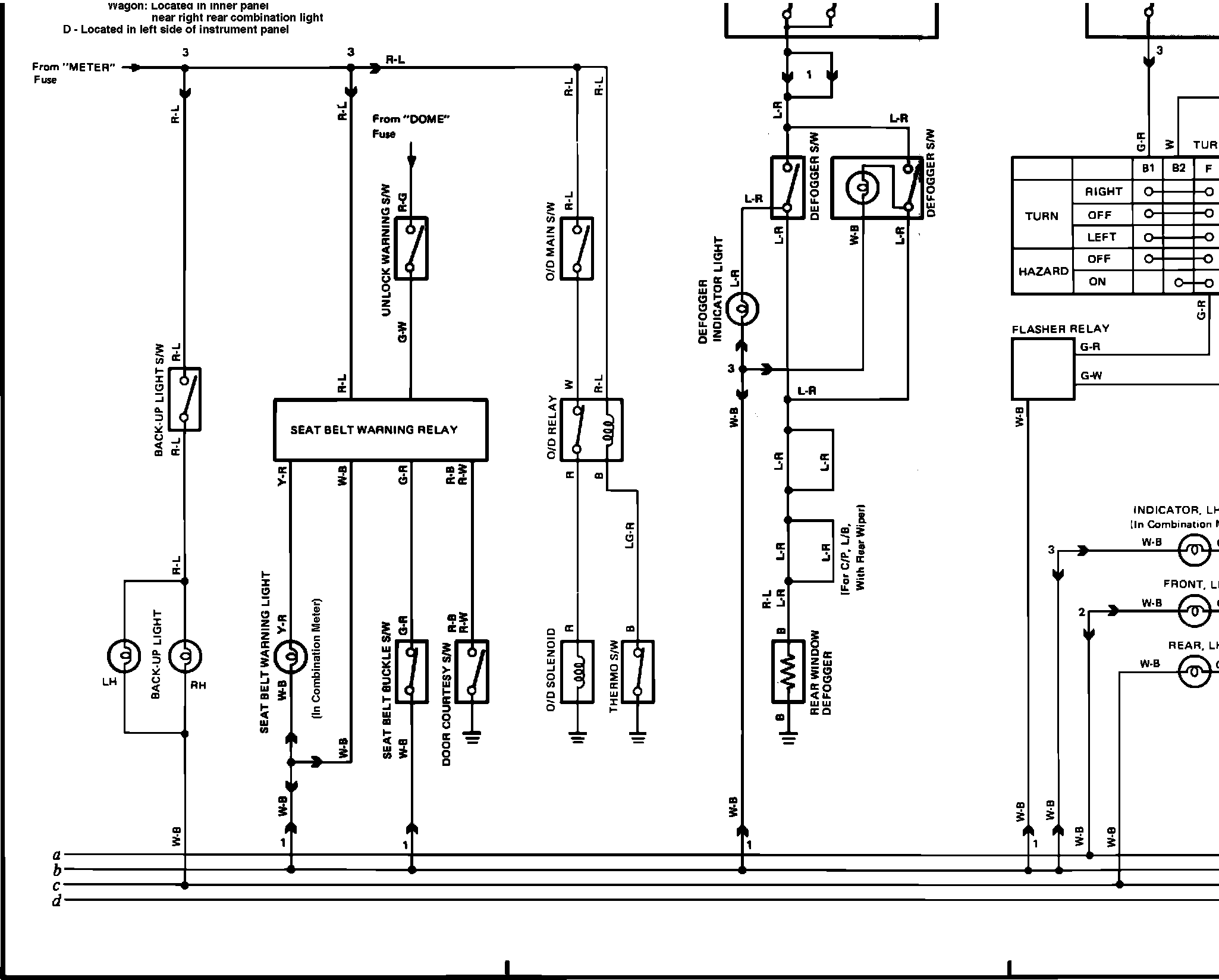

a��&+'+P=+jJ+"S+Fig. 19b Back-Up Light, Seat Belt, Overdrive, Rear Defogger, Turn Signal, Hazard, Horn, Stop Light, Rear Wiper & Washer, Windshield Wiper & Washer, and Taillight & Illumination Wiring Diagram:

Transmission Control Systems: Diagrams

a�*��*&+'+P=+jJ+"S+Fig. 19b Back-Up Light, Seat Belt, Overdrive, Rear Defogger, Turn Signal, Hazard, Horn, Stop Light, Rear Wiper & Washer, Windshield Wiper & Washer, and Taillight & Illumination Wiring Diagram:

a��&+'+P=+jJ+"S+Fig. 19b Back-Up Light, Seat Belt, Overdrive, Rear Defogger, Turn Signal, Hazard, Horn, Stop Light, Rear Wiper & Washer, Windshield Wiper & Washer, and Taillight & Illumination Wiring Diagram:
