Control Assembly: Service and Repair

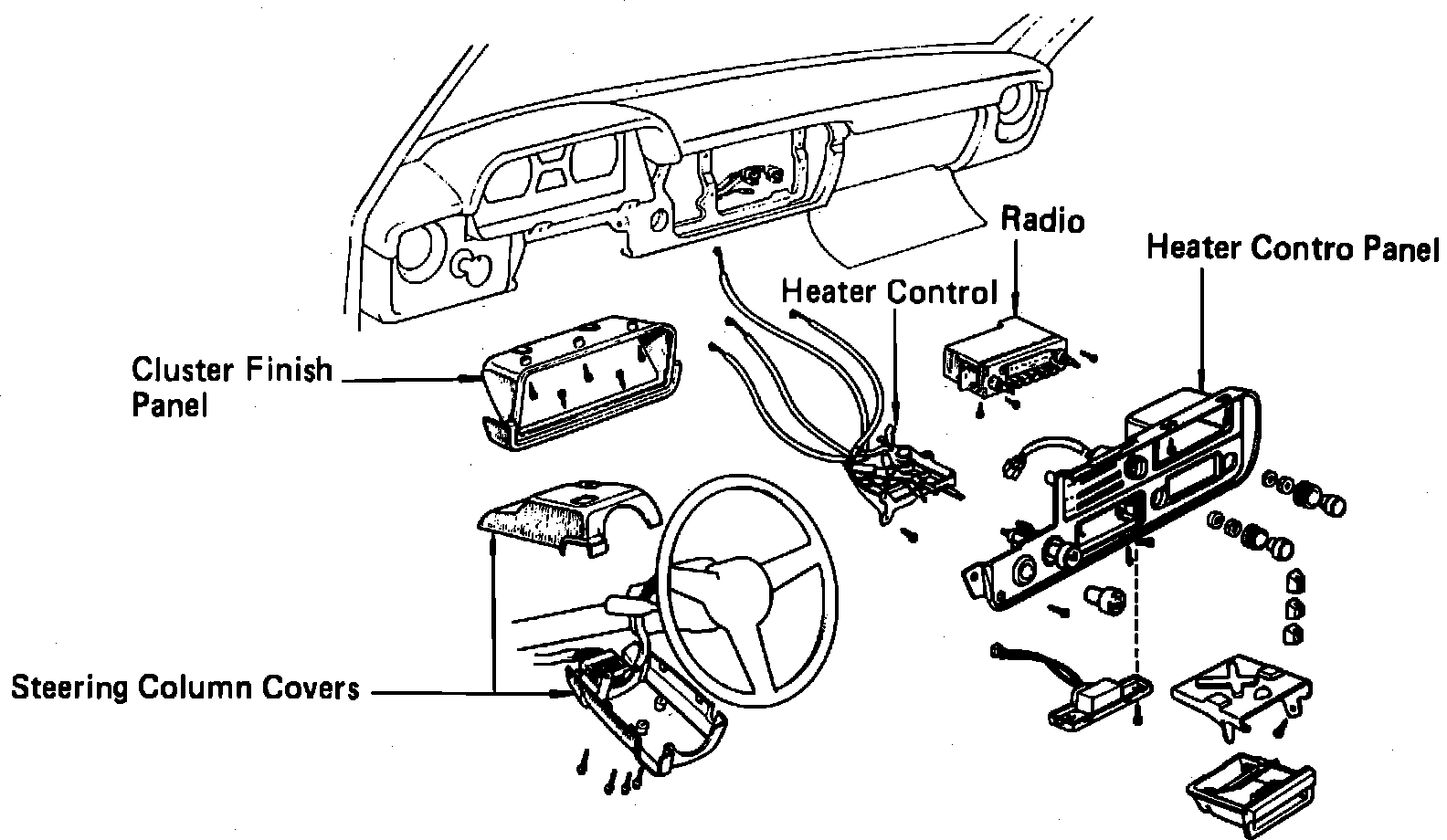

Fig. 1 Removing Control Assembly.:
1.
Disconnect battery ground cable.
2.
Remove instrument cluster finish panel, heater control panel and radio,
Fig. 1. 3.
Disconnect control cables from clamps.
4.
Remove control cables, then the
control assembly retaining screws and the control assembly.
5.
Reverse procedure to install.
