Main Switch Circuit (Cruise Control Switch)
Main Switch Check:
1.
Check power source line between terminal 2 and ground.
2.
Check ground connection between terminal 4 and ground.
3.

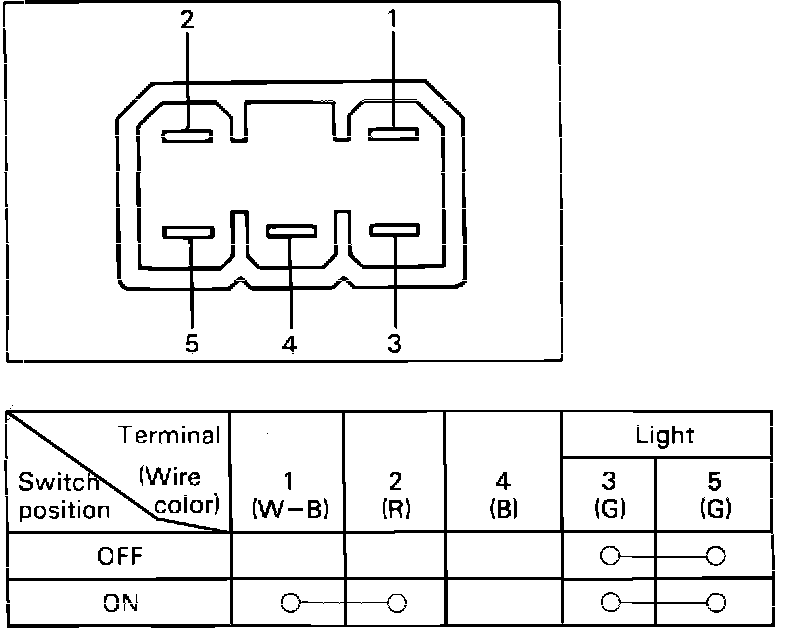

Check continuity between terminals as shown on image chart.
4.
If not as specified, replace switch.
