Doors - Back Door Lock Release Modifications
BODY 011 6-27-84 SV1#
TITLE
BACK DOOR LOCK RELEASE MODIFICATIONS

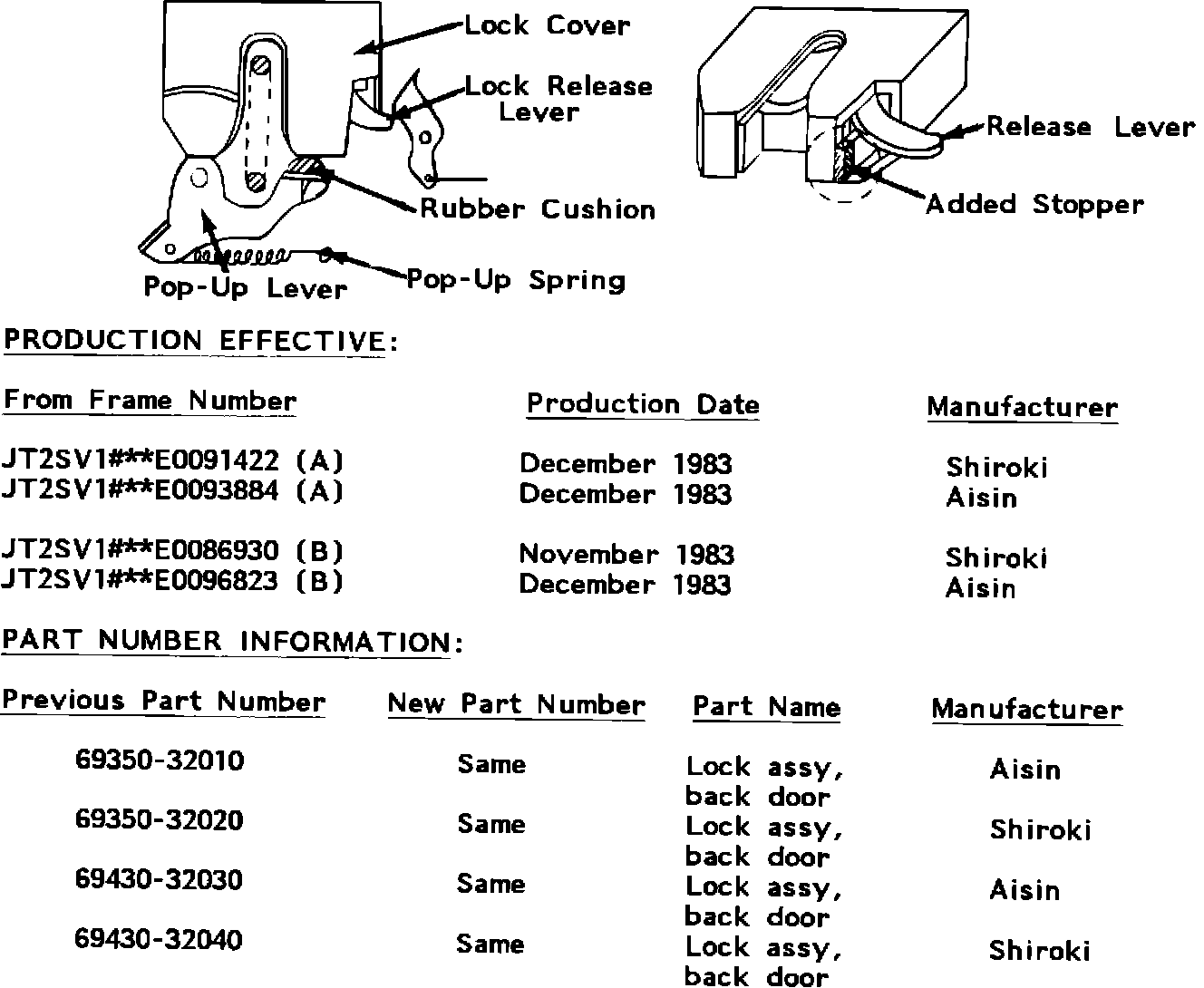

The following changes have been made to allow a smoother release of the back door.
A.
A stopper has been added to the back door lock cover to prevent deformation of the pop-up lever rubber cushion.
B.
The tension of the pop-up spring has been increased.
