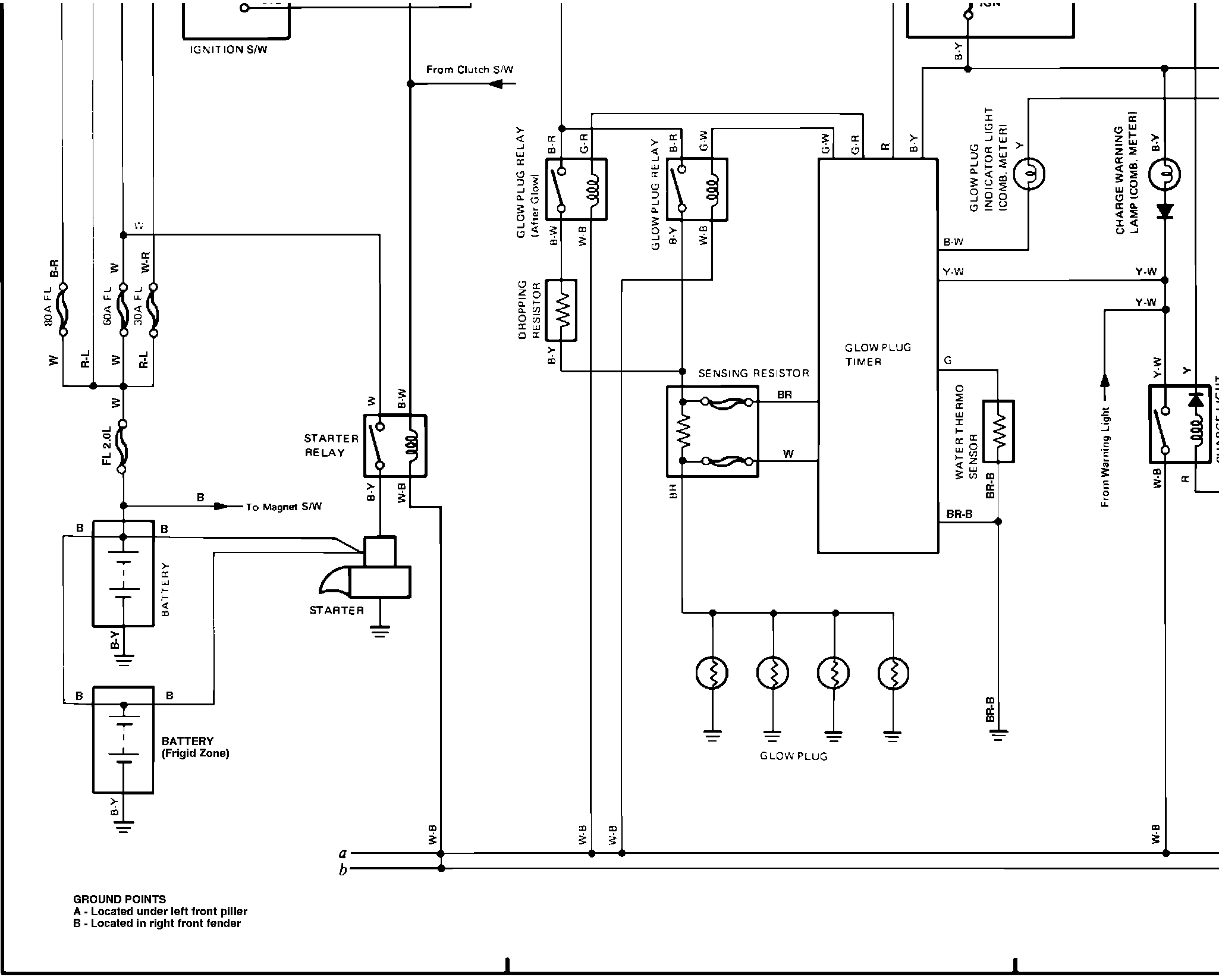

Glow Plug System: Diagrams

PR��m�H��=��/��Ҿ��ÏFig. 35a Power Supply, Starting System, Glow Plug System, Charging System, Emission Control System, Fuel Heater, Heating & A/C, Combination Meter, and Back-Up Lights Wiring Diagram:

Glow Plug System: Diagrams

PR��m�H��=��/��Ҿ��ÏFig. 35a Power Supply, Starting System, Glow Plug System, Charging System, Emission Control System, Fuel Heater, Heating & A/C, Combination Meter, and Back-Up Lights Wiring Diagram:

PR��m�H��=��/��Ҿ��ÏFig. 35a Power Supply, Starting System, Glow Plug System, Charging System, Emission Control System, Fuel Heater, Heating & A/C, Combination Meter, and Back-Up Lights Wiring Diagram:
