M/T - Input Shaft Bearing Modifications
REFERENCE TRANSMISSION AND CLUTCHNUMBER 020 (REVISED)
DATE 5-23-84
MODEL LN55/65 RN60/65 YR2#

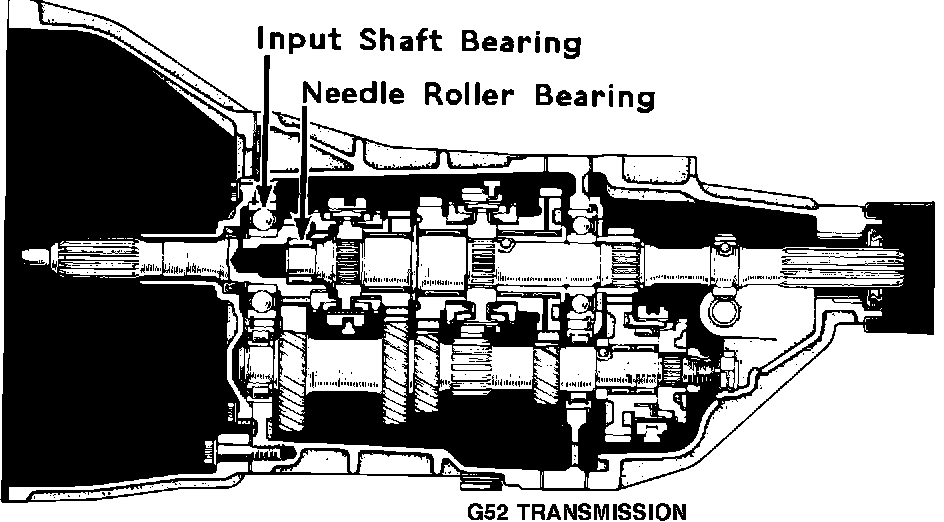

G52 TRANSMISSION:
Bearing Modifications:
The input shaft bearing has been changed from a ball type to a sealed type and the needle roller bearing of the input shaft has been modified in shape..
Due to these changes, the following related parts have also been modified.
PRODUCTION EFFECTIVE:
From Transmission Number
Production Date
401-00748
January 1984
From Frame Number
Production Date
JT4LN55**E0001777 January 1984
JT4LN55**E5000502 January 1984
JT4LN65D*E5000593 January 1984
JT4RN60**E5009029 January 1984
JT4RN60**E0000555 January 1984
JT4RN65**E5020489 January 1984
JT4RN65**E0002015 January 1984
JT3YR2#**E5016134 January 1984
January 1984
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Number Model
*33029-28010 33029-28011 Shaft set, input LN5#/65
*33301-28010 33301-28011 Shaft sub-assy, input RN6#
*90363-32016 90363-32024 Bearing (for input shaft RN6#,
front) LN5#/65
*90361-06047 90361-06002 Roller bearing, input RN6#,
shaft needle LN5#/65
*33321-35110 33321-35111 Shaft, output RN6#,
LN65
*33421-28010 33421-26071 Gear counter RN6#
*33131-28010 33131-26020 Retainer (for front RN6#,
bearing) LN5#/65
*33301-28020 33301-28021 Shaft sub-assy, input YR2#
*90363-32016 90363-32024 Bearing (for input shaft YR2#
front)
*90361-06047 90361-06002 Roller Bearing, input YR2#
shaft needle
**33321-26041 33321-26050 Shaft, output YR2#
*33421-28020 33421-28021 Gear, counter YR2#
*33131-28010 33131-26020 Retainer (for front YR2#
bearing)
* The new parts are not interchangeable with the previous parts. ** The new part is interchangeable with the previous part.
