Motor Check

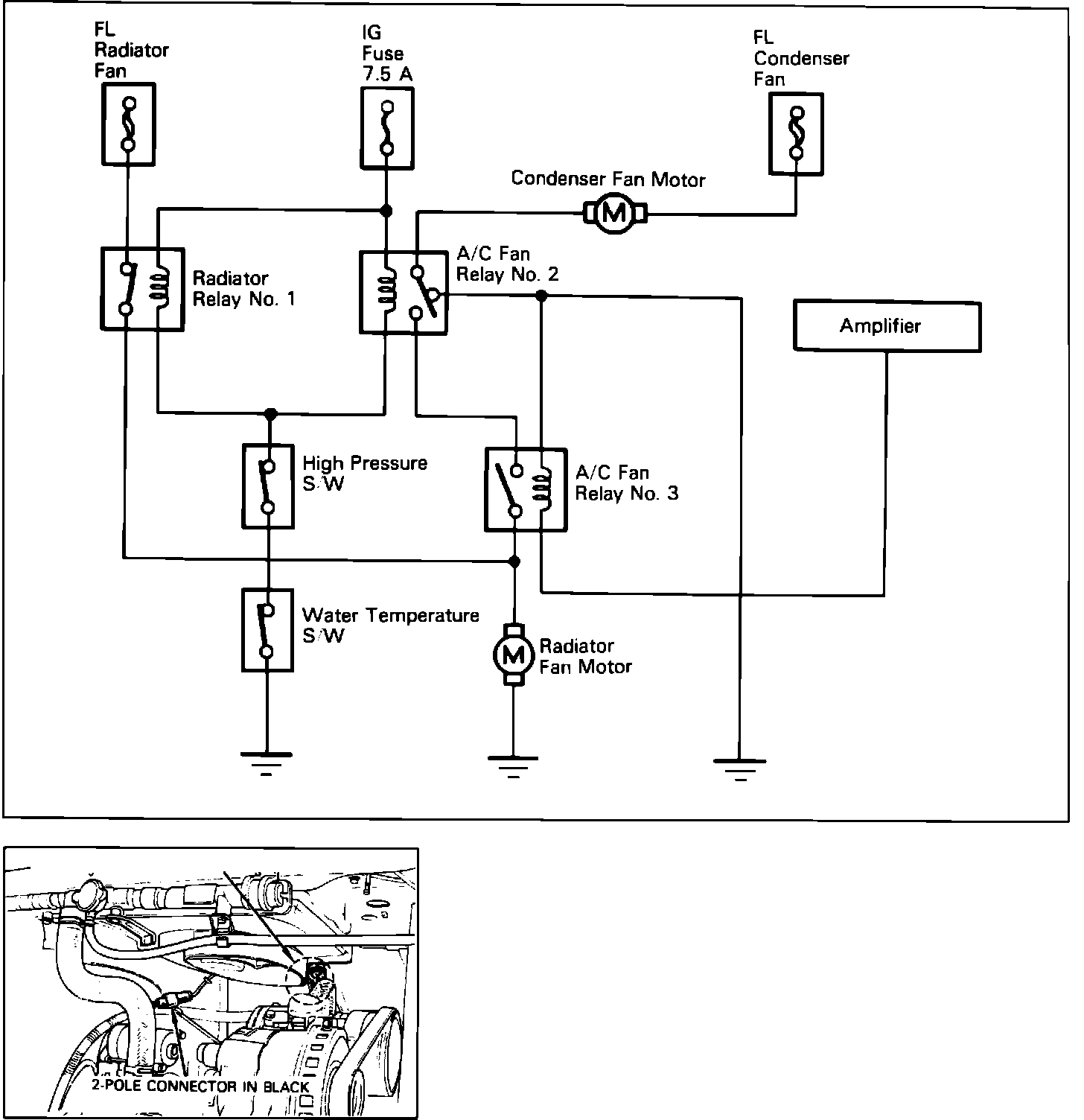

Condenser Fan Motor Circuit:
1.
Disconnect negative battery cable and unplug motor connector.
2.
Apply 12V across motor terminals and check that motor turns smoothly.
3.
Check that current draw is 6.7 ± 0.7 amps.
4.
If not as specified, replace motor.
