Vehicle Speed Sensor: Testing and Inspection
ANALOG METERSpeed Sensor Check (Analog Meter):
1.

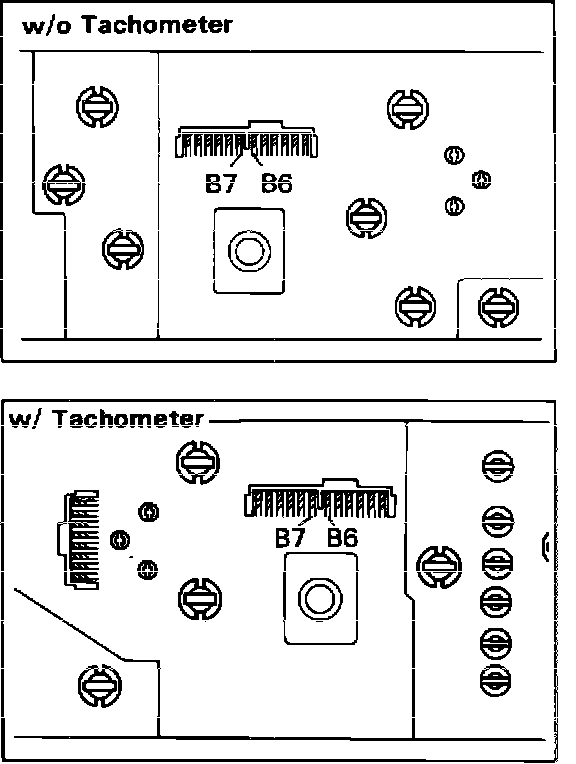

Connect ohmmeter between terminals B6 and B7.
2.
Turn speedometer shaft and check that continuity is indicated 4 times per revolution.
3.
If not as specified, replace sensor.

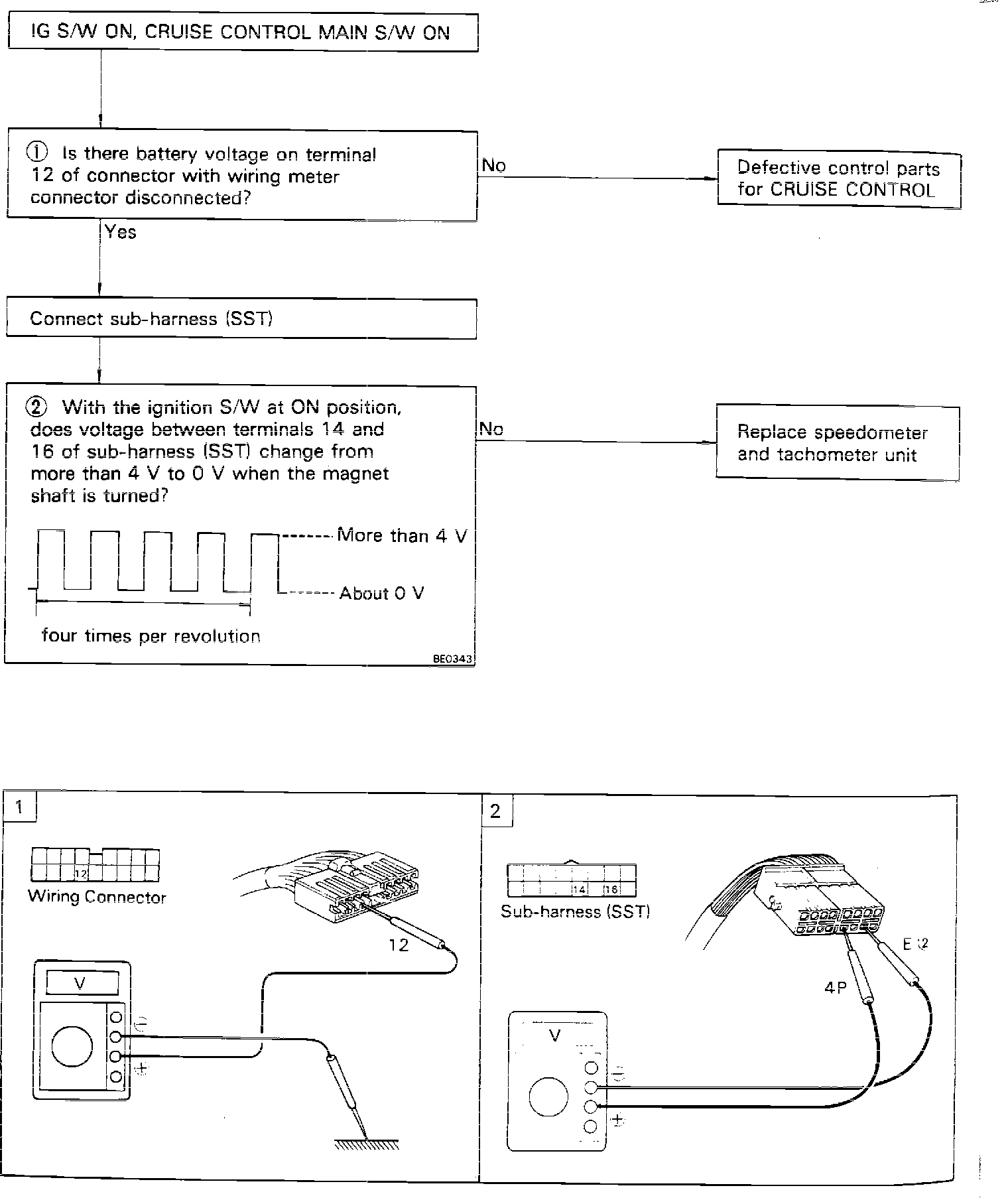

DIGITAL METERDigital Speed Sensor Check:
