Control Module HVAC: Testing and Inspection

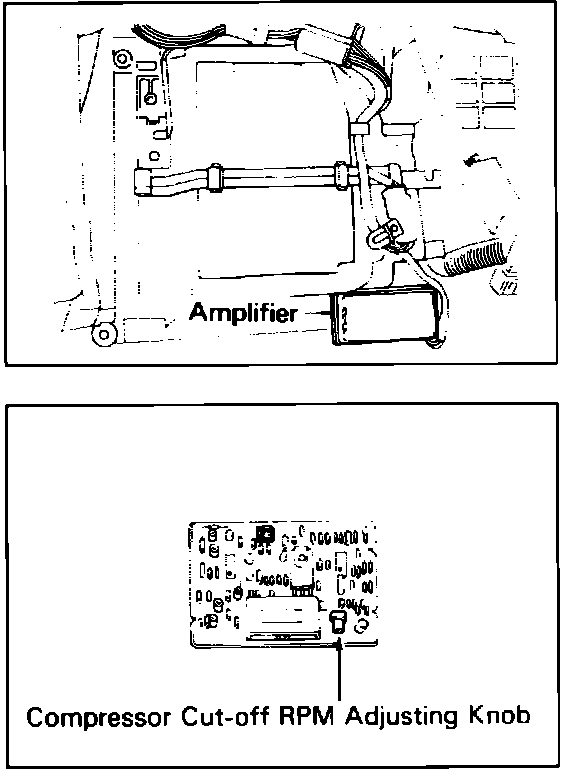

A/C Amplifier Inspection:
ENGINE SPEED DETECTING CIRCUIT (2S-E ENGINE)1.
Run engine with A/C operating. Check that compressor clutch disengages at:
Cut-Off rpm: 600 - 700 rpm2.
If cut-off rpm is too high, turn amplifier adjust knob clockwise to adjust.
3.
If cut-off rpm is too low, turn amplifier adjust knob counter clockwise to adjust.
