Antitheft - Intrusion Monitoring System Electrical

REFERENCE ACCESSORIES
NUMBER 007
DATE 12-2-85
MODEL RA, SV, AW

ELECTRICAL CONNECTIONS 1985 MODEL YEAR:

TITLE: INTRUSION MONITORING SYSTEM (1985) - ELECTRICAL CONNECTION CHART

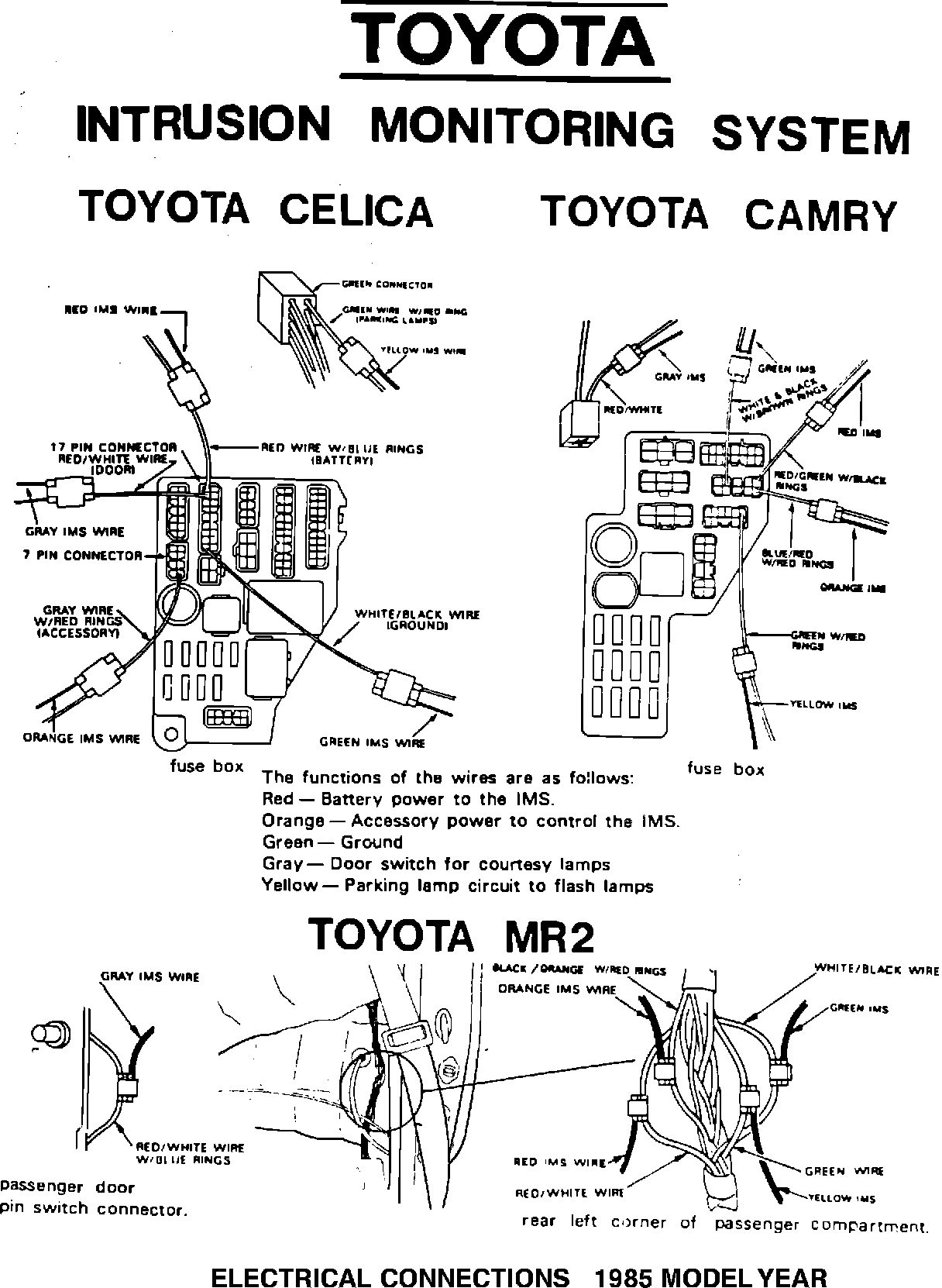

Attached for your information on the reverse side of this bulletin are three IMS electrical connection diagrams. These are for the 1985 MR2, Celica and Camry models. As a normal trouble-shooting procedure, always use the IMS tester, OTC P/N 00203-00861. If all the function checks on the tester prove positive, the electrical connections to the module are correct. Please refer to the procedures included with the IMS tester and to Toyota Service Bulletin Number 002, Accessories Section, for additional trouble-shooting information.
