Oxygen Sensor: Testing and Inspection

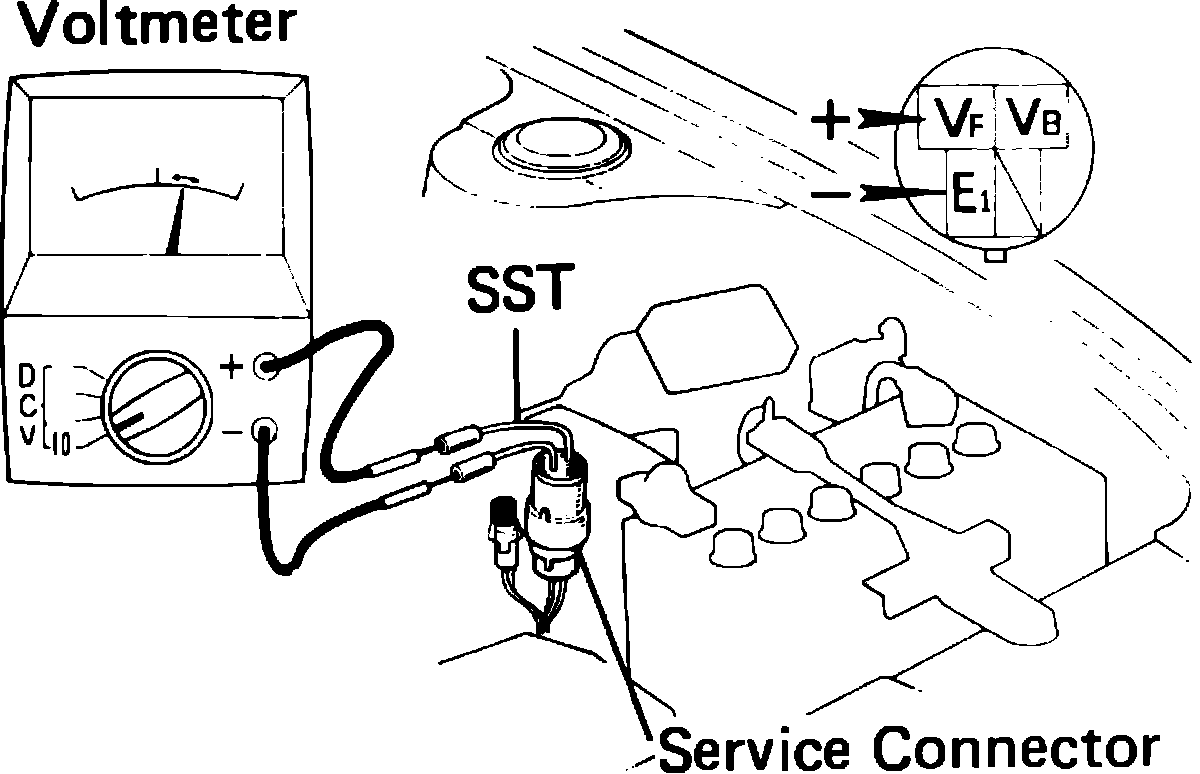

Fig.41 Checking Oxygen Sensor with Voltmeter:

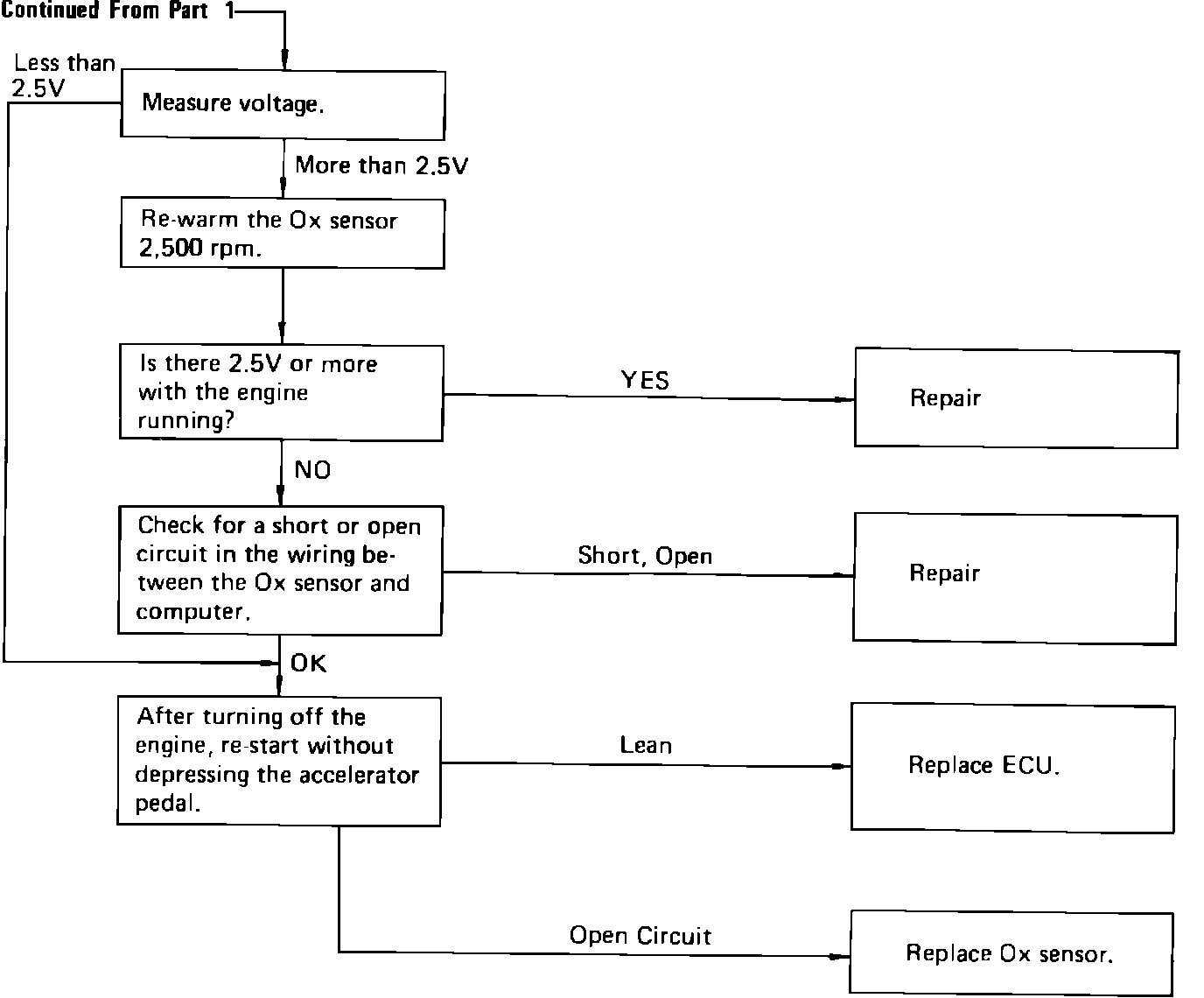

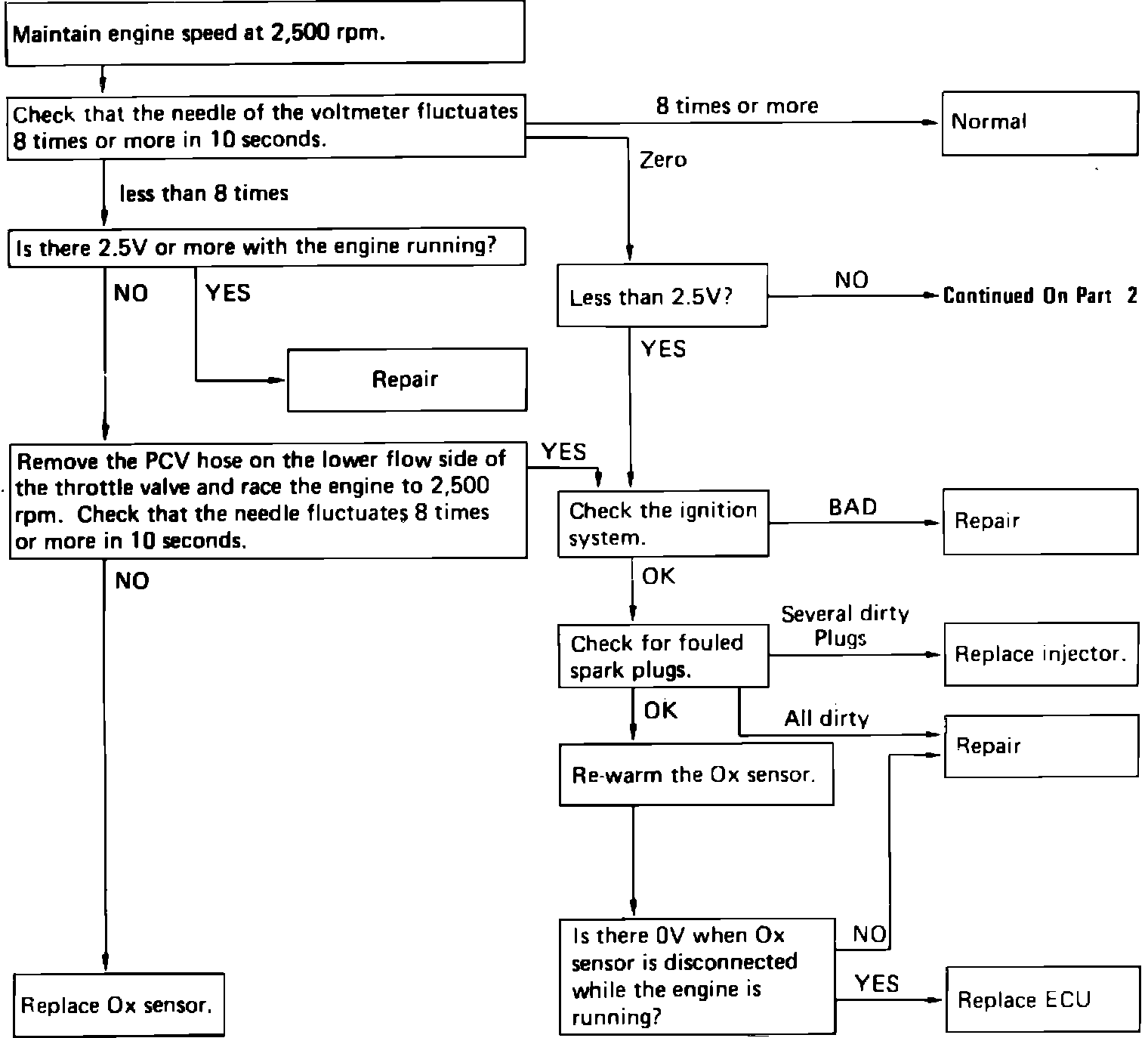

Fig. 69 Oxygen sensor diagnosis chart:
Fig. 69 Oxygen sensor diagnosis chart:
1.
Run engine until it reaches normal operating temperature, then connect voltmeter to EFI service connector as shown in
Fig 41. 2.
Run engine at 2500 RPM for 2 minutes to warm
oxygen sensor.
3.
Follow diagnostic chart,
Fig. 69, and repair system as necessary.
