Control Module HVAC: Description and Operation

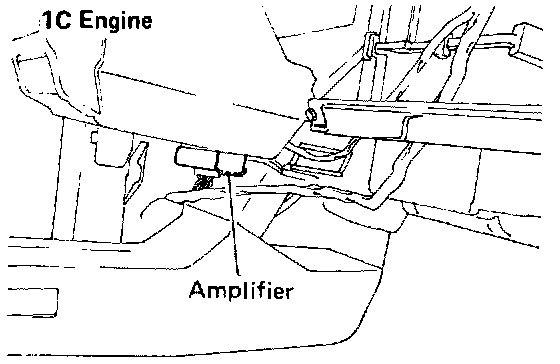

AC Amplifier Location:
PURPOSE The AC Control Amplifier disengages the compressor clutch during idle speed to promote better idle quality. It also controls clutch ON and OFF based on signals from the thermistor.
LOCATION Under the mid-section of the dash.
