Speed Sensor

1. On analog meters, proceed as follows:
a. Remove combination meter.

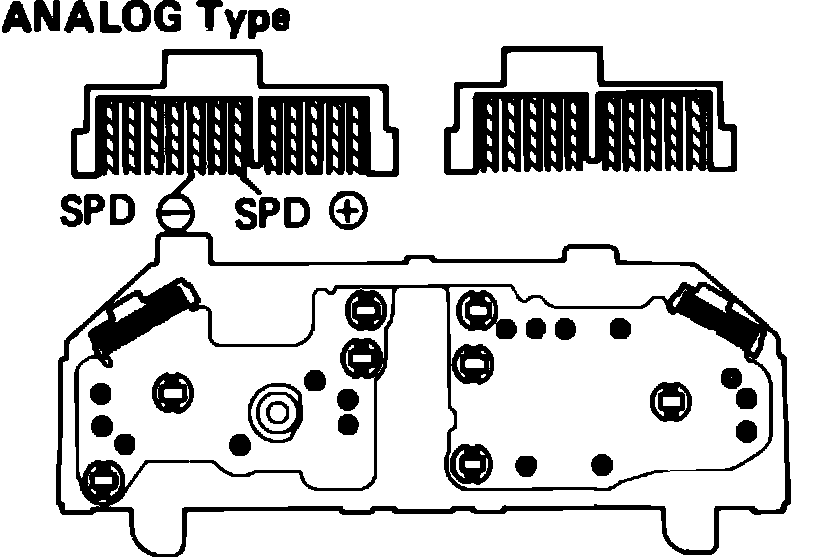

Fig. 27 Analog speed sensor combination meter:

b. Connect a suitable ohmmeter between terminals SPD (+) and SPD ( - ), Fig. 27.
c. Revolve meter shaft, then check that indicator repeatedly deflects from zero to infinity.
2. On digital meters, proceed as follows:
a. Remove combination meter with connecting wiring harness.
b. Turn ignition switch ``On.''

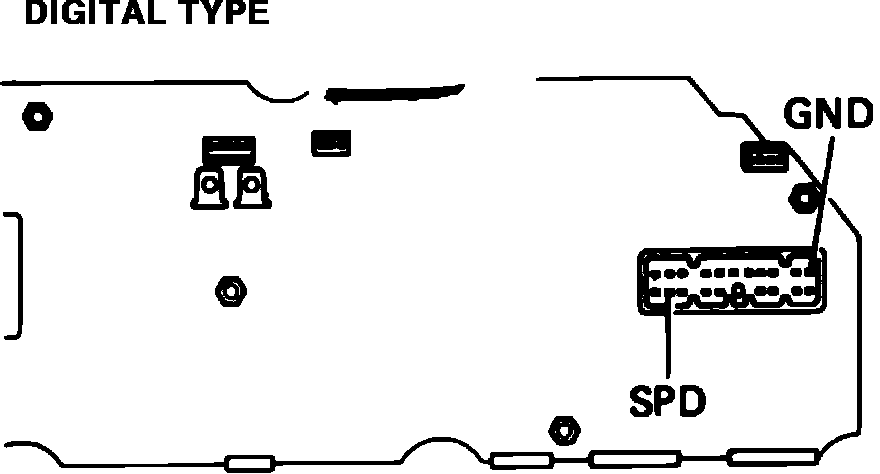

Fig. 28 Digital speed sensor combination meter:

c. Connect a suitable voltmeter between SPD and GND, Fig. 28.
d. Revolve meter shaft, then check that indicator repeatedly deflects from 0-2 volts.
