Diagnosis System

Diagnosis System:

OUTPUT OF DIAGNOSIS CODES

1. INDICATE TYPE A CODE
(a) Turn the ignition switch on.
(b) Turn the main switch and set/coast switch on at the same time.

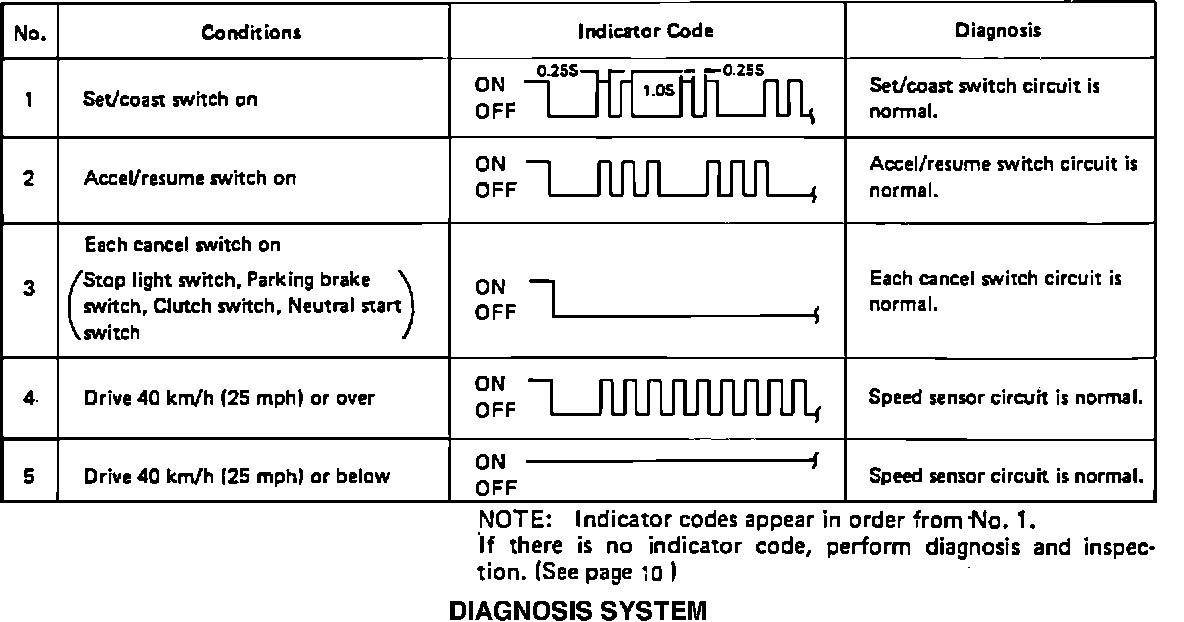

(c) Meet the conditions listed below.
(d) Read the diagnosis code on the main switch indicator.



2. INDICATE TYPE B CODE
(a) Do not turn ignition switch and main switch off.
(b) Turn the set/coast switch on three times within two seconds.
(c) Read the diagnosis code on the main switch indicator.

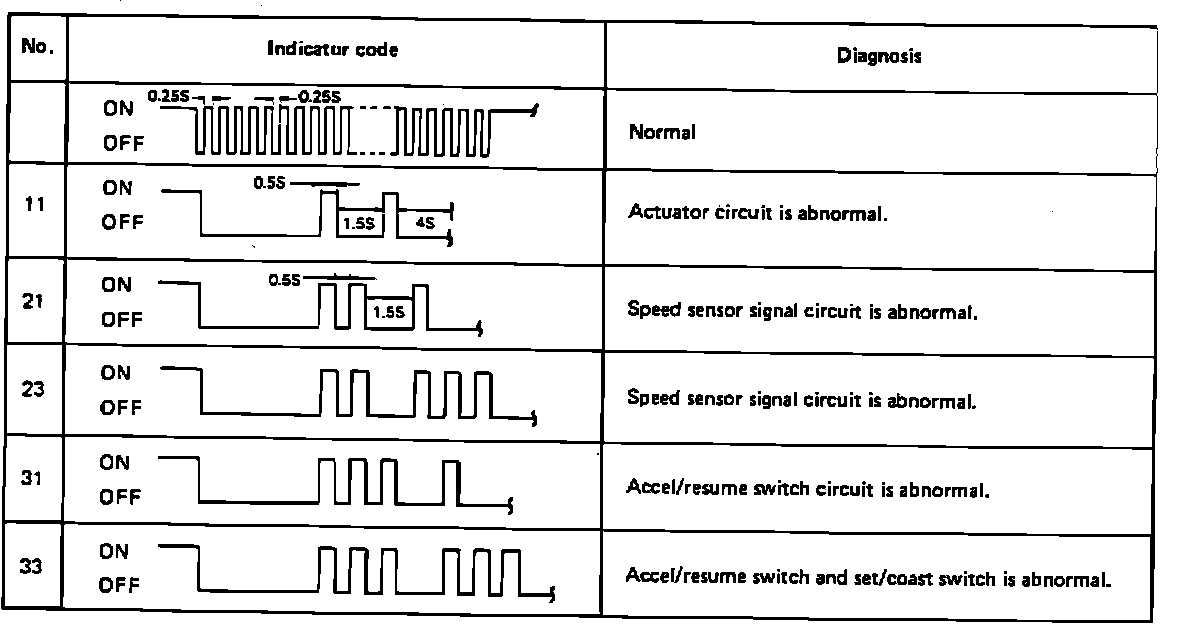

NOTE: ^ Indication codes appear with propriety from No. 11.
^ Normal code continues 20 seconds and abnormal codes are repeated three times.
^ Indication is stopped when vehicle speed is over 16 km/h (10 mph) or main switch is turned off.
^ If there is no indication code, perform diagnosis and inspection. (See page 10)

INSPECT DIAGNOSIS CIRCUIT:

Inspect Diagnosis Circuit:

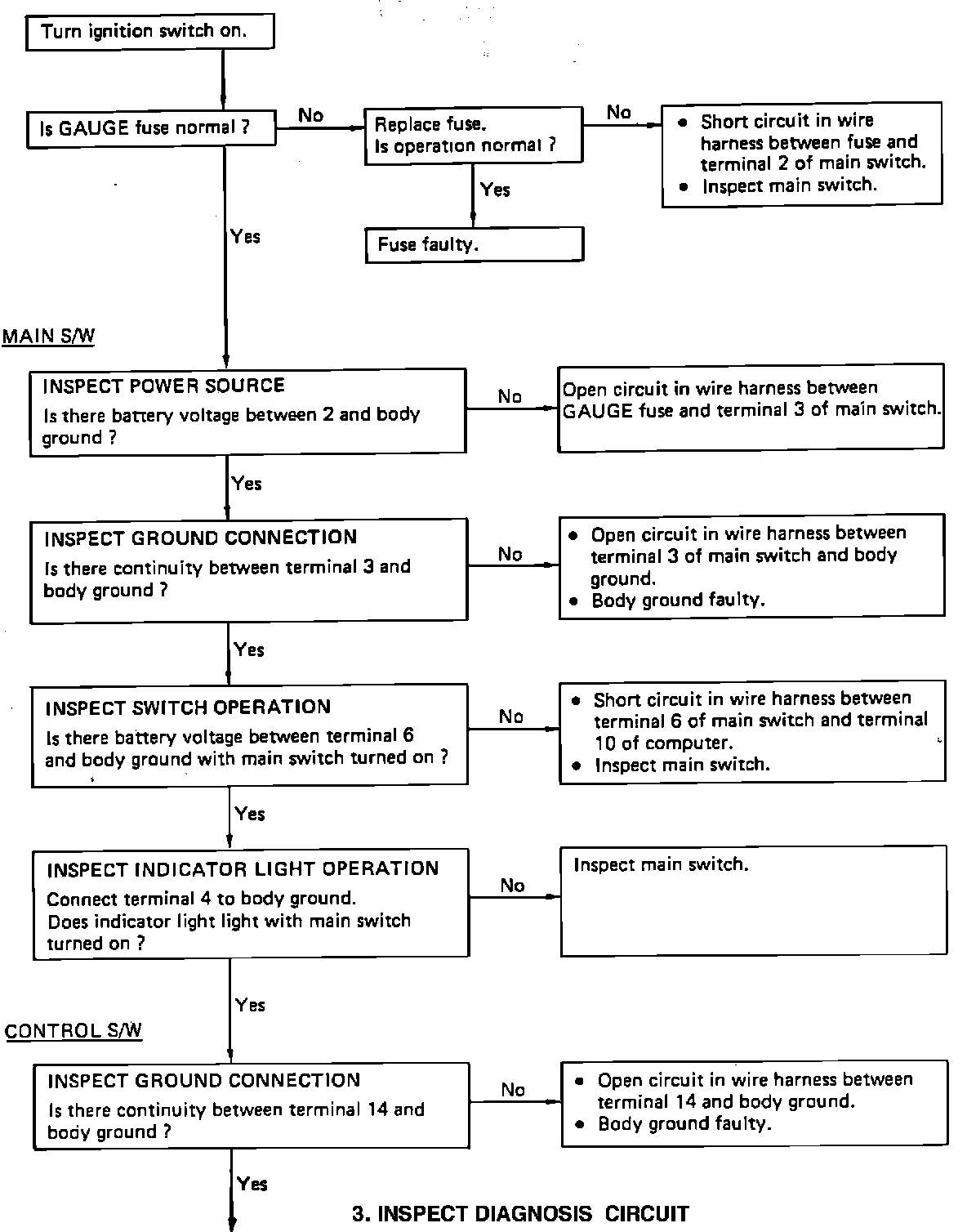

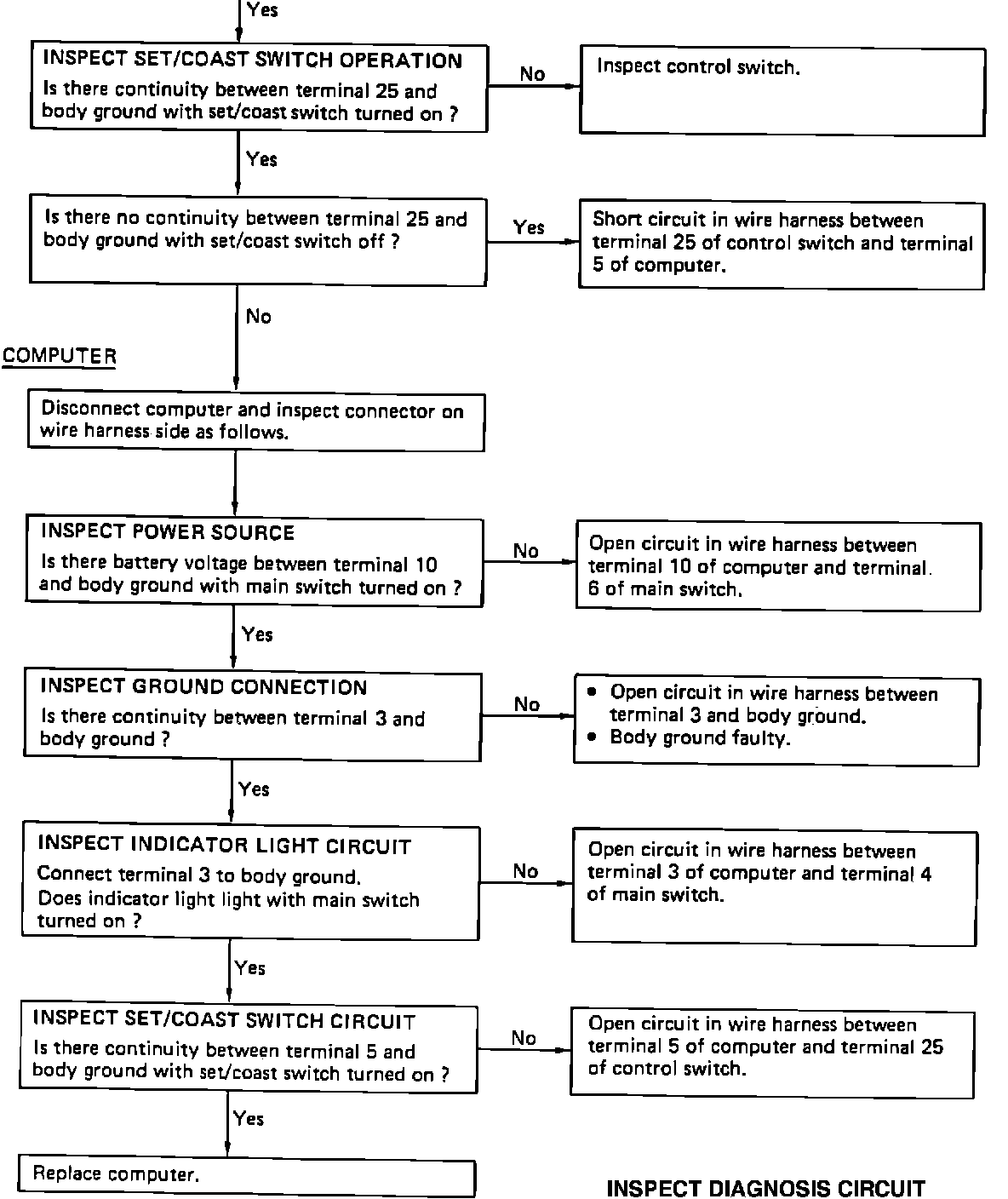

3. INSPECT DIAGNOSIS CIRCUIT
