Air Conditioning Switch: Testing and Inspection

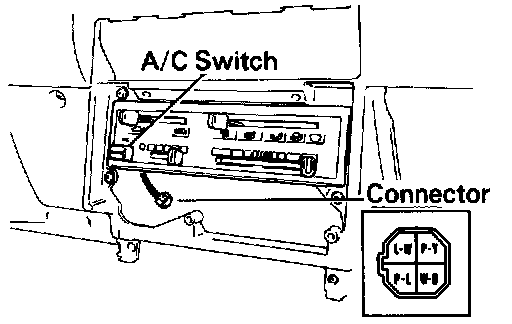

Connector Location And View:

1. Disconnect negative cable from battery.
2. Remove center cluster.
3. Disconnect A/C switch connector.

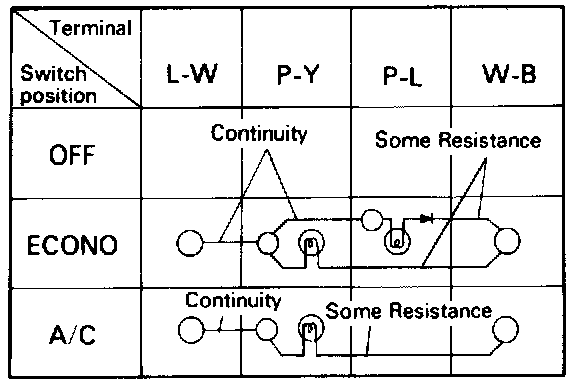

4. Using an ohmmeter, check continuity between the terminals for each switch position shown in the table.
5. If there is no continuity, replace the A/C switch.
6. Connect A/C switch connector.
7. Install center cluster.
8. Connect negative cable to battery.
