Blower Motor Resistor: Testing and Inspection
Heater Blower Resistor Testing:
1.
Using a suitable ohmmeter, measure resistance of terminals as shown,

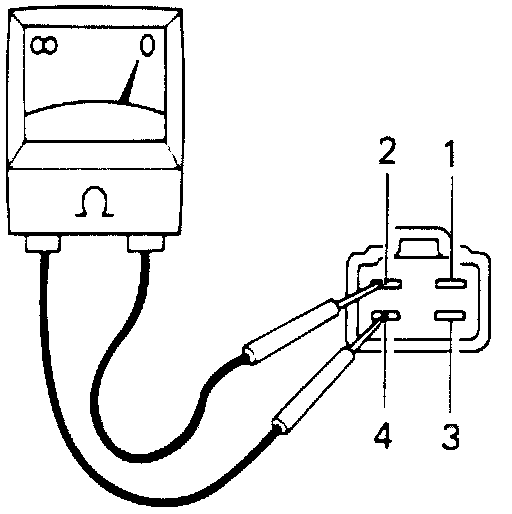

Fig. 22.Fig. 22 Heater blower resistor.:
2.
If resistance values are not as specified, replace blower resistor.
