Condenser Fan: Testing and Inspection






Inspection Of Fusible Link
1. Disconnect negative cable from battery.
2. Disconnect fusible link.
3. Using an ohmmeter, check continuity of the fusible link. if there is no continuity, replace the fusible link.
4. Connect fusible link.
5. Connect negative cable to battery.

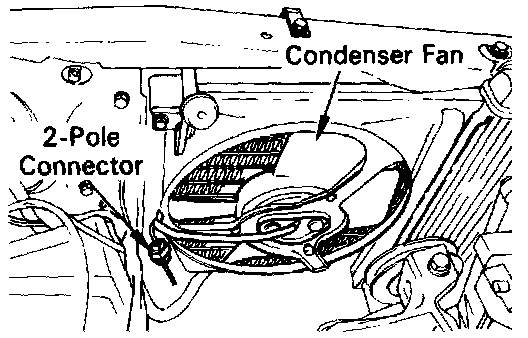

Inspection Of Condenser Fan Motor
1. Disconnect negative cable from battery.
2. Disconnect connector of fan motor.
3. Apply 12v battery voltage to the connector using the wire harness.
4. Confirm smooth rotation of the motor within the specified current flow.

Standard current: 6.0-7.4 amps (2400-3000 rpm)

5. If defective, replace the motor.
6. Connect connector of fan motor.
7. Connect negative cable to battery.
