Control Assembly: Adjustments

Adjustment Of Heater Control.

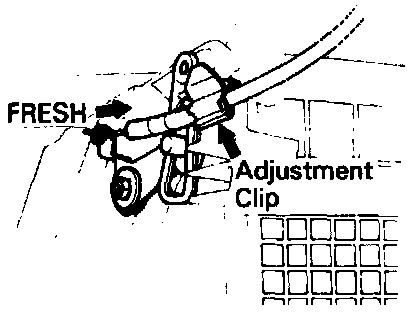

1. Adjust the air inlet damper. Set the air damper and control lever to FRESH.

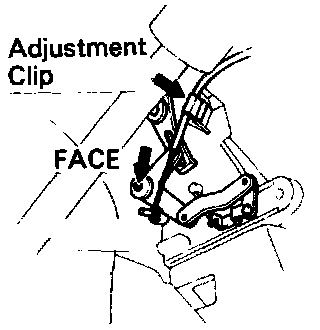

2. Adjust the mode selector damper. Set the mode selector and control lever to FACE.




3. Adjust the air mix damper. Set the air mix damper and control lever to COOL.

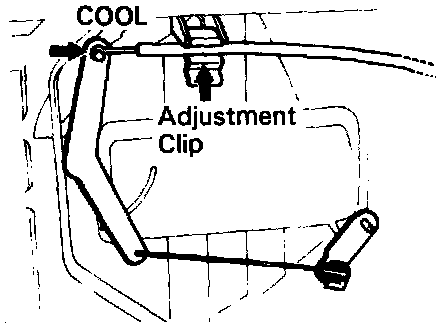

4. Adjust the water valve. Set the water valve and control lever to COOL.

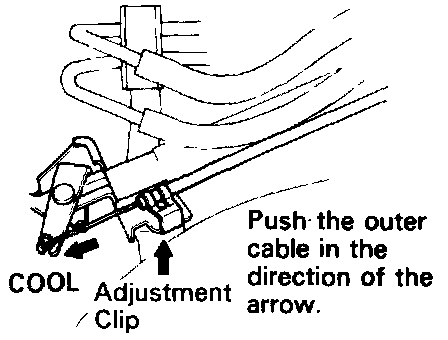

NOTE: Place the water valve lever on COOL and while pushing the outer cable in the COOL direction, clamp the outer cable to the water valve bracket.
